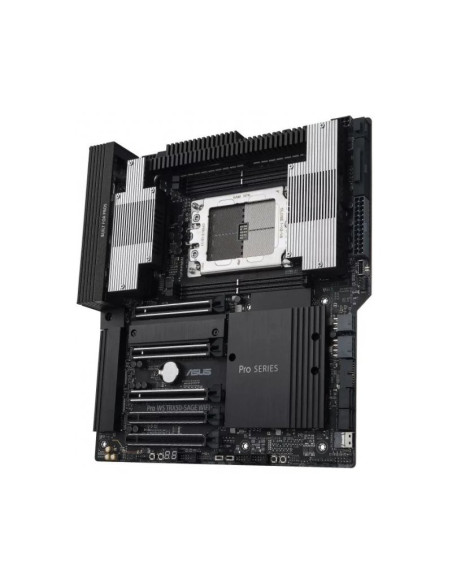

Asus Pro WS TRX50-SAGE WiFi CEB AMD Socket sTR5

Procesador

• AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors

Chipset

• AMD TRX50 Chipset

Memoria

• 4 x DIMM slots, DDR5, ECC Registered Memory
• 4 Channel Memory Architecture

Slots

• 2 x PCIe 5.0 x16 slots
• 1 x PCIe 5.0 x16 slot(x8 mode)
• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 4.0 x16 slot(x4 mode)

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset
• M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device

USB

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A )
• 2 x USB 2.0 ports (2 x Type-A )
• 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
• 1 x USB 5Gbps header supports 2 additional USB 5G ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC1220P Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback

Conectividad y redes

• 1 x Marvell® AQtion 10Gb Ethernet
• 1 x Intel® I226-LM 2.5Gb Ethernet
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x W_PUMP+ header
• 4 x 4-pin Chassis Fan headers
• 2 x 4-pin VRM Fan header (with VRM FAN onboard)
• 2 x 24-pin Main Power connectors
• 2 x 8-pin +12V Power connectors
• 2 x 8-pin PCIe to CPU power connectors
• 1 x 6-pin PCIe Power connector
• 1 x 8-pin PCIe Power connector
• 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
• 1 x SlimSAS port
• 1 x USB 20Gbps connector supports USB Type-C®
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x BMC header1 x COM Port header
• 1 x USB4 header1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x Start button
• 1 x Safe boot button
• 1 x ReTry button1 x LN2 mode jumper
• 1 x Slow mode switch
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin system panel header
• 1 x Chassis intrusion header
• 1 x Thermal Sensor header

Conectores Traseros

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 6 x USB 10Gbps ports (6 x Type-A)
• 2 x USB 2.0 port (2 x Type-A)
• 1 x Wi-Fi Module
• 1 x Marvell® AQtion 10Gb Ethernet port
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• CEB (30.5 cm x 28.0 cm)

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-trx50-sage-wifi/techspec/
