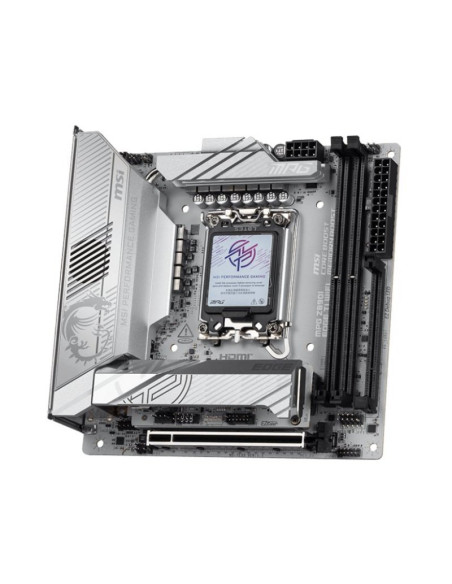

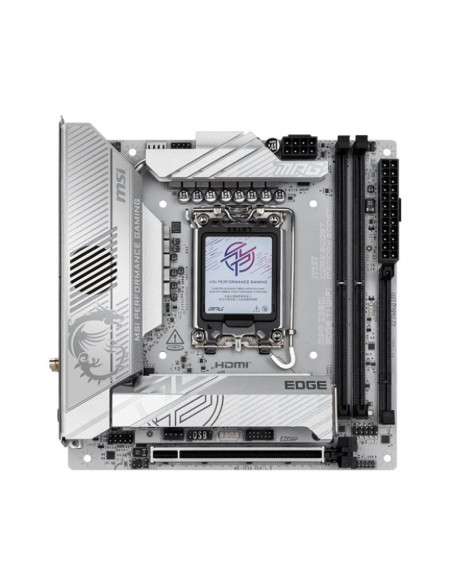

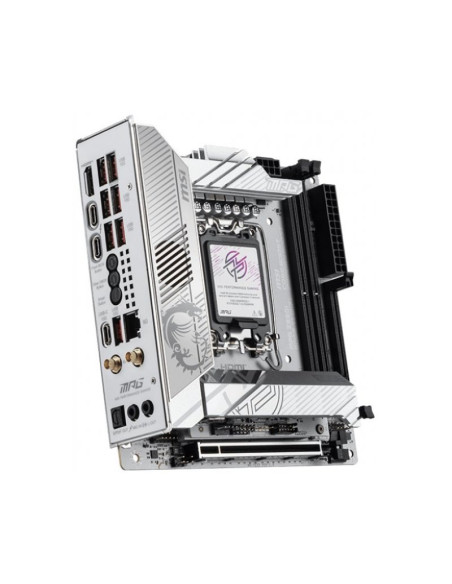

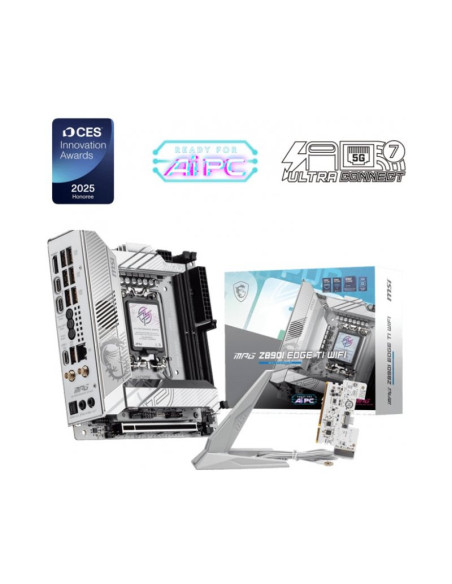

MSI MPG Z890I Edge Ti WiFi Mini-ITX Intel Socket 1851

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Chipset

• Intel Z890

Memoria

• 2x DDR5, Maximum Memory Capacity 128GB
• Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Supports Intel POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Slots

• 1x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Gráficos

• 1 x HDMI™
• 2 x Type-C DisplayPort
• ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz

Almacenamiento

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
• 2x SATA 6G
• Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
• Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices

USB

• 2 x USB 2.0 (Front)
• 2 x USB 5Gbps Type A (Front)
• 7 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Rear)
• 1 x USB 20Gbps Type C (Front)

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-bit/384kHz playback on front panel
• Supports S/PDIF output

Conectividad y redes

• 1 x Intel® Killer™ E5000B 5G LAN
• Intel® Killer™ BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 1 x Power Connector(CPU_PWR)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 1 x System Fan
• 1 x EZ Conn-header (JAF_2)
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Thermal Sensor connectors(T_SEN)
• 1 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x TPM pin header(Support TPM 2.0)
• 2 x USB 2.0 ports
• 2 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports

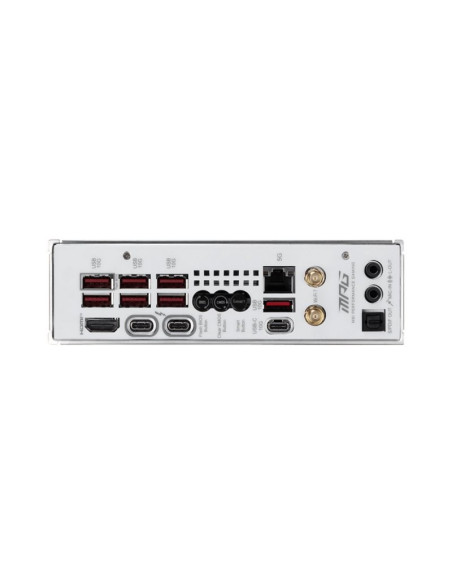

Conectores Traseros

• 1 x HDMI
• 2 x Thunderbolt 4 Tipo C
• 7 x USB Tipo A (10Gbps)
• 1 x USB Tipo C (10Gbps)
• 1 x Ethernet (5GbE)
• 2 x Antena WiFi (WiFi / Bluetooth)
• 1 x S/PDIF
• 2 x Jack 3.5mm

Factor de forma

• Mini-ITX (170x170mm)
