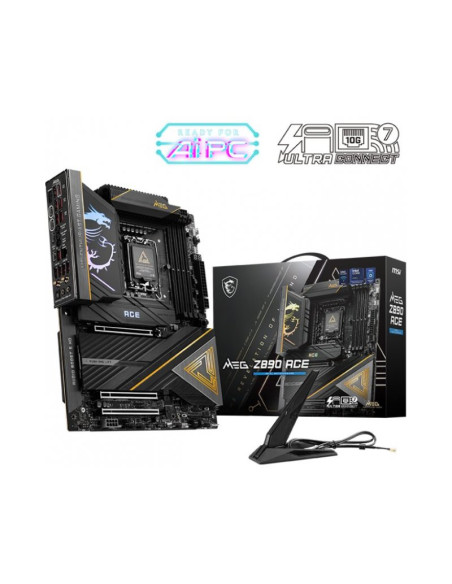

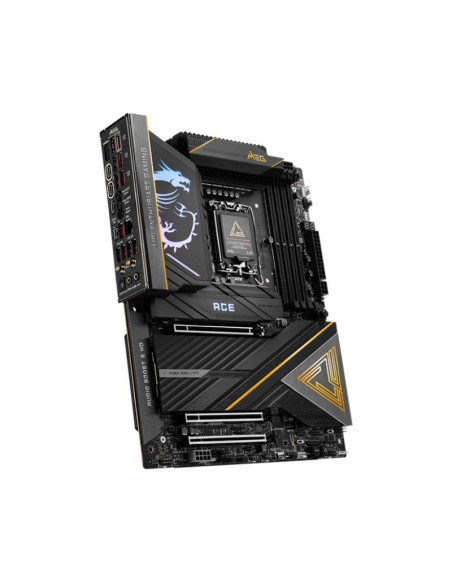

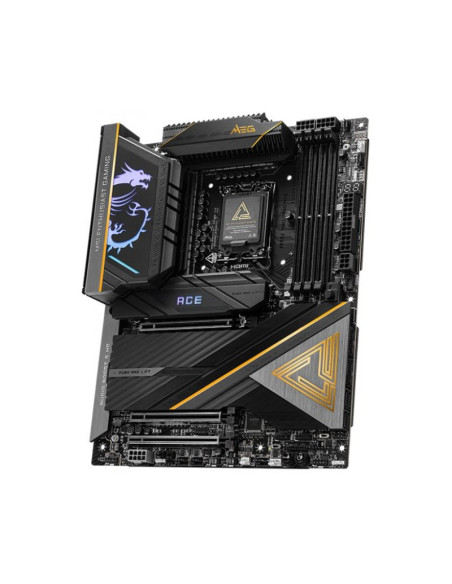

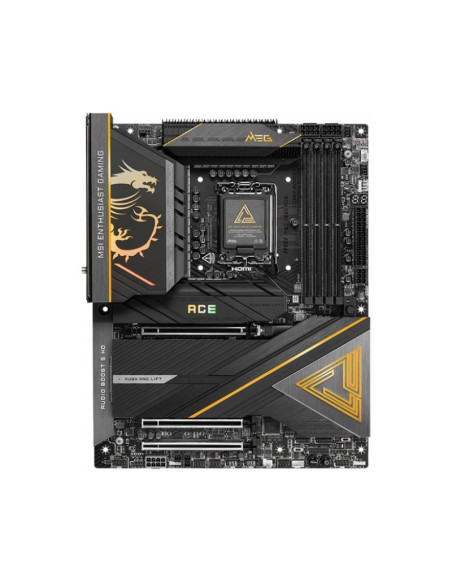

MSI MEG Z890 ACE ATX Intel Socket 1851

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Chipset

• Intel Z890

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Slots

• 3x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

Gráficos

• 1 x HDMI™
• 2 x Type-C DisplayPort

Almacenamiento

• 5 x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
• 4 x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 4 x USB 2.0 (Front)
• 4 x USB 5Gbps Type A (Front)
• 11 x USB 10Gbps Type A (Rear)
• 2 x USB 10Gbps Type C (Rear)
• 1 x USB 20Gbps Type C (Front)

Audio

• Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
• 7.1-Channel USB High-Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

Conectividad y redes

• 1x Marvell® AQC113CS 10Gbps LAN
• Intel® Killer™ BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x Front Type-C Quick Charge Connector(PD_PWR1)
• 1x CPU Fan
• 2x Combo Fan (Pump_Sys Fan)
• 5x System Fan
• 1x EZ Conn-header (JAF_2)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Water Flow connector
• 1x Slow Mode Booting Jumper(JSLOW)
• 1x Front Audio (JAUD)
• 2x Thermal Sensor connectors(T_SEN)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• V-check point
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 20Gbps Type C ports

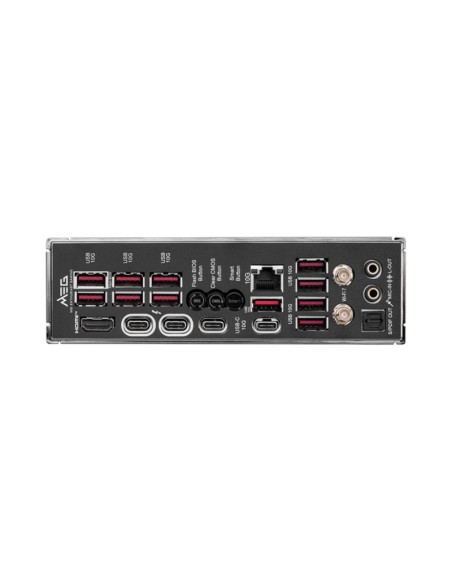

Conectores Traseros

• 1 x HDMI 2.1
• 2 x ThunderBolt 4 Tipo C (40 Gbps)
• 11 x USB Tipo A (10 Gbps)
• 2 x USB Tipo C (10 Gbps)
• 1 x Ethernet 10GbE
• 2 x Antena WiFi / Bluetooth
• 1 x S/PDIF
• 2 x Jack 3.5mm

Factor de forma

• ATX (243.84 x 304.8mm)
