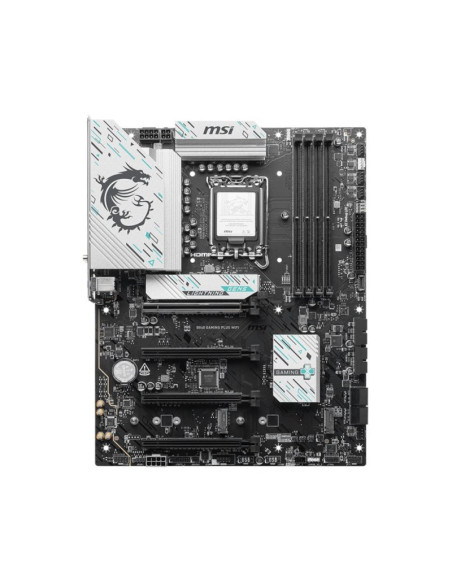

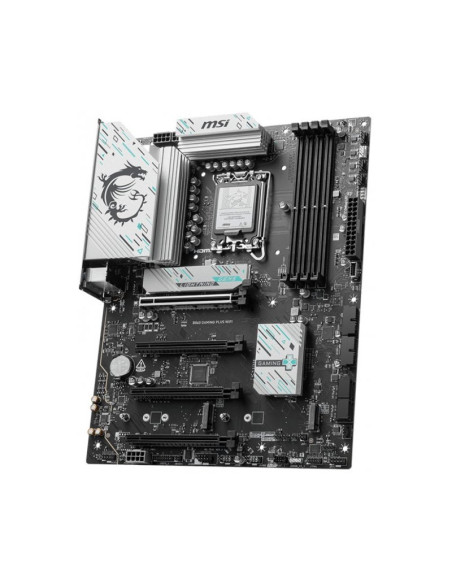

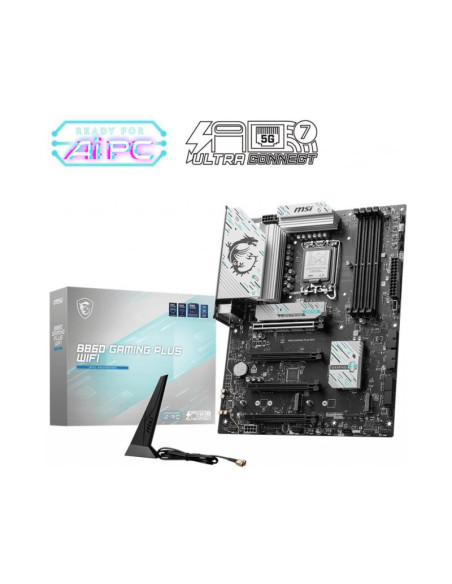

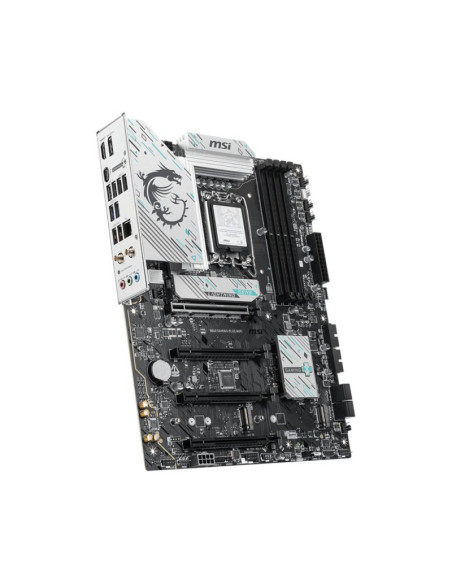

MSI B860 Gaming Plus WiFi ATX Intel Socket 1851

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2)
• LGA 1851

Chipset

• INTEL B860

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Slots

• 4x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)

Gráficos

• 1x HDMI™
• Support HDMI™ 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort
• Support DisplayPort 1.4, maximum resolution of 4K 60Hz
• 1x Type-C DisplayPort

Almacenamiento

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• 4x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 2x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 2x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 1x Thunderbolt4 ports (Rear)
• Supports up to 40Gbps transfer rate with Thunderbolt devices
• Supports up to 20Gbps transfer rate with USB4 devices
• Supports up to 10Gbps transfer rate with USB 3.2 devices
• Supports up to 5V/3A,15W power charging
• Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
• Supports up to 8K display

Audio

• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio

Conectividad y redes

• Intel® Killer™ E5000 5Gbps LAN
• Intel® Killer™ BE1750x Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4**, MLO, 4KQAM

Conectores Internos

• 1x Thunderbolt5 card connector(JTBT5, support RTD3)
• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 4x System Fan
• 1x EZ Conn-header (JAF_1)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 10Gbps Type C ports

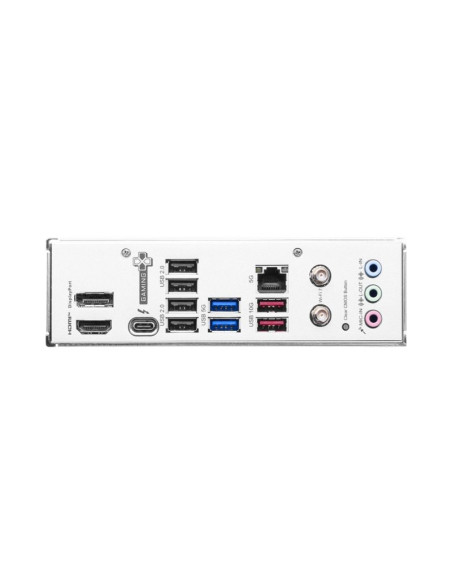

Conectores Traseros

• Display Port
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio Connectors
• HDMI™
• Thunderbolt™ 4 40Gbps (Type-C)
• USB 5Gbps (Type-A)
• USB 10Gbps (Type-A)
• Clear CMOS Button

Factor de forma

• ATX
• 243.84mmx304.8mm

Más información en la web del fabricante:

• https://www.msi.com/Motherboard/B860-GAMING-PLUS-WIFI/Specification
