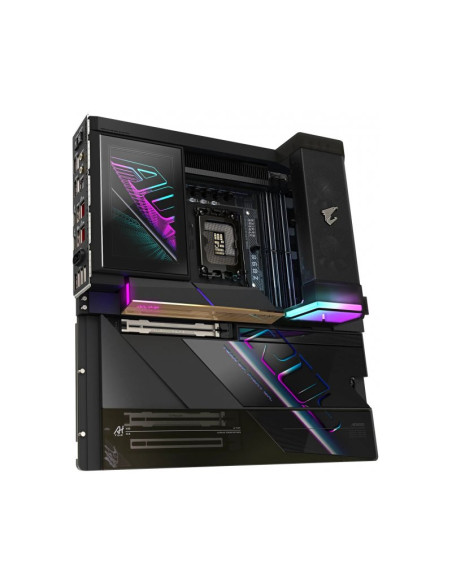

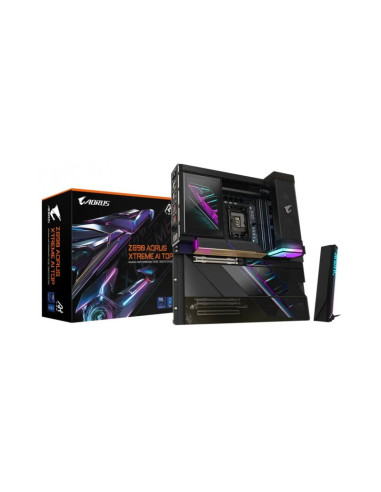

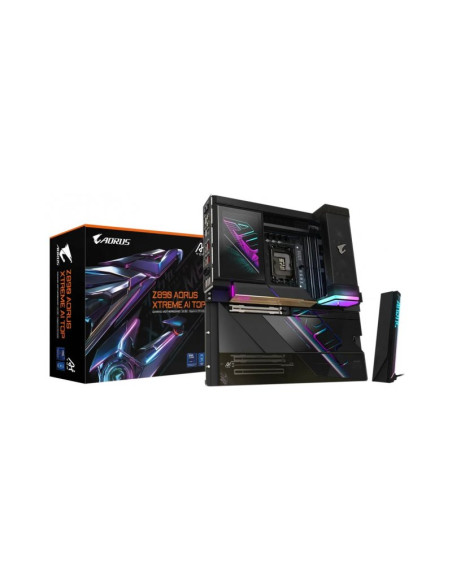

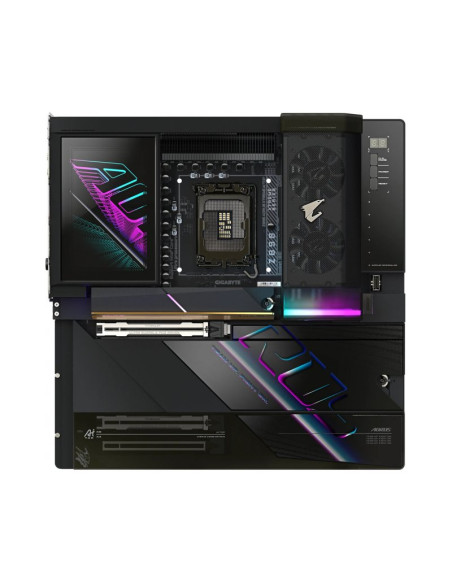

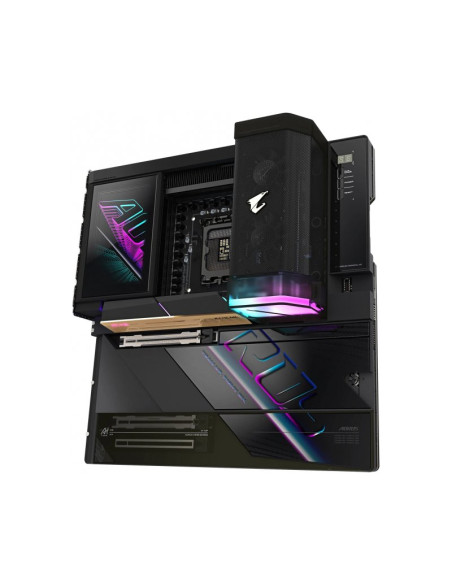

Gigabyte Z890 AORUS Xtreme AI TOP ATX Intel Socket 1851

Procesador

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU

Chipset

• Intel® Z890 Express Chipset

Memoria

• Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules
• Support CUDIMM memory module

Slots

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)
• Chipset:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Gráficos

• ntegrated Graphics Processor+Intel® Thunderbolt™ 5 Controller:
• - 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680x4320@60 Hz (single display output)
• Integrated Graphics Processor-Intel® HD Graphics support:
• - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs
• When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).
• When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

Almacenamiento

• CPU:
• - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB)
• - 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• Chipset+Intel® Thunderbolt™ 5 Controller:
• - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel
• CPU:
• - 1 x USB4® USB Type-C® port onboard
• - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• Chipset:
• - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset+1 USB 3.2 Gen 2 Hub:
• - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset+1 USB 3.2 Gen 1 Hub:
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• Chipset+1 USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• 1 ESS ES9280AC DAC chip+2 ESS ES9080 chips
• DTS® Sound Unbound™
• High Definition Audio
• 2-channel
• Support for S/PDIF Out

Conectividad y redes

• 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps)
• Intel® Wi-Fi 7 BE200NGW
• - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• - BLUETOOTH 5.4
• - Support for 11be 320MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan extension cable header (can extend three system fan headers through one cable)
• 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
• 1 x noise detection header
• 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable)
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x Thunderbolt™ 4 (Note) connector (USB4® USB Type-C® port)
• 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
• 1 x power button
• 1 x reset button
• 1 x Clear CMOS button
• 2 x temperature sensor headers

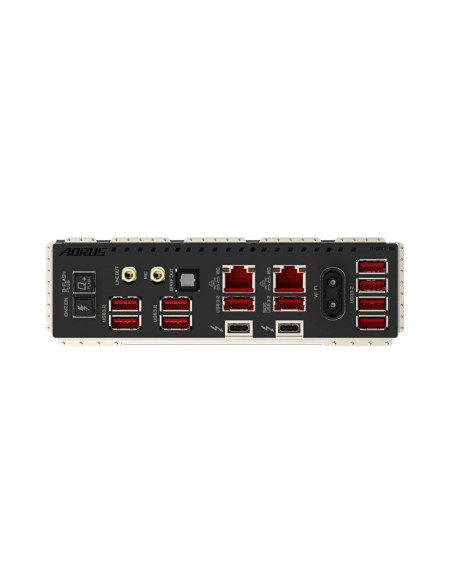

Conectores Traseros

• 1 x Q-Flash Plus button
• 1 x OC Ignition button
• 2 x Intel® Thunderbolt™ 5(Note) connectors (USB Type-C® ports)
• 10 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x RJ-45 ports
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

Factor de forma

• E-ATX Form Factor; 30.48cm x 30.5cm

Más información en la web del fabricante:

• https://www.gigabyte.com/es/Motherboard/Z890-AORUS-XTREME-AI-TOP/sp#sp
