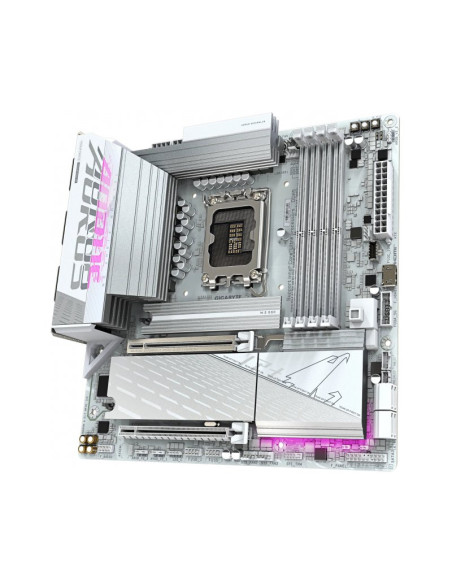

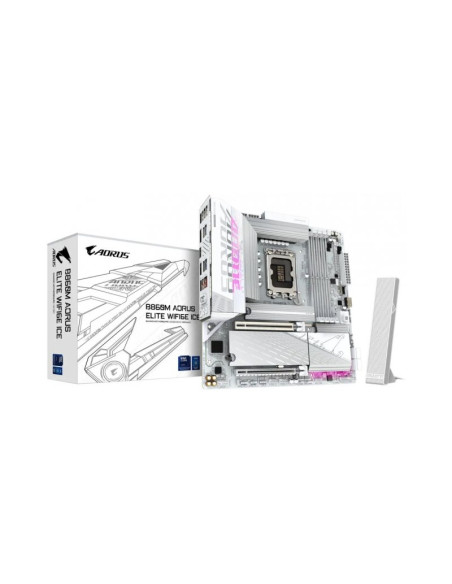

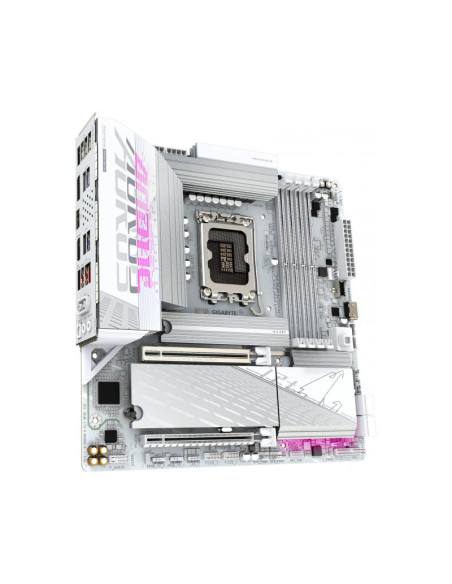

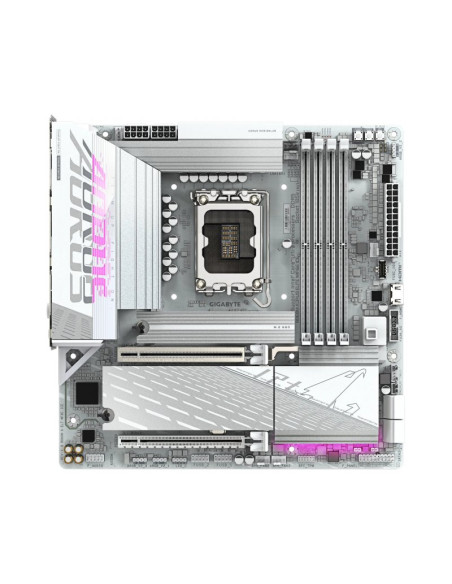

Gigabyte B860M AORUS Elite WIFI6E ICE Micro-ATX Intel Socket 1851

Procesador

• LGA1851 socket: Support for Intel ® Core™ Ultra Processors
• L3 cache varies with CPU

Chipset

• Intel ® B860 Express Chipset

Memoria

• Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Gráficos

• 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Support for up to quad-display at the same time

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• 1 x USB4® USB Type-C® port on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 3.2 Gen 1 ports on the back panel
• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port
• 1 x power button
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

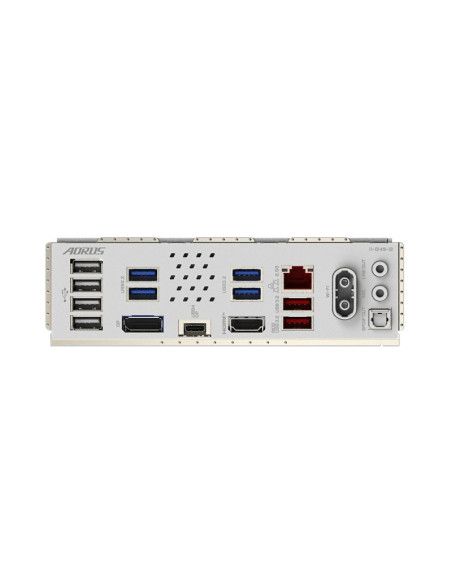

Conectores Traseros

• 4 x USB 2.0/1.1 ports
• 4 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x USB4® USB Type-C® port (DisplayPort*)
• 1 x HDMI port
• 1 x RJ-45 port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x antenna connectors (2T2R)
• 2 x audio jacks
• 1 x optical S/PDIF Out connector

Factor de forma

• Micro ATX (24.4 x 24.4cm)
