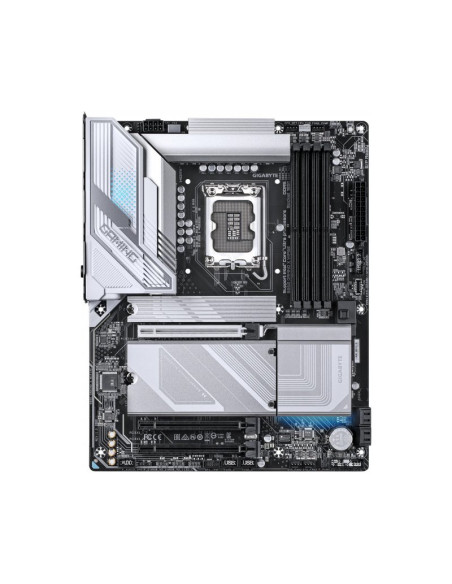

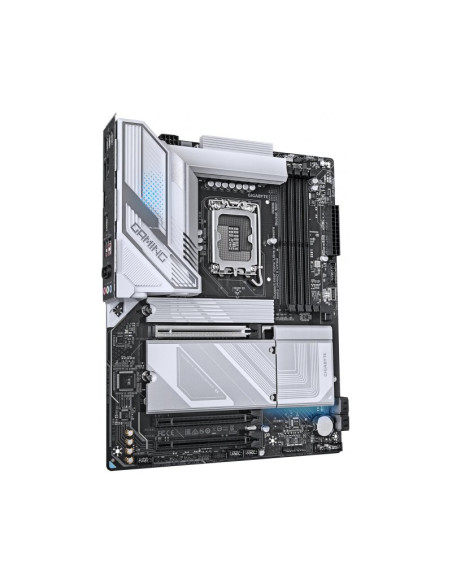

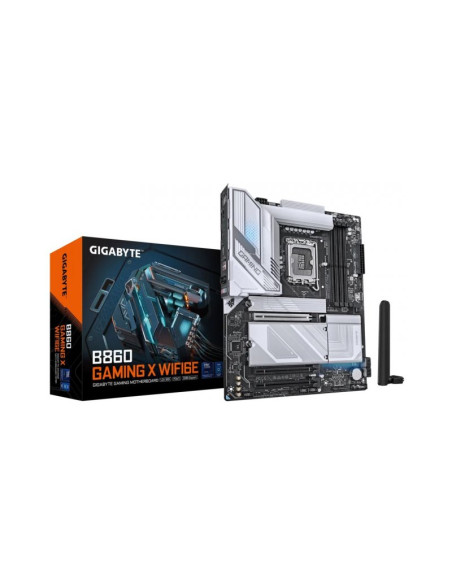

Gigabyte B860 Gaming X WIFI6E ATX Intel Socket 1851

Procesador

• LGA1851 socket
• Support for Intel ® Core™ Ultra Processors

Chipset

• Intel ® B860 Express Chipset

Memoria

• Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1,PCIEX1_2)

Gráficos

• 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• Support for up to triple-display at the same time

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• 1 x USB4® USB Type-C® port on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 9 x USB 2.0/1.1 ports (5 ports on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Intel ® Wi-Fi 6E AX211 (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

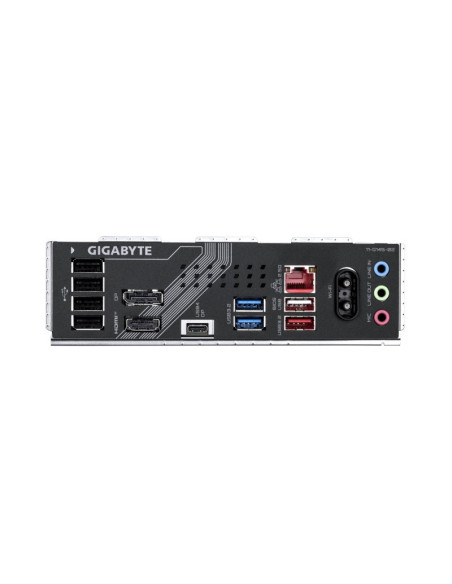

Conectores Traseros

• 1 x HDMI port (Note)
• 1 x DisplayPort (Note)
• 1 x USB4® USB Type-C® port (DisplayPort (Note))
• 2 x USB 3.2 Gen 1 ports
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 5 x USB 2.0/1.1 ports
• 2 x antenna connectors (2T2R)
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• ATX (30.5 x 24.4cm)
