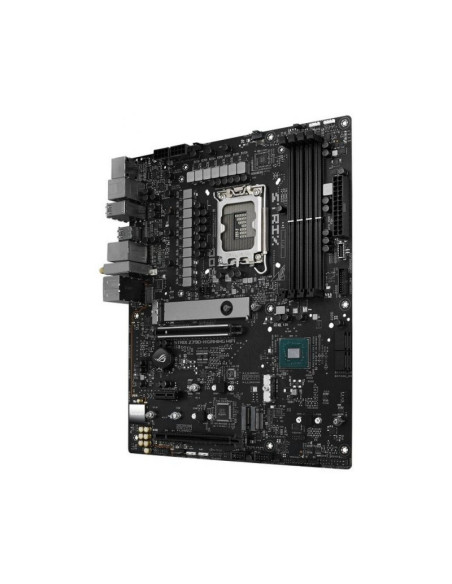

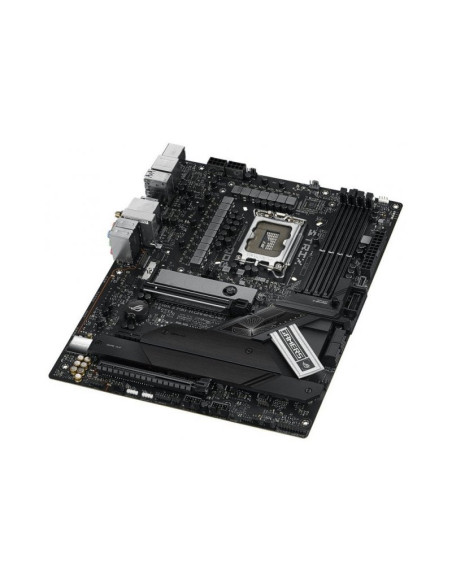

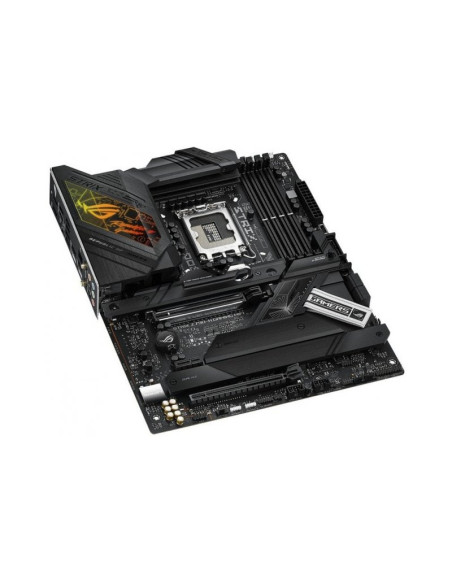

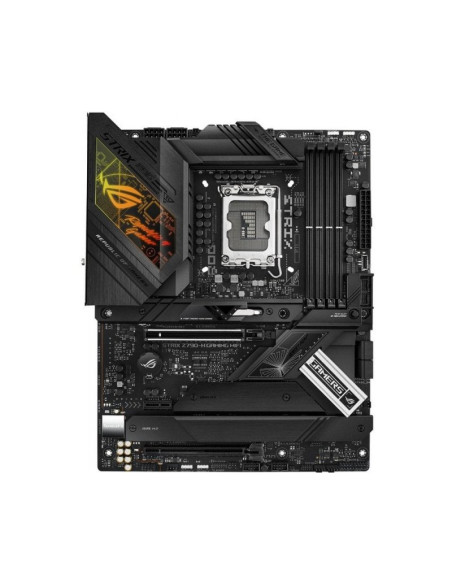

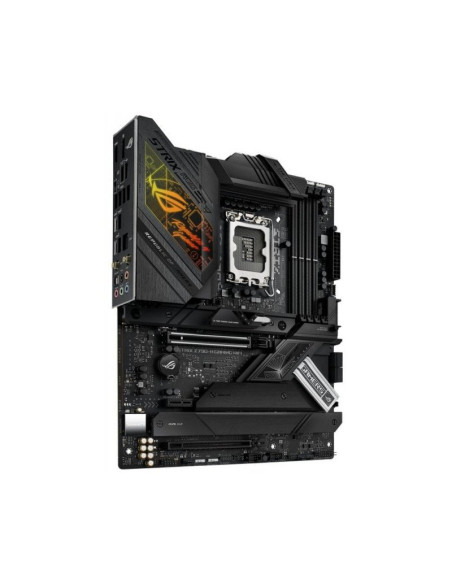

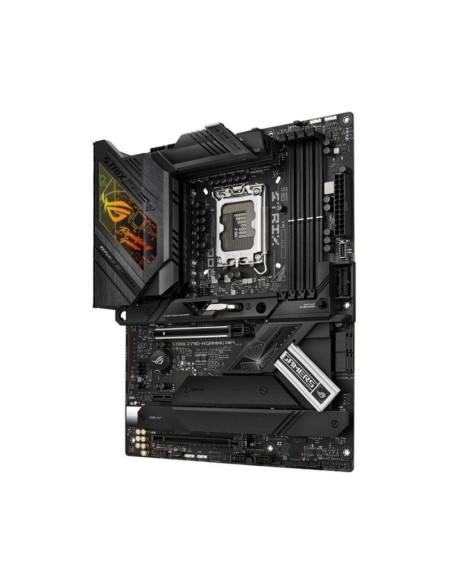

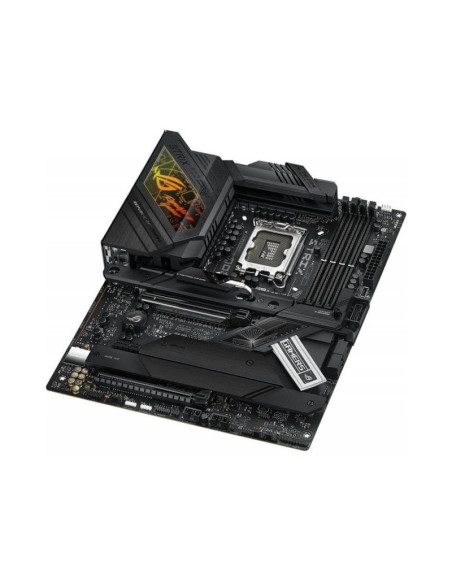

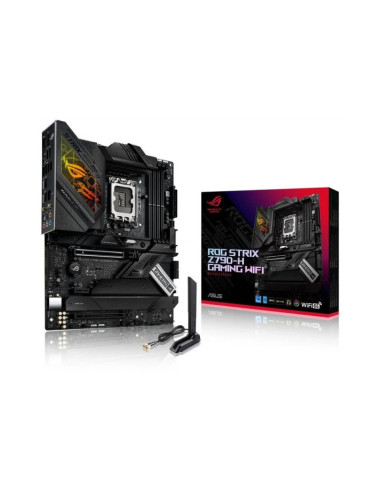

Asus ROG Strix Z890-H Gaming WiFi ATX Intel Socket 1851

Procesador

• Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel Z890

Memoria

• 4 ranuras DIMM, max. 256GB, DDR5
• Admite hasta 9066+MT/s (OC), DIMM sin ECC, sin búfer y con reloj sin búfer (CUDIMM).
• Arquitectura de memoria de doble canal
• Admite módulo de memoria Intel ® Extreme Memory Profile (XMP)
• Admite DIMM Flex
• Admite DIMM Fit
• ASUS Enhanced Memory Profile III (AEMP III)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• 2 x PCIe 4.0 x16 slots (supports x4 mode)

Gráficos

• 1 x DisplayPort
• 1 x HDMI

Almacenamiento

• Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 20Gbps (1 x USB Type-C®)
• 1 x USB 5Gbps header support 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

Conectividad y redes

• 1 x Realtek 5G Ethernet
• ASUS LANGuard

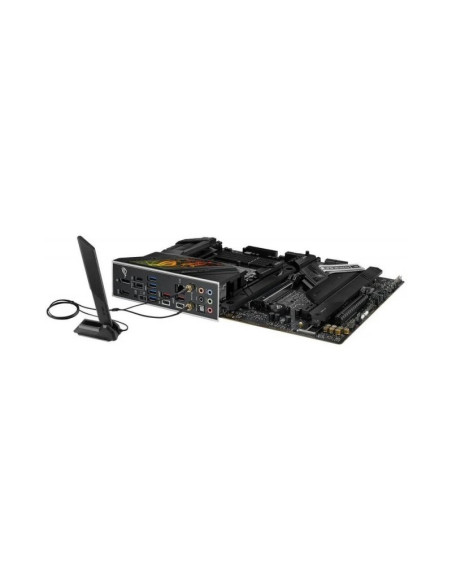

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header support 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Chassis Intrusion header
• 1 x CPU Over voltage jumper
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Start button
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

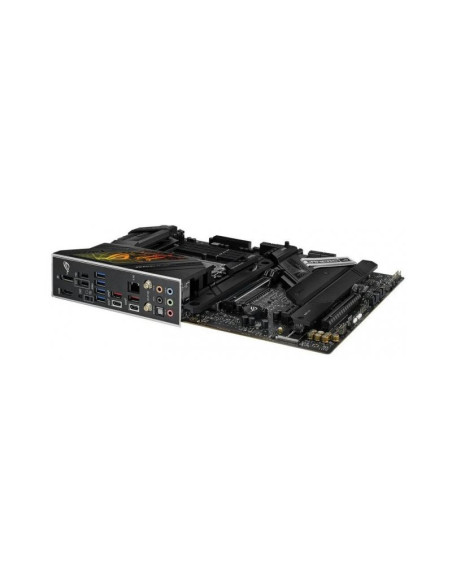

Conectores Traseros

• 2 x USB 20Gbps ports (1 x USB Type-C®* + 1 x USB Type-C® with up to 30W)
• 4 x USB 10Gbps ports (4 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
