Asus ROG Strix B860-I Gaming WiFi Mini-ITX Intel Socket 1851

Procesador

• Intel Core Ultra (Serie 2)
• LGA1851

Chipset

• Intel B860

Memoria

• 2 ranuras DIMM, max. 128GB, DDR5
• Admite hasta 9066+MT/s (OC), DIMM sin ECC, sin búfer y con reloj sin búfer (CUDIMM)
• Arquitectura de memoria de doble canal
• Admite módulo de memoria Intel ® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III (AEMP III)

Slots

• 1 x PCIe 5.0 x16 slot

Gráficos

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x Intel® Thunderbolt™ 4

Almacenamiento

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High
• Definition Audio CODEC*
• Impedance sense for front and rear
• headphone outputs
• Internal audio Amplifier to enhance the
• highest quality sound for headphone and speakers
• Supports: Jack-detection,
• Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback
• output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz
• playback*"
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 1 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 2 x Addressable Gen2 headers
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

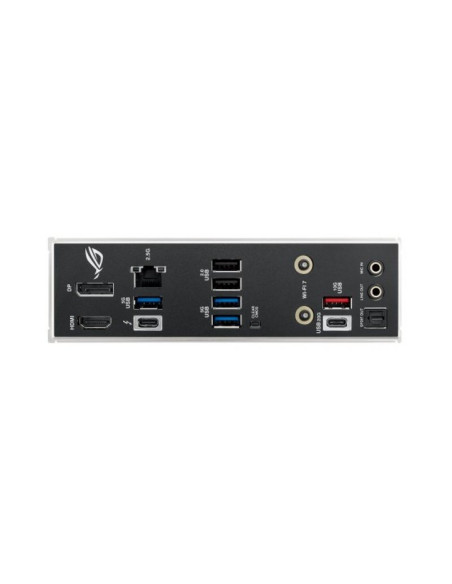

Conectores Traseros

• 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x Clear CMOS button

Factor de forma

• Mini-ITX ( 17 cm x 17 cm )
