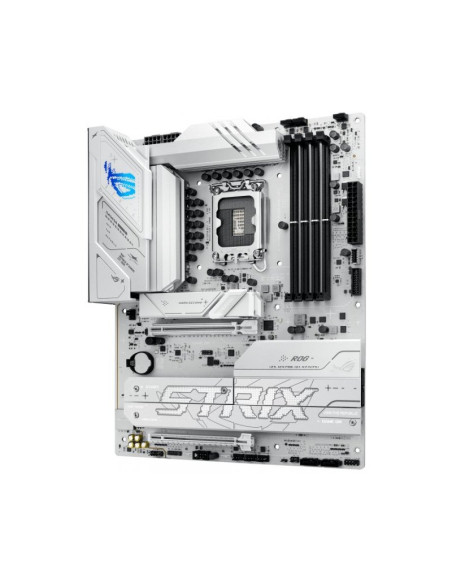

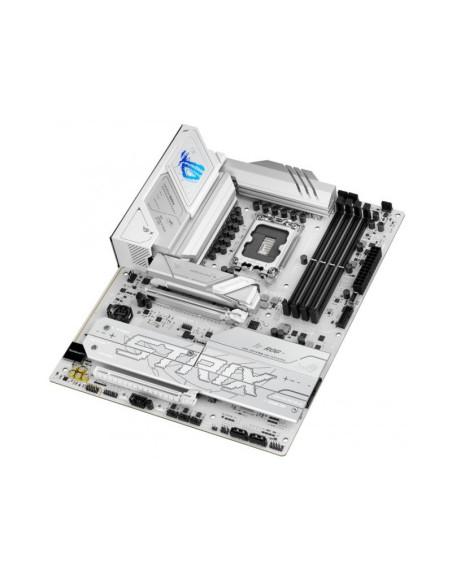

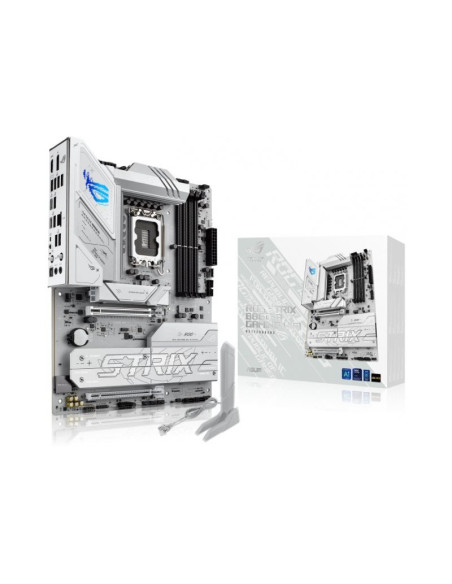

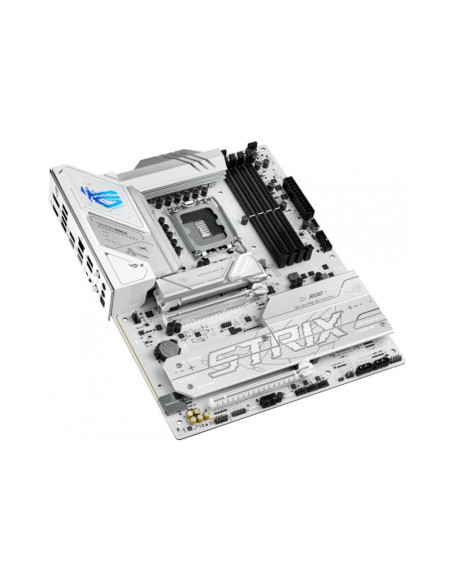

Asus ROG Strix B860-A Gaming WiFi ATX Intel Socket 1851

Procesador

• Intel Core Ultra (Serie 2)
• LGA1851

Chipset

• Intel B860

Memoria

• 4 ranuras DIMM, max. 256GB, DDR5
• Admite hasta 8600+MT/s (OC), DIMM sin ECC, sin búfer y con reloj sin búfer (CUDIMM)
• Arquitectura de memoria de doble canal
•  Admite DIMM Fit
• Admite módulo de memoria Intel ® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)

Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)*

Gráficos

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x USB4® (20Gbps) ports support USB
• Type-C® display outputs

Almacenamiento

• Total supports 4 x M.2 slots and 4 x SATA
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports

USB

• 1 x USB4® (20Gbps) port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound
• High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 10Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 3 x Addressable Gen2 header(s)
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

Conectores Traseros

• 1 x USB4® (20Gbps) port (1 x USB Type-C®)
• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
