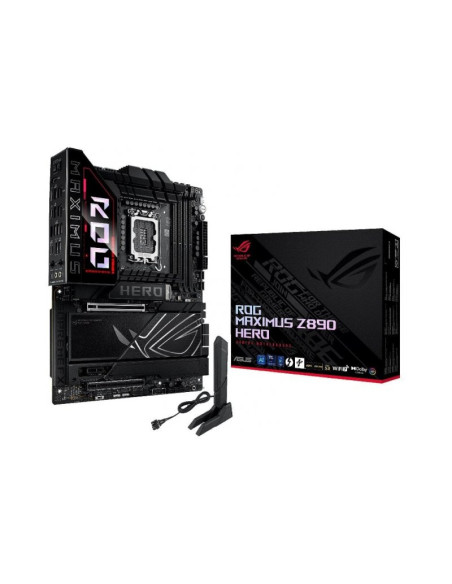

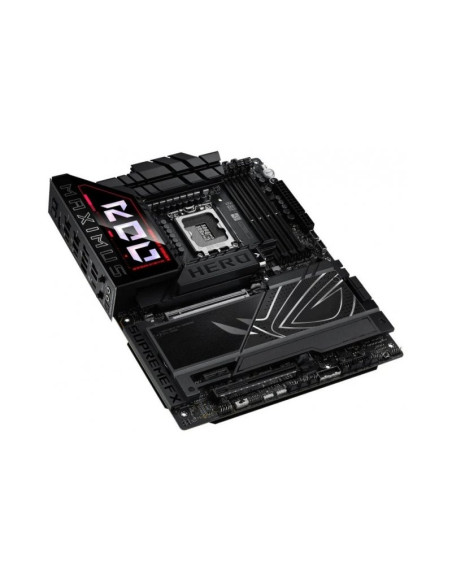

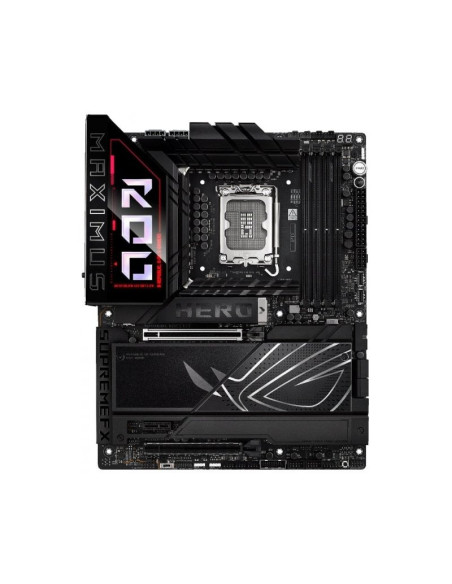

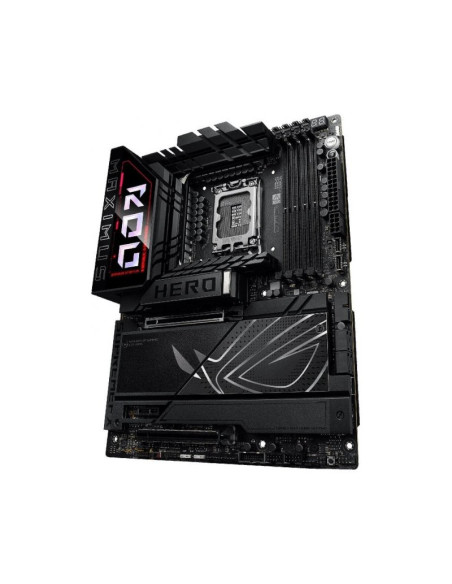

Asus ROG Maximus Z890 Hero ATX Intel Socket 1851

Procesador

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® Z890 Chipset

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• Supports DIMM Flex
• NitroPath DRAM Technology
• DIMM FIT
• ASUS Enhanced Memory Profile III (AEMP III)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot

Gráficos

• 1 x HDMI™ port
• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Almacenamiento

• Supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
• 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• USB Type-C® power delivery output: max. 5V/3A

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback on front panel
• SupremeFX Shielding Technology
• ESS® ES9219 QUAD DAC
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4***

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• 1 x 8-pin PCIe Power connector

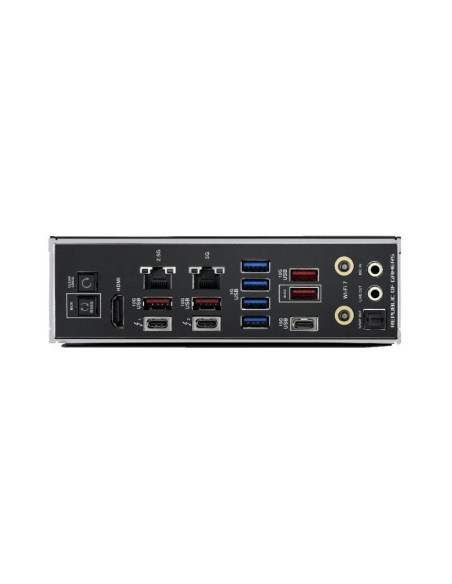

Conectores Traseros

• 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
• 6 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x SlimSAS connector
• 1 x USB 20Gbps connector (supports USB Type-C® )
• 1 x USB 10Gps connector (supports USB Type-C® )
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ (USB4®) header

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )
