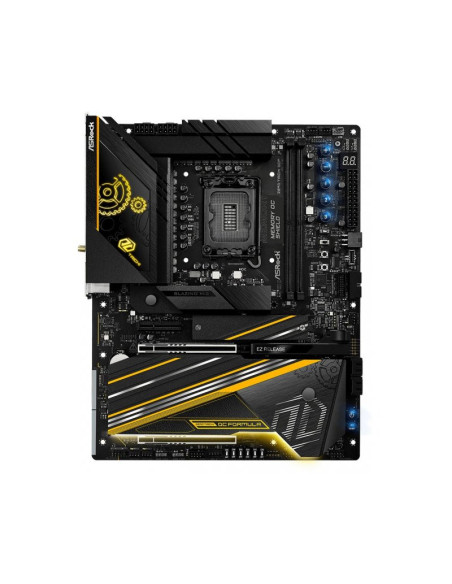

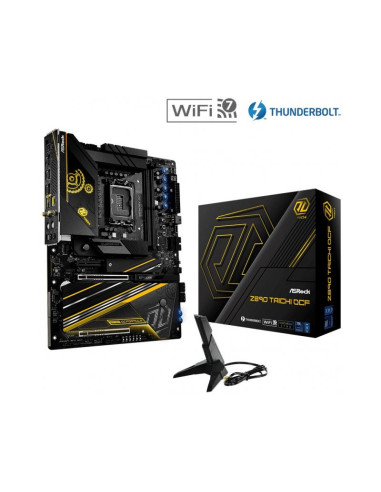

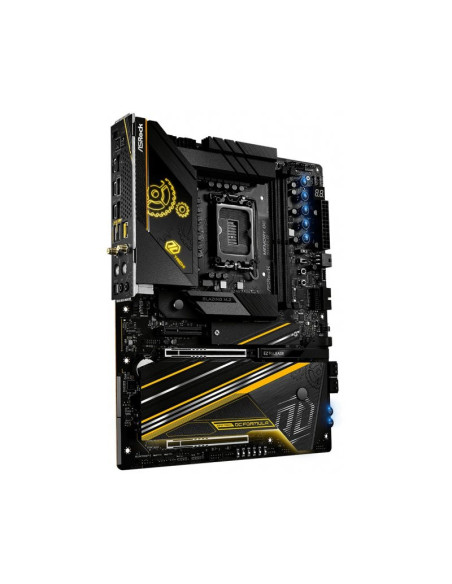

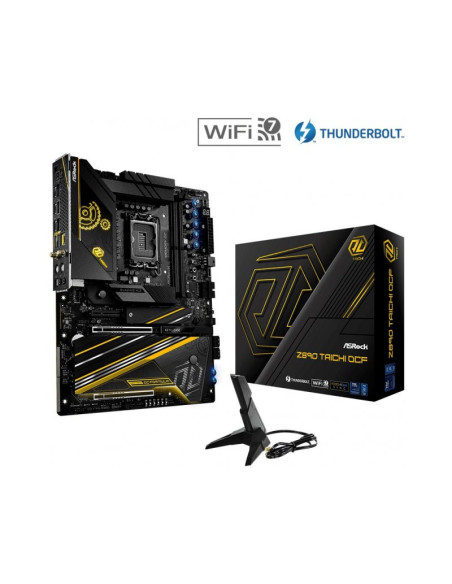

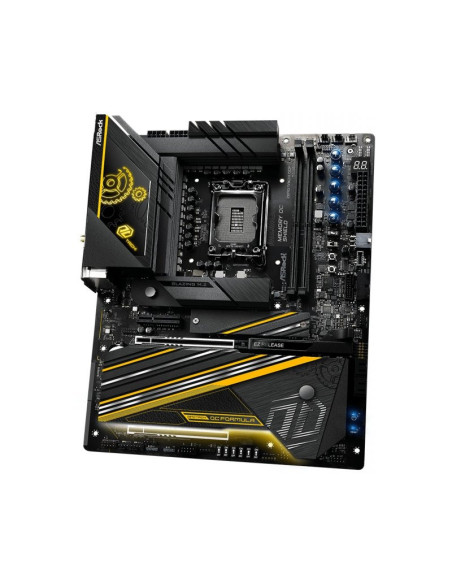

Asrock Z890 Taichi OCF ATX Intel Socket 1851

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration
• Supports ASRock Hyper BCLK Engine

Chipset

• Intel® Z890

Memoria

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 10133MHz+(OC)
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0x

Slots

• CPU
• 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode
• 1 x PCIe 5.0 x16 Slot (PCIE3), supports x8 mode
• Chipset
• 1 x PCIe 4.0 x4 Slot (PCIE1), supports x4 mode
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports AMD CrossFire™
• 15μ Gold Contact in VGA PCIe Slots (PCIE2 and PCIE3)

Gráficos

• Intel® Xe LPG Graphics Architecture
• 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Almacenamiento

• CPU
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• CPU
• 2 x Thunderbolt™ 4 Type-C (Rear)
• Chipset
• 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
• 4 x USB 3.2 Gen2 Type-A (Rear)
• 5 x USB 3.2 Gen1 (1 Rear, 4 Front)
• 3 x USB 2.0 (Front)

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• Nahimic Audio

Conectividad y redes

• 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
• Realtek RTL8126
• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 320MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

Conectores Internos

• 2 x Thermistor Cable Headers
• 1 x Power LED and Speaker Header
• 4 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Heater Header
• 1 x ElmorLabs OCP Header
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED
• 1 x Retry Button
• 1 x Safe Boot Button
• V-Probe™: 11-set of onboard voltage measurement points laid
• Rapid OC Buttons: +/- buttons to adjust OC frequency
• 6 x OC Switches
• 1 x Slow Mode Switch
• 1 x LN2 Mode Switch
• 1 x NickShih's OC Profile 1 Button with LED
• 1 x NickShih's OC Profile 2 Button with LED
• 1 x NickShih's OC Profile 3 Button with LED

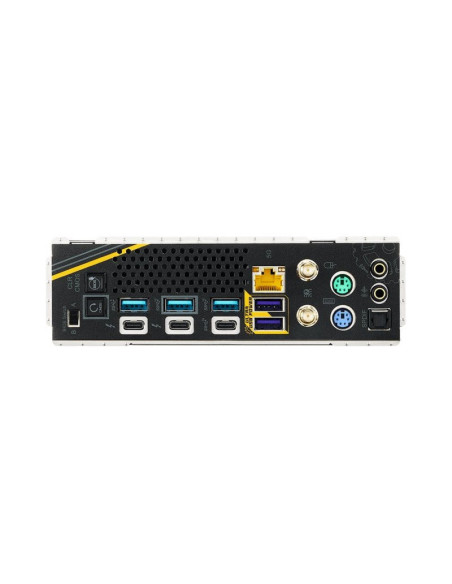

Conectores Traseros

• 2 x Antenna Ports
• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 1 x USB 3.2 Gen1 Port
• 1 x RJ-45 LAN Port
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x BIOS Selection Switch
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Factor de forma

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 10 Layer PCB
• 2oz Copper PCB

Más información en la web del fabricante:

• https://www.asrock.com/mb/Intel/Z890%20Taichi%20OCF/Specification.asp#Specification
