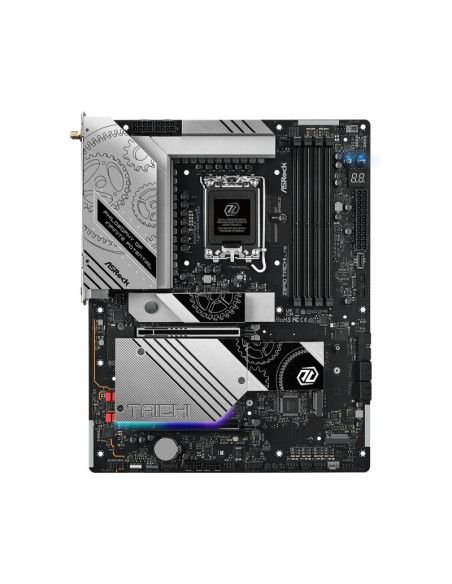

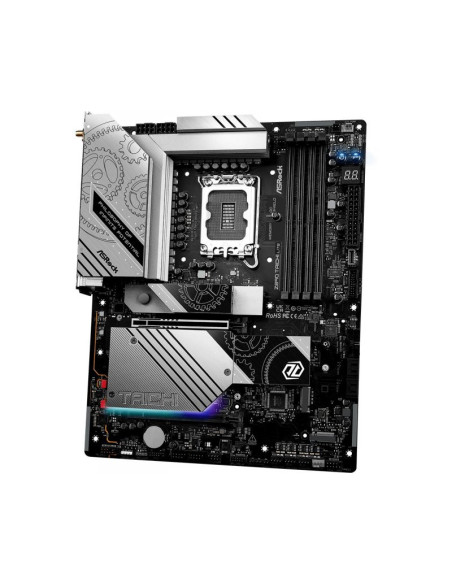

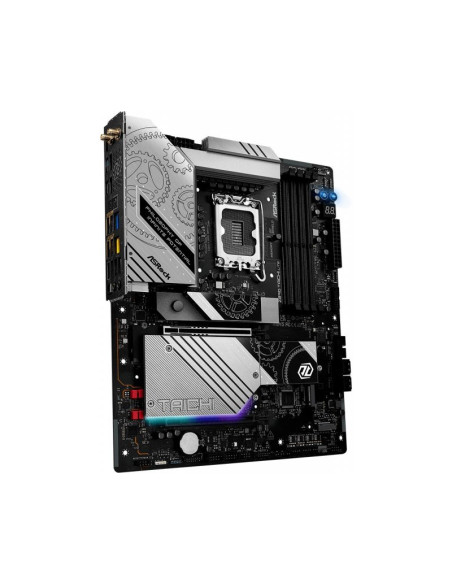

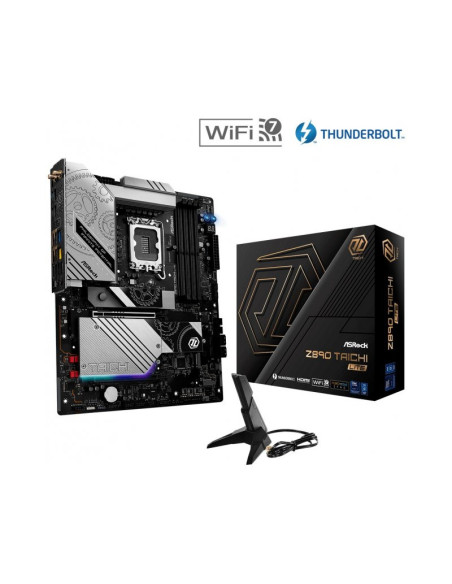

ASRock Z890 Taichi Lite ATX Intel Socket 1851

Procesador

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration
• Supports ASRock Hyper BCLK Engine

Chipset

• Intel Z890

Memoria

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 9600+(OC)
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 256GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0x

Slots

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Gráficos

• Intel® Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Almacenamiento

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 4 x SATA3 6.0 Gb/s Connectors
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 2 x Thunderbolt™ 4 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 4 x USB 3.2 Gen2 Type-A (Rear)
• 8 x USB 3.2 Gen1 (4 Rear, 4 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

Audio

• 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• WIMA Audio Capacitors (For Rear Outputs)
• ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
• Individual PCB Layers for R/L Audio Channel
• Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
• Nahimic Audio

Conectividad y redes

• 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)
• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz frequency band
• Supports 320MHz channel bandwidth with 6GHz frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

Conectores Internos

• 3 x Thermistor Cable Headers
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED

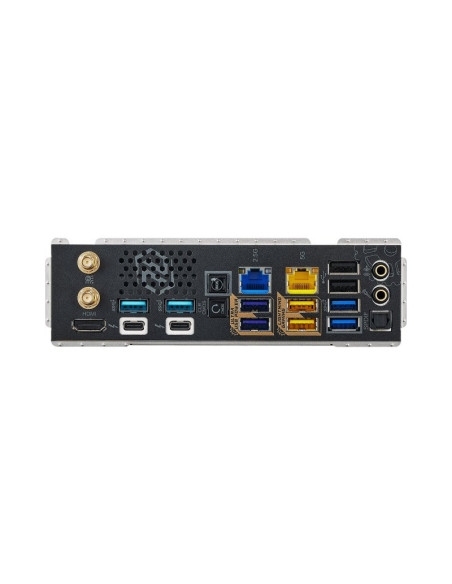

Conectores Traseros

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)
• 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 2 x RJ-45 LAN Ports
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Factor de forma

• ATX (30.5 x 24.4 cm)
