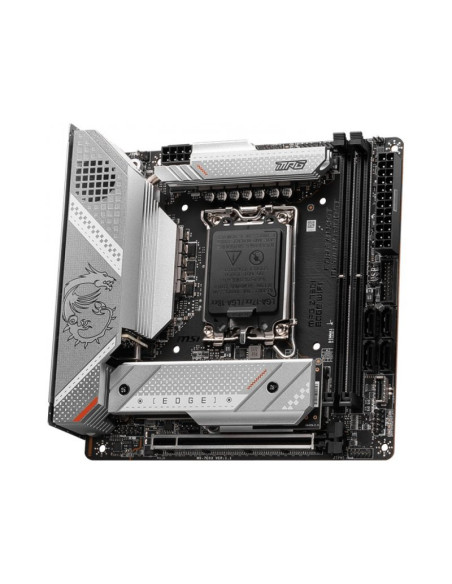

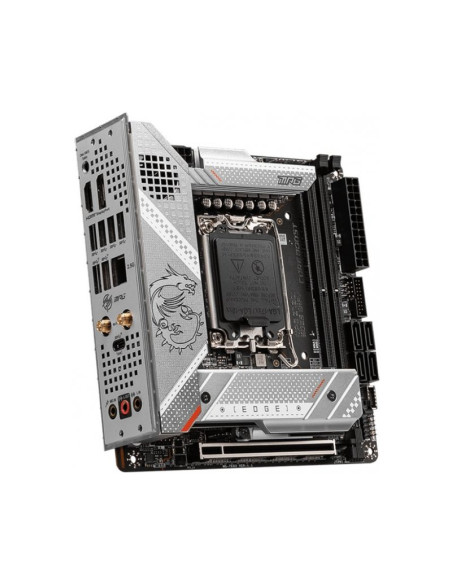

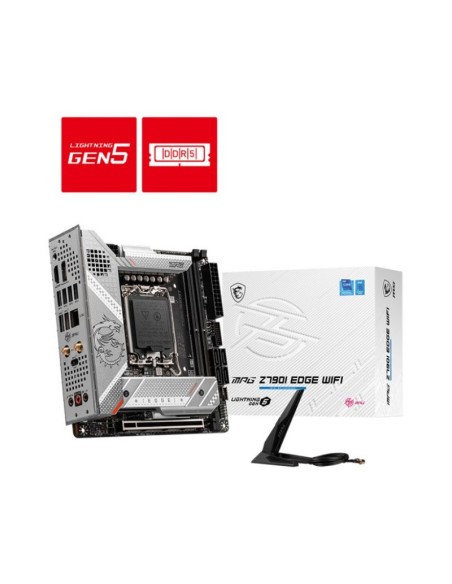

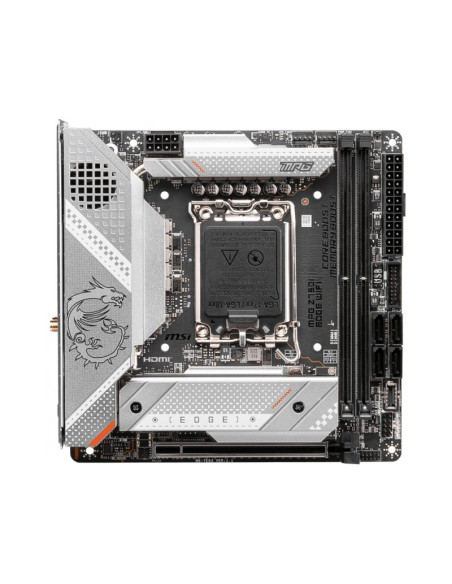

MSI Z790I Edge WiFi Mini-ITX Socket Intel 1700

Procesador

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700

Chipset

• Intel Z790

Memoria

• 2x DDR5, Maximum Memory Capacity 128GB
• Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel® XMP3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Slots

• 1 x PCI-E x16 slot

Gráficos

• 1 x HDMI
• 1 x DisplayPort

Almacenamiento

• 1 x M.2
• 4 x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices

USB

• 2 x USB 2.0 (Frontal)
• 4 x USB 5Gbps Type A (Trasero)
• 2 x USB 5Gbps Type A (Frontal)
• 2 x USB 10Gbps Type A (Trasero)
• 1 x USB 20Gbps Type C (Trasero)
• 1 x USB 20Gbps Type C (Frontal)

Audio

• Realtek® ALC4080 Codec

Conectividad y redes

• Intel® 2.5Gbps LAN
• Intel® Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 1 x Power Connector(CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 1 x System Fan
• 1 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x TPM pin header(Support TPM 2.0)
• 2 x USB 2.0 ports
• 2 x USB 5Gbps Type A ports
• 1 x USB 20Gbps Type C ports

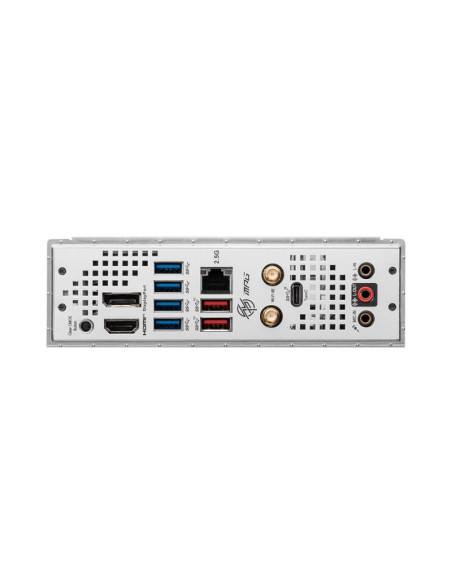

Conectores Traseros

• 1 x HDMI
• 1 x DisplayPort
• 4 x USB (5 Gbps) Tipo A
• 2 x USB (10 Gbps) Tipo A
• 2 x Antena Wi-Fi / Bluetooth
• 1 x USB (20 Gbps) Tipo C
• 3 x Jack 3.5mm

Factor de forma

• Mini-ITX (170mmx170mm)
