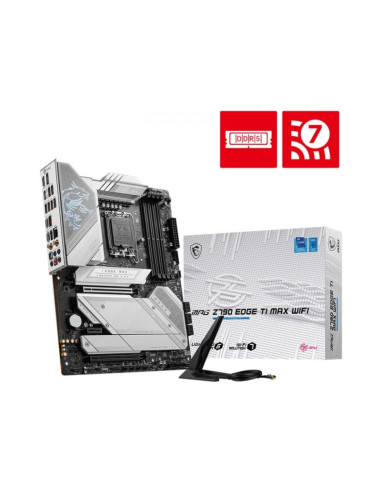

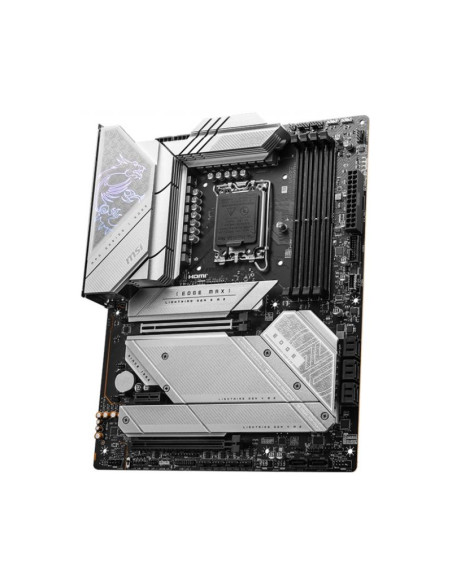

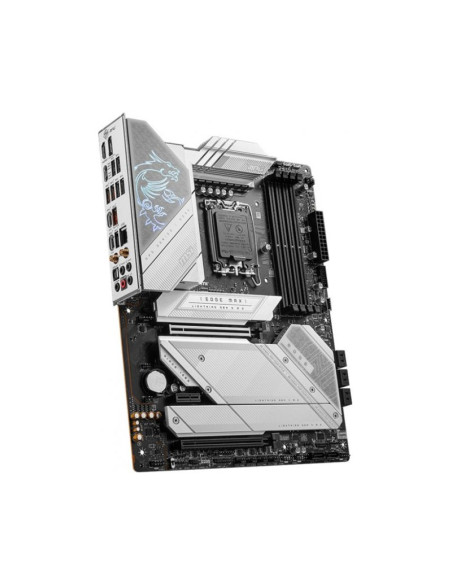

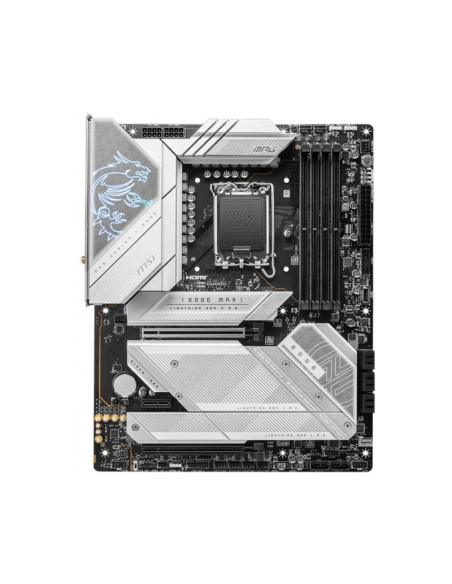

MSI Z790 Edge Ti Max WiFi ATX Intel Socket 1700

Procesador

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• LGA 1700

Chipset

• Intel Z790

Memoria

• 4 x DDR5 UDIMM, Maximum Memory Capacity 192GB
• Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel® XMP3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Slots

• 2 x PCI-E x16 slot
• 1 x PCI-E x1 slot

Gráficos

• 1 x HDMI
• 1 x DisplayPort

Almacenamiento

• 5 x M.2
• 8 x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 4 x USB 2.0 (Front)
• 4 x USB 3.2 Gen1 Type A (Rear)
• 2 x USB 3.2 Gen1 Type A (Front)
• 4 x USB 3.2 Gen2 Type A (Rear)
• 1 x USB 3.2 Gen2 Type C (Rear)
• 1 x USB 3.2 Gen2 Type C (Front)
• 1 x USB 3.2 Gen2x2 Type C (Rear)

Audio

• Realtek ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel

Conectividad y redes

• Intel 2.5Gbps LAN
• Wi-Fi 7 Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.4, MLO, 4KQAM

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 2 x Power Connector(CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 6 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x TBT connector (JTBT, supports RTD3)
• 1 x Tuning Controller connector(JDASH)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector(JRGB)
• 1 x TPM pin header(Support TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 3.2 Gen1 Type A ports
• 1 x USB 3.2 Gen2 Type C ports
• 1 x ARGB+FAN Header (JAF_1)
• 1 x USB4 card connector (JTBT_U4_1, supports RTD3)

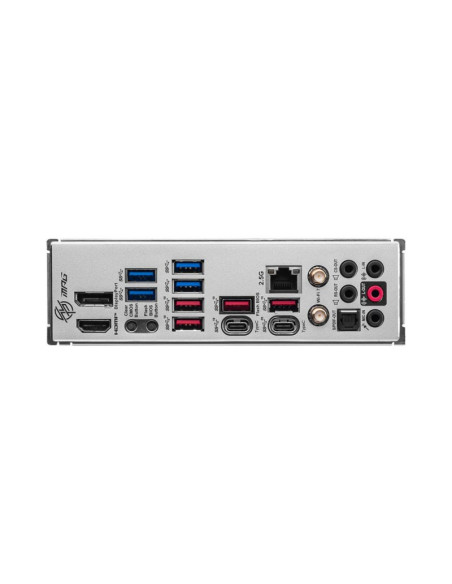

Conectores Traseros

• 1 x DisplayPort
• 1 x HDMI
• 4 x USB 3.2 (Gen 1) Tipo A (5 Gbps)
• 4 x USB 3.2 (Gen 2) Tipo A (10 Gbps)
• 1 x USB 3.2 (Gen 2) Tipo C (10 Gbps)
• 1 x USB 3.2 (Gen 2x2) Tipo C (20 Gbps)
• 1 x RJ45 (2.5GbE)
• 2 x Antena Wi-Fi / Bluetooth
• 5 x Jack 3.5mm
• 1 x S/PDIF

Factor de forma

• ATX (243.84 x 304.8mm)

Más información en la web del fabricante: https://www.msi.com/Motherboard/MPG-Z790-EDGE-TI-MAX-WIFI/Specification
