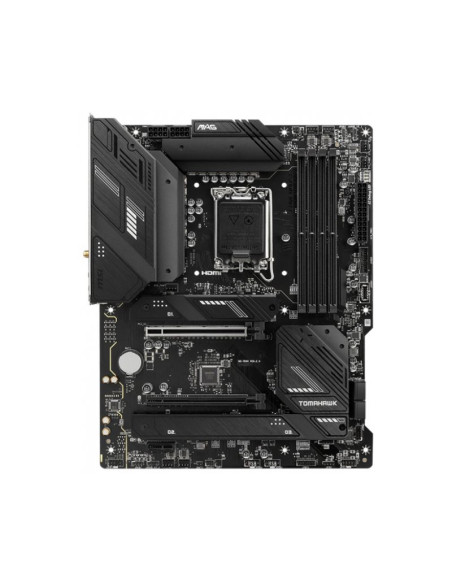

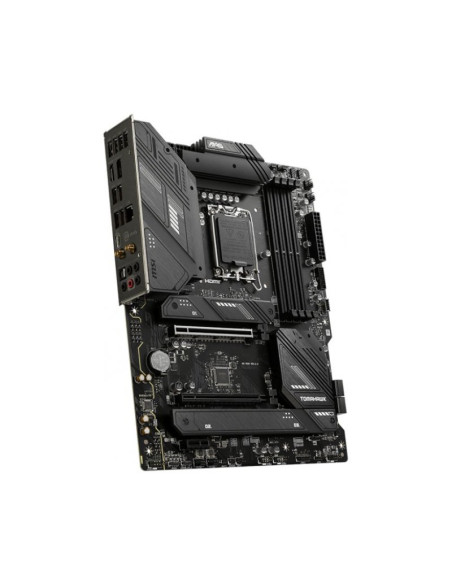

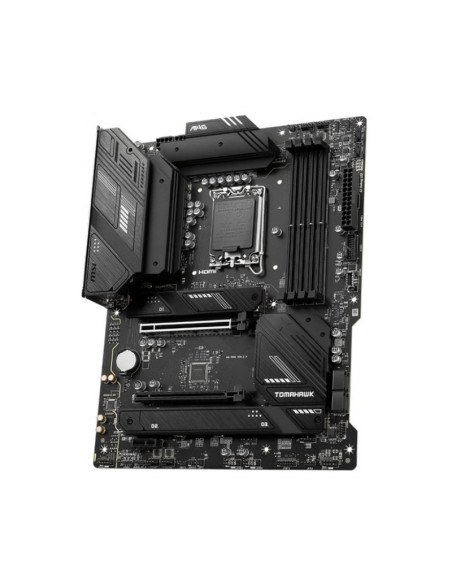

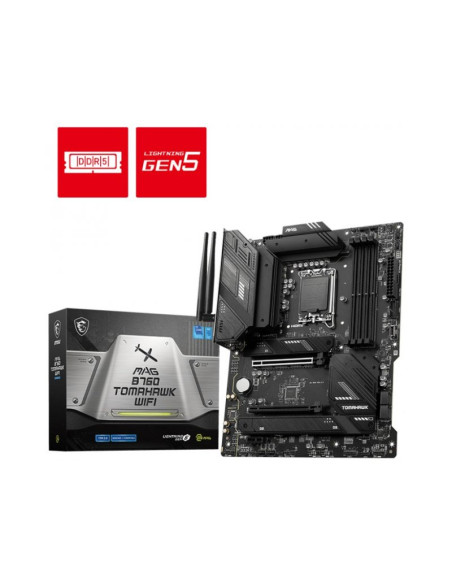

MSI MAG B760 Tomahawk WiFi ATX Intel Socket 1700

Procesador

• Supports 12th / 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• LGA1700

Chipset

• Intel B760 Chipset

Memoria

• 4 x DIMM
• Dual Channel DDR5-7000+ MHz (O.C)

Slots

• 1 x PCIe 5.0 x 16 slot
• 1 x PCIe 3.0 x16 slot
• 1 x PCIe 4.0 x1 slot

Gráficos

• Support 4K@60Hz as specified in HDMI 2.1, DisplayPort 1.4 - Requires Processor Graphics

Almacenamiento

• 3 x M.2 Gen4 x 4 64Gbps slots
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3,2 (Gen 2x2) Tipo C (20 Gbps)
• 5 x USB 3.2 (Gen 2) Tipo A + C (10 Gbps)
• 2 x USB 3.2 (Gen 1) Tipo A (5 Gbps)
• 8 x USB 2.0

Audio

• 8 Channel (7.1) HD Audio with Audio boost

Conectividad y redes

• Realtek RTL8125BG 2.5GbE
• Intel Wi-Fi 6E
• Bluetooth: 5.3

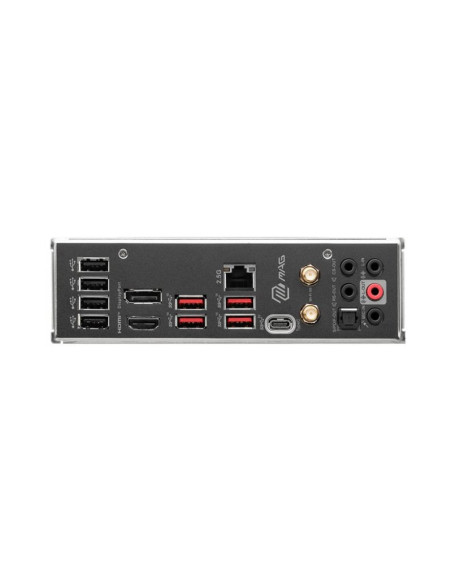

Conectores Traseros

• 4 x USB 2.0
• 1 x HDMI 2.1
• 1 x DisplayPort 1.4
• 4 x USB 3.2 (Gen 2) Tipo A (10 Gbps)
• 1 x USB 3.2 (Gen 2x2) Tipo C (20Gbps)
• 1 x RJ45 (2.5GbE)
• 2 x Antena Wi-Fi / Bluetooth
• 1 x S/PDIF
• 5 x Jack 3.5mm

Factor de forma

• ATX
