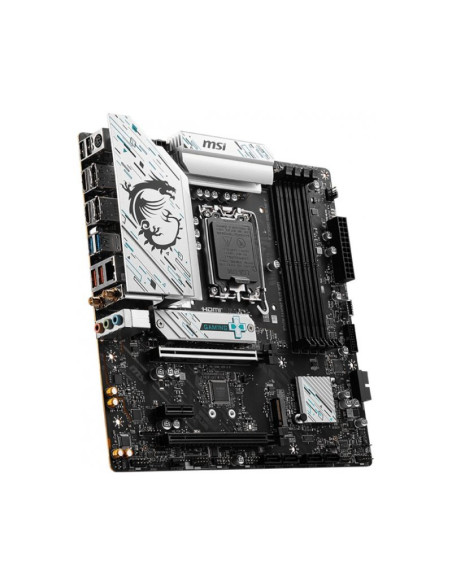

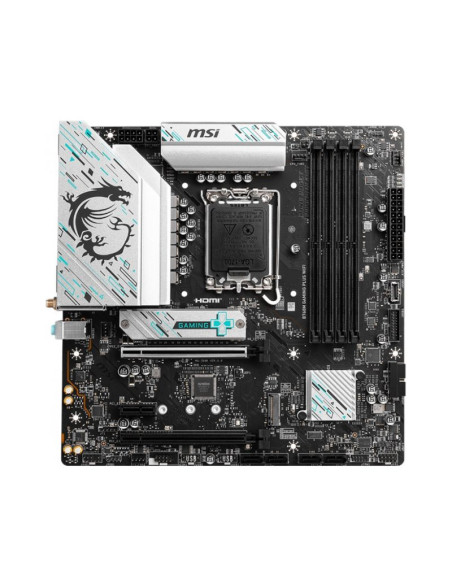

MSI B760M Gaming Plus WiFi ATX Intel Socket 1700

Procesador

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
• LGA 1700

Chipset

• Intel B760

Memoria

• 4 x DDR5, Maximum Memory Capacity 192GB
• Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Supports Intel XMP 3.0 OC
• Supports Dual-Controller Dual-Channel mode
• Supports non-ECC, un-buffered memory

Slots

• 2 x PCI-E x16 slot
• 1 x PCI-E x1 slot

Gráficos

• 2 x HDMI
• 2 x DisplayPort

Almacenamiento

• 2 x M.2
• 4 x SATA 6G
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 2 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 2 x USB 3.2 Gen1 Type A (Rear)
• 4 x USB 3.2 Gen1 Type A (Front)
• 1 x USB 3.2 Gen1 Type C (Front)
• 2 x USB 3.2 Gen2 Type A (Rear)

Audio

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Conectividad y redes

• Realtek RTL8125BG 2.5G LAN
• Intel Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 2 x Power Connector(CPU_PWR)
• 1 x CPU Fan
• 1 x Pump Fan
• 2 x System Fan
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Com Port (JCOM)
• 2 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector(JRGB)
• 1 x TPM pin header(Support TPM 2.0)
• 4 x USB 2.0 ports
• 4 x USB 3.2 Gen1 Type A ports
• 1 x USB 3.2 Gen1 Type C ports

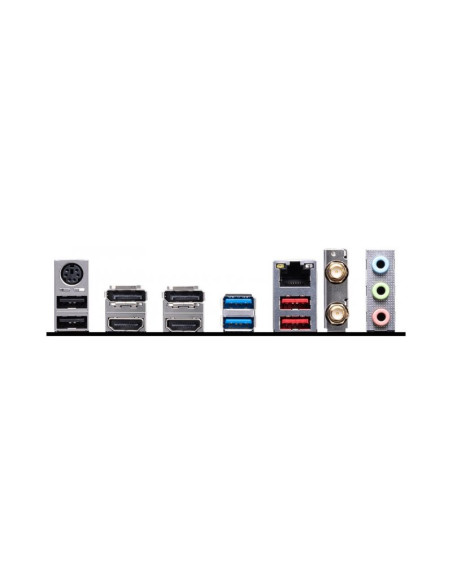

Conectores Traseros

• 1 x PS/2
• 2 x USB 2.0 Tipo A
• 2 x HDMI
• 2 x DisplayPort
• 2 x USB 3.2 (Gen 1) Tipo A (5 Gbps)
• 2 x USB 3.2 (Gen 2) Tipo A (10 Gbps)
• 1 x RJ45 (GBLAN 2.5GbE)
• 2 x Antena Wi-Fi / Bluetooth
• 3 x Jack 3.5mm

Factor de forma

• MicroATX (243.84 x243.84mm)

Más información en la web del fabricante: https://www.msi.com/Motherboard/B760M-GAMING-PLUS-WIFI/Specification
