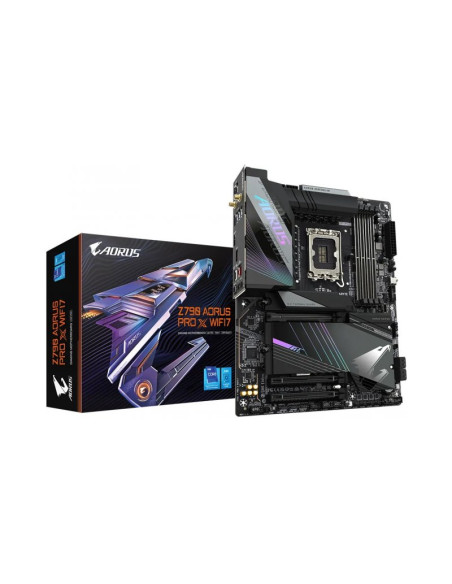

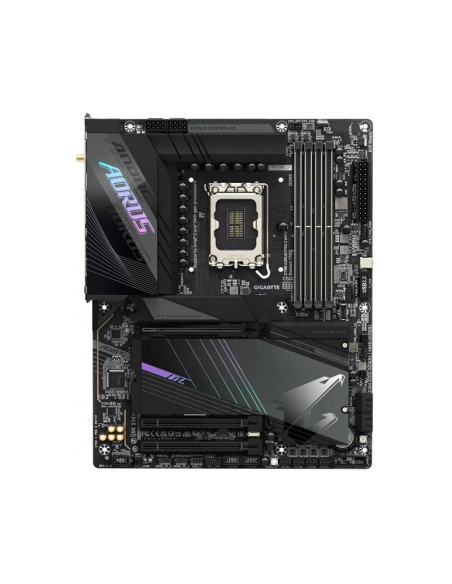

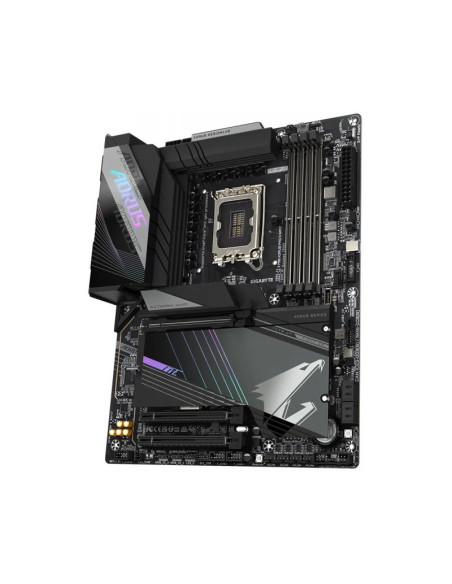

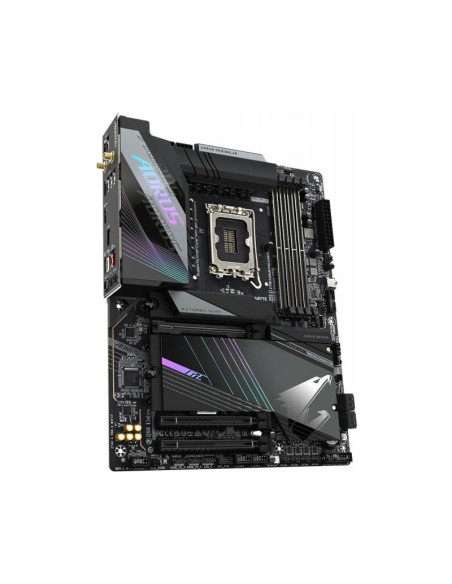

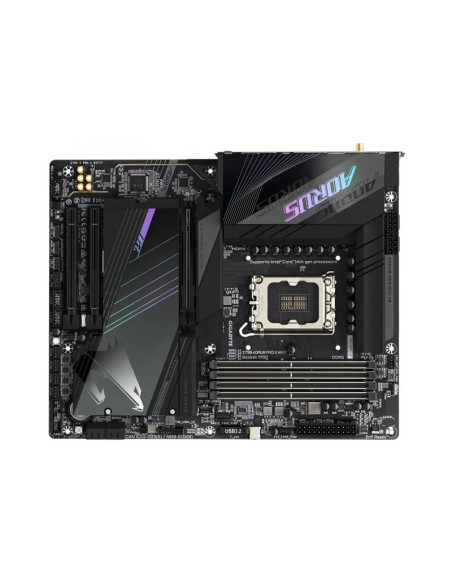

Gigabyte Z790 AORUS Pro X WIFI7 ATX Intel Socket 1700

Procesador

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU

Chipset

• Intel® Z790 Express Chipset

Memoria

• Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
• - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Gráficos

• Integrated Graphics Processor-Intel® HD Graphics support:
• - 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs
• and a maximum resolution of 1920x1080@30 Hz
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• CPU:
• - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• - 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• Chipset:
• - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
• - 1 x USB Type-C® port onboard, with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)
• - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• - 2 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 3.2 Gen 1 Hub:
• - 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® ALC1220-VB CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
• Intel® Wi-Fi 7 BE200 (For PCB rev. 1.0)
• - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11be 320MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 5 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 2 x Thunderbolt™ add-in card connectors
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 2 x temperature sensor headers
• 1 x Clear CMOS jumper

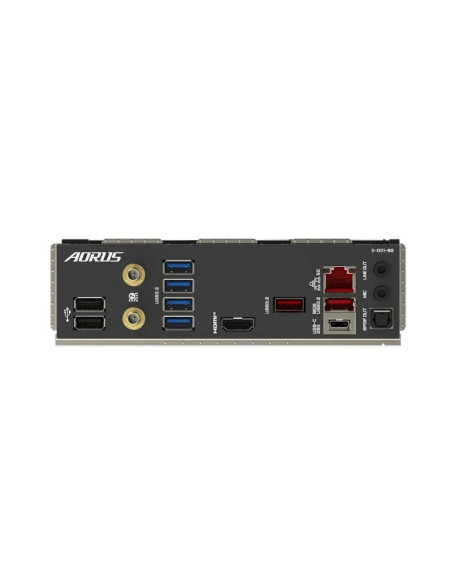

Conectores Traseros

• 2 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 4 x USB 3.2 Gen 1 ports
• 1 x DisplayPort In port (Note)
• 1 x HDMI port
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Factor de forma

• ATX Form Factor; 30.5cm x 24.4cm

Más información en la web del fabricante: https://www.gigabyte.com/Motherboard/Z790-AORUS-PRO-X-WIFI7/sp#sp
