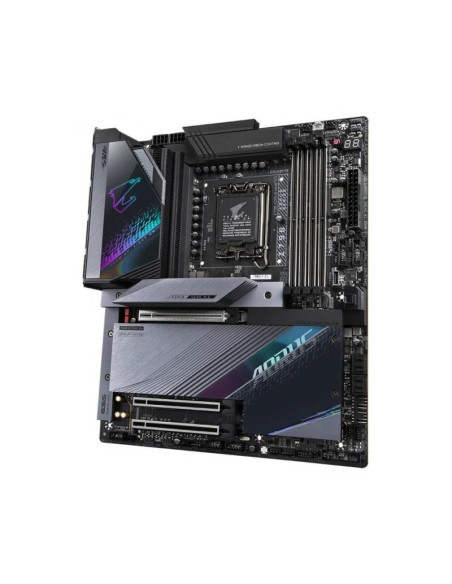

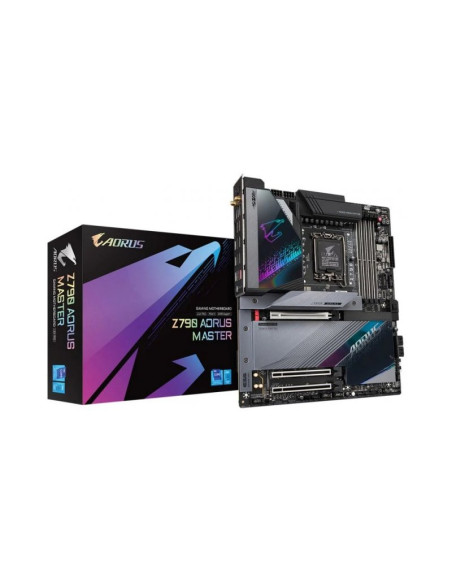

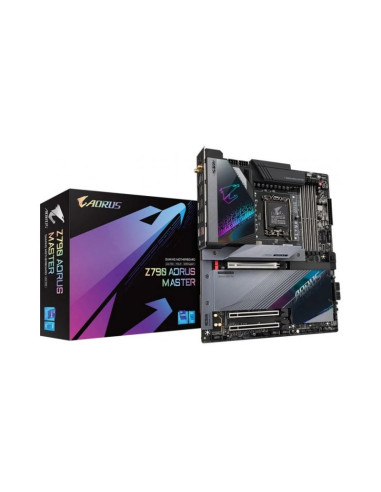

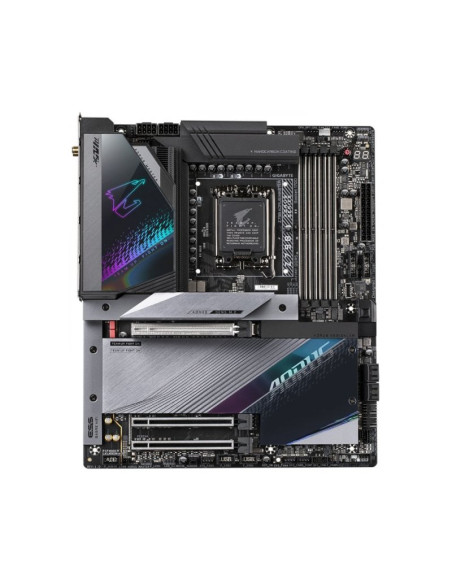

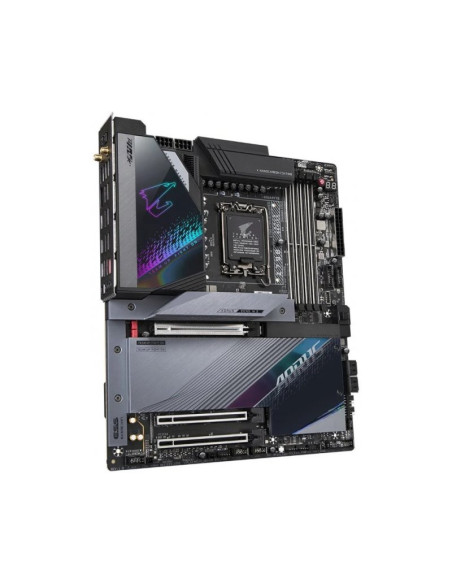

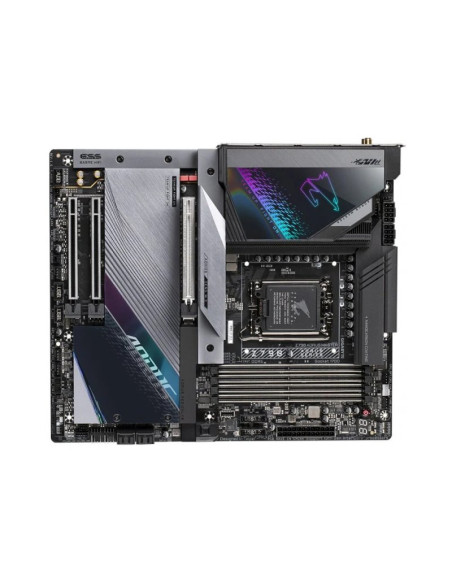

La placa base Gigabyte Z790 AORUS Master e-ATX Intel Socket 1700 es una joya tecnológica diseñada para ofrecer lo mejor en rendimiento y conectividad. Compatible con procesadores Intel® Core™ de 13ª y 12ª generación, esta placa incluye el potente chipset Intel Z790 Express, asegurando compatibilidad con los últimos avances en tecnología informática.
Optimiza su capacidad de memoria con soporte para DDR5 con frecuencias asombrosas de hasta 8000(O.C). Con cuatro sockets DDR5 DIMM, esta placa admite hasta 128 GB de memoria de sistema, garantizando que los entusiastas y profesionales tengan el rendimiento necesario para tareas exigentes. Esta placa también es compatible con módulos de memoria ECC y XMP, mejorando la estabilidad y el overclocking.
La incorporación de slots PCIe de última generación permite aprovechar al máximo los dispositivos de almacenamiento y gráficos. Ofrece un slot PCI Express x16 compatible con PCIe 5.0 para tarjetas gráficas y varios slots para SSD M.2, asegurando transferencias de datos ultra-rápidas por medio de PCIe 5.0 y 4.0. Además, la capacidad de conectividad es inigualable con múltiples puertos USB 3.2 Gen 2x2 y Type-C, adaptándose a todos tus dispositivos modernos.
En términos de audio, disfruta de una experiencia sonora envolvente con el códec Realtek® ALC1220-VB y el chip DAC ESS ES9118, respaldados por DTS:X® Ultra para un sonido de alta definición excepcional. Adicionalmente, la conectividad de red es de primer nivel con Marvell® AQtion 10GbE LAN y las capacidades Wi-Fi 6E de Intel® Killer™, ofreciendo alta velocidad y estabilidad en conexión tanto por cable como inalámbrica.
Procesador
- LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset
- Intel Z790 Express Chipset
Memoria
- Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
- 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Slots
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Gráficos
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Almacenamiento
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
USB
- 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header)
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Audio
- Realtek® ALC1220-VB CODEC
- ESS ES9118 DAC chip
- Support for DTS:X® Ultra
- High Definition Audio
- 2/4/5.1-channel
Conectividad y redes
- Marvell® AQtion AQC113C 10GbE LAN chip
- Intel® Killer™ Wi-Fi 6E AX1690
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Conectores Internos
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 4 x system fan headers
- 4 x system fan/water cooling pump headers
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 5 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x noise detection header
- 2 x Thunderbolt™ add-in card connectors
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
- Voltage Measurement Points

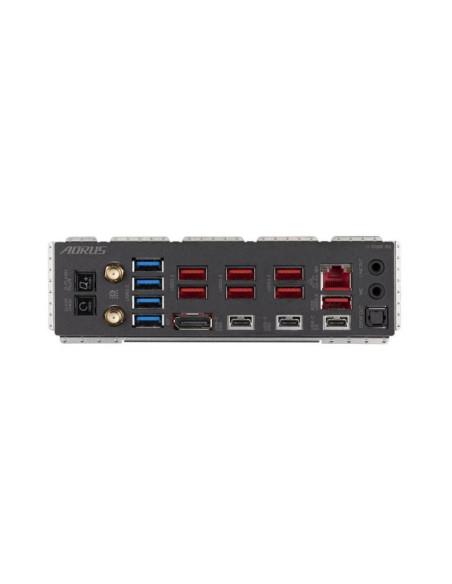

Conectores Traseros
- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 2 x SMA antenna connectors (2T2R)
- 1 x DisplayPort
- 1 x USB Type-C® port, with USB 3.2 Gen 1 support
- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support
- 7 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
Factor de forma
- e-ATX (30.5 x 26 cm)
Más información en la web del fabricante.
- https://www.gigabyte.com/Motherboard/Z790-AORUS-MASTER-rev-10/sp#sp
