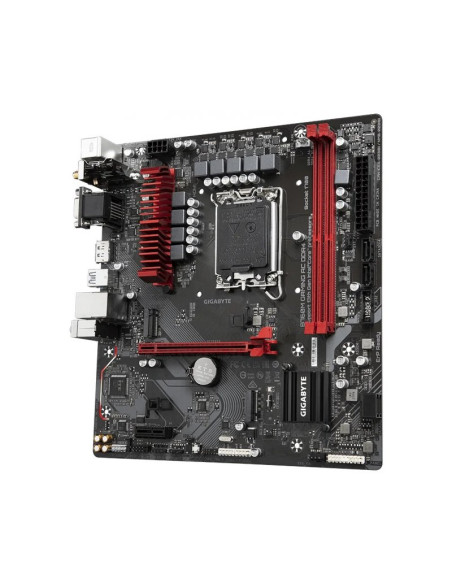

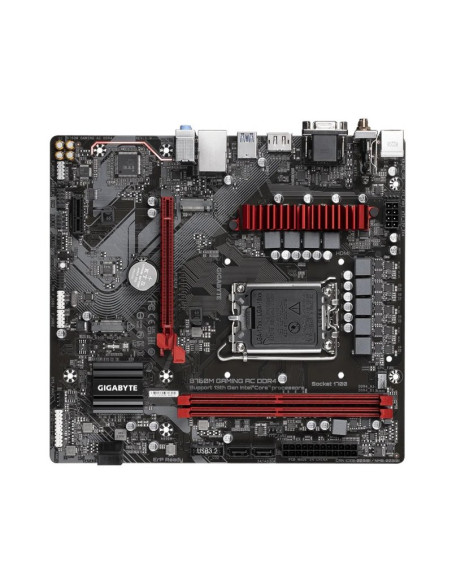

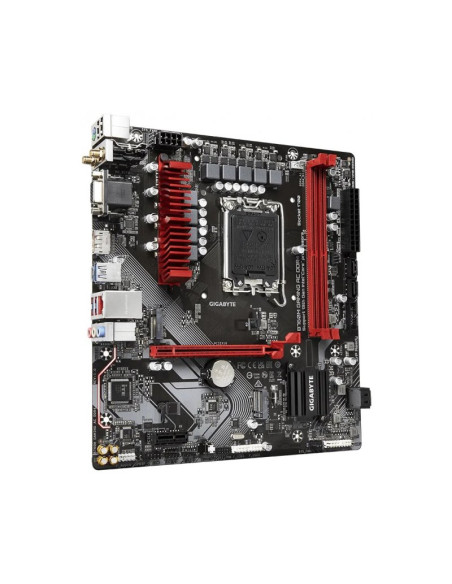

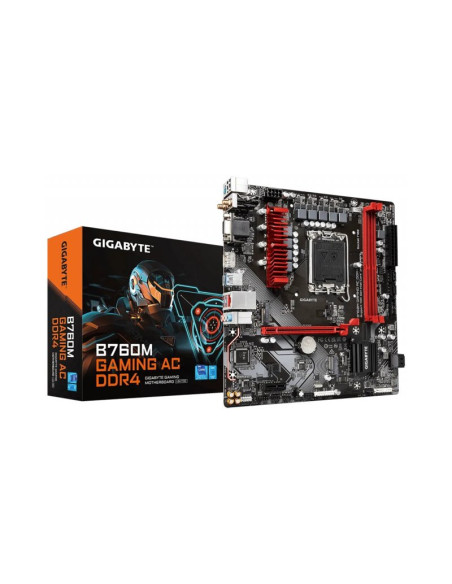

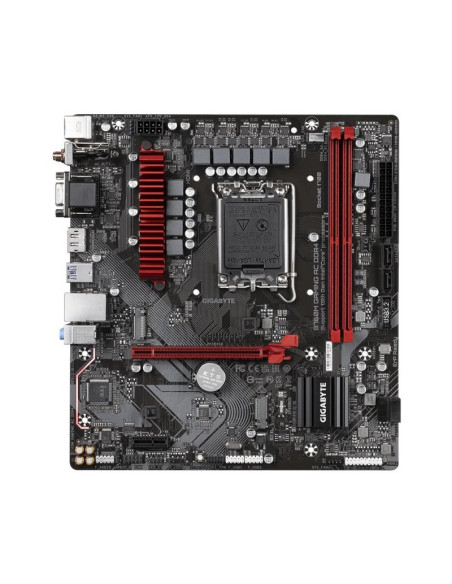

Gigabyte B760M Gaming AC DDR4 Micro-ATX Intel Socket 1700

Procesador

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU

Chipset

• Intel® B760 Express Chipset

Memoria

• Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Gráficos

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Intel® Wireless-AC 9461 (PCB rev. 1.1)
• WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 5.1
• Support for 11ac wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 3 x system fan headers
• 1 x addressable LED strip headers
• 1 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

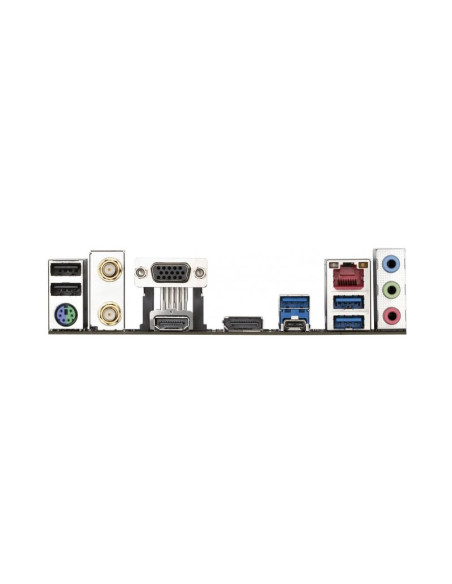

Conectores Traseros

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (1T1R)
• 1 x D-Sub port
• 1 x HDMI port
• 1 x DisplayPort
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• Micro ATX (24.4 x 22.5cm)

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/B760M-GAMING-AC-DDR4-rev-1x/sp#sp
