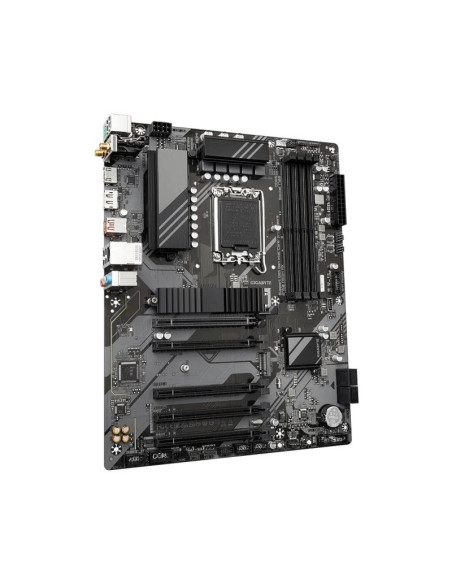

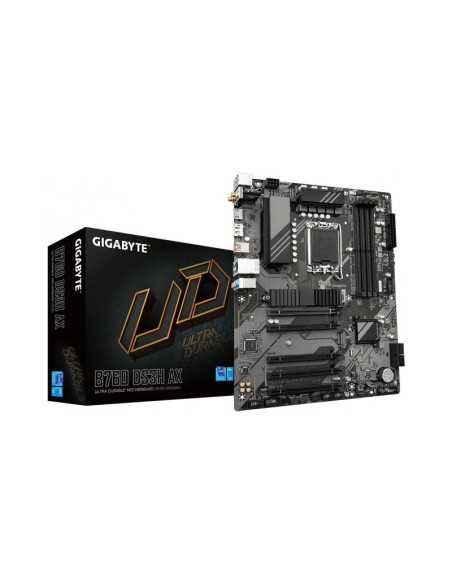

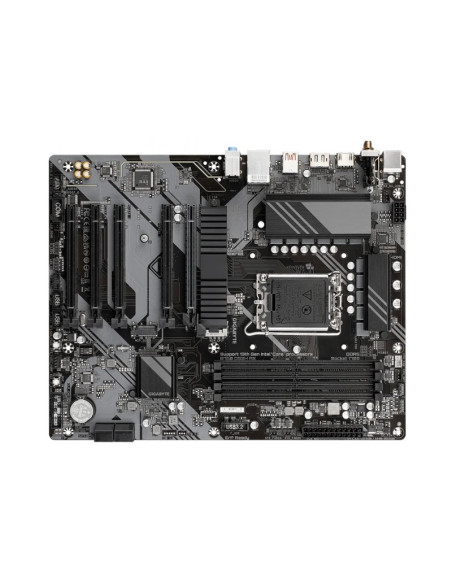

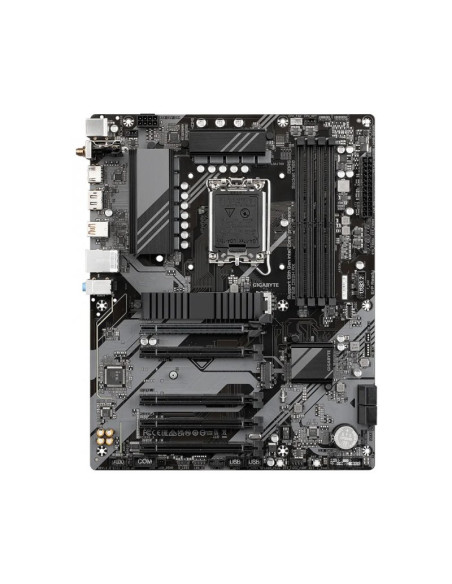

Gigabyte B760 DS3H AX ATX Intel Socket 1700

Procesador

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• L3 cache varies with CPU

Chipset

• Intel® B760 Express Chipset

Memoria

• Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

Gráficos

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 4 x USB 2.0/1.1 ports on the back panel
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbps/100 Mbps)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Q-Flash Plus button
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

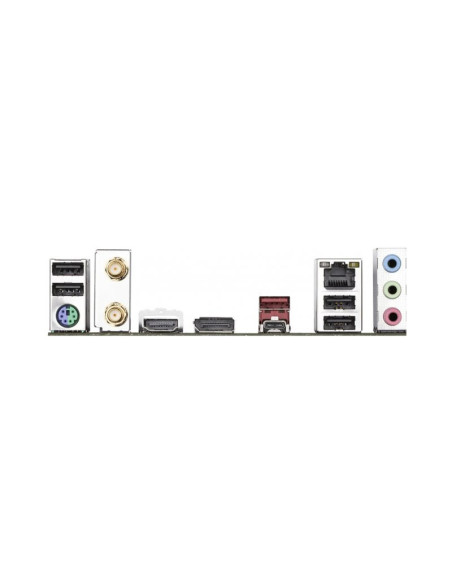

Conectores Traseros

• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• ATX (30.5 x 24.4cm)

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/B760-DS3H-AX-rev-1x/sp#sp
