Asus TUF Gaming H770-Pro WiFi ATX Intel Socket 1700

Procesador

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® H770 Chipset

Memoria

• 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

Gráficos

• 1 x DisplayPort**
• 1 x HDMI® port***

Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Conectores USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio Cover

Conectividad y Redes

• 1 x Intel® 2.5Gb Ethernet
• TUF LANGuard
• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2*

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt™ (USB4®) header

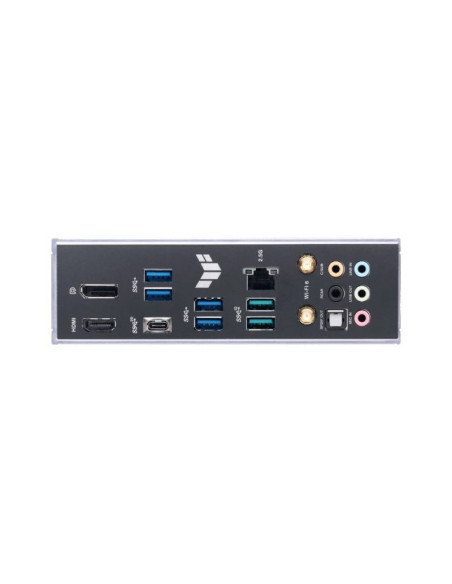

Conectores Traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A )
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Factor de Forma

• ATX ( 30.5 cm x 24.4 cm )
