Asus TUF Gaming B760M-BTF WiFi D4 Micro-ATX Intel Socket 1700

Procesador

• Intel® Socket LGA1700 para procesadores Intel® Core™ de 13.ª generación e Intel® Core™ de 12.ª generación, Pentium® Gold y Celeron®*
• Compatible con la tecnología Intel® Turbo Boost 2.0 y la tecnología Intel® Turbo Boost Max 3.0

Chipset

• Intel B760

Memoria

• 4 módulos DIMM, máx. 128 GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/
• 3733(OC)/3600( OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Memoria sin búfer, sin ECC*
• La arquitectura de memoria de dos canales admite el perfil de memoria Intel ® Extreme (XMP)
• OptiMem II

Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot

Gráficos

• 1 x DisplayPort
• 1 x HDMI

Almacenamiento

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280 only (supports PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
• 3 x USB 3.2 Gen 1 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 10-1 pin System Panel header
• 1 x Thunderbolt™ (USB4®) header

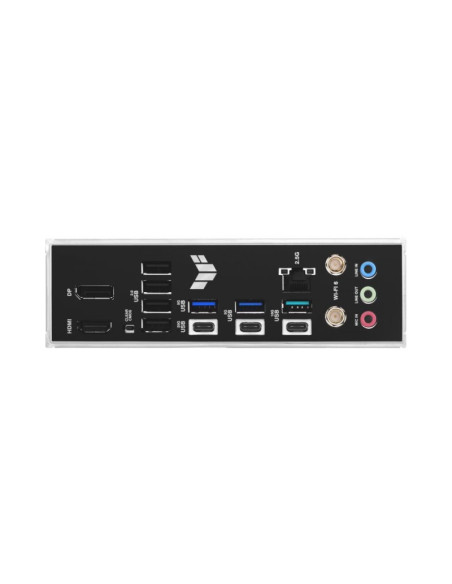

Conectores Traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x USB Type-C®)
• 3 x USB 3.2 Gen 1 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x Clear CMOS button

Factor de forma

• Micro-ATX (24.4 x 24.4 cm)

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-btf-wifi-d4/techspec/
