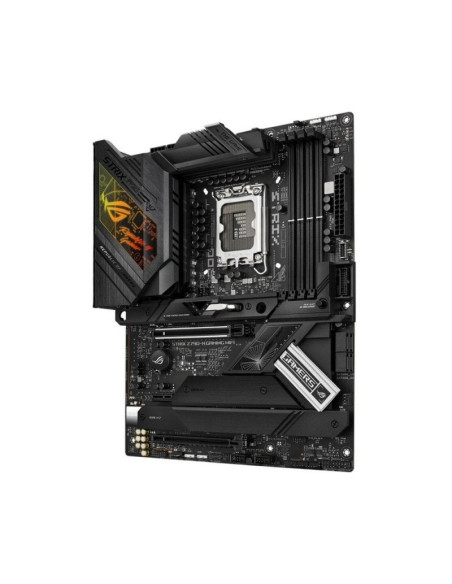

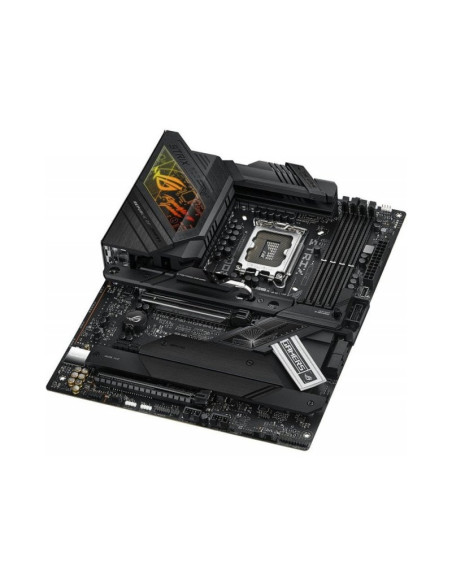

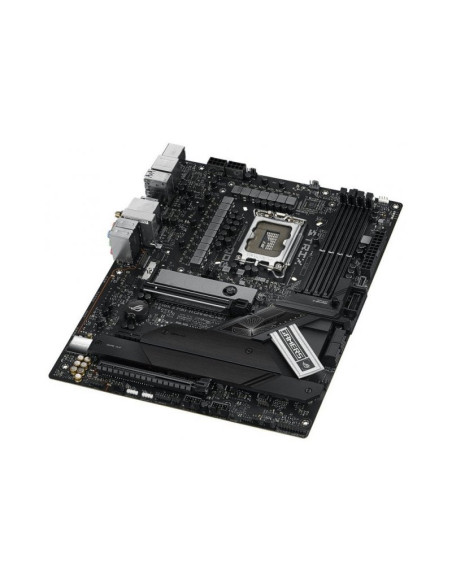

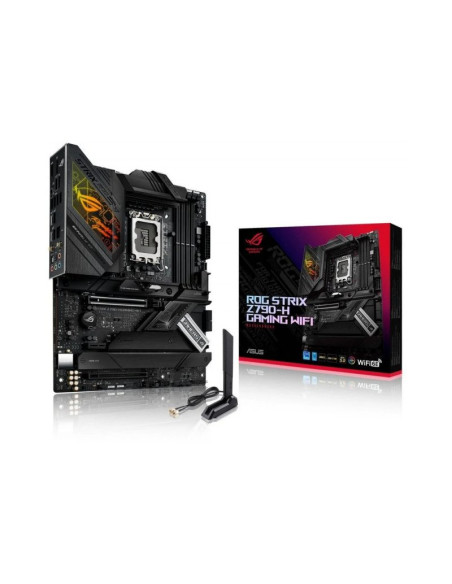

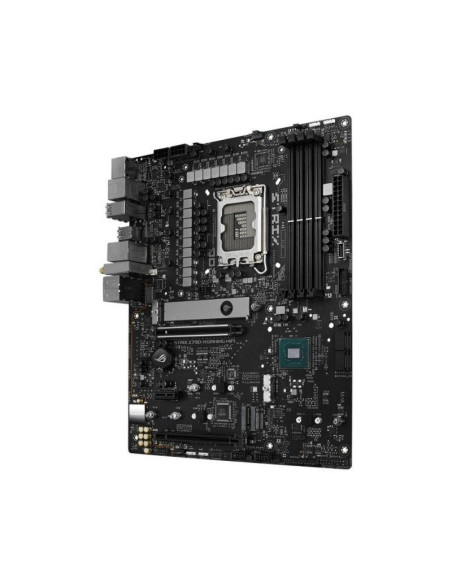

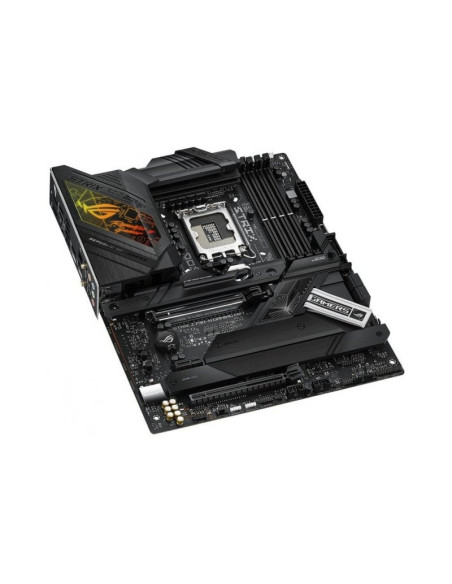

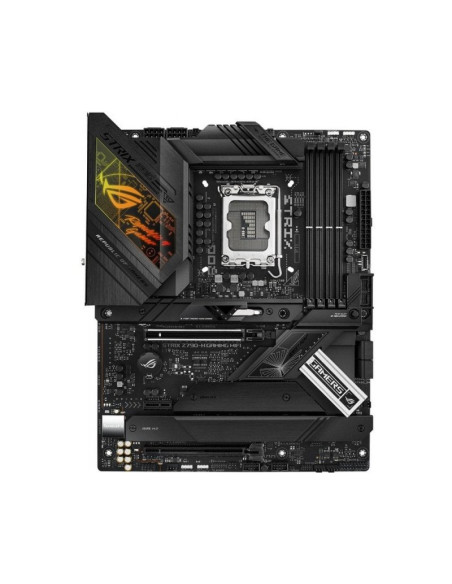

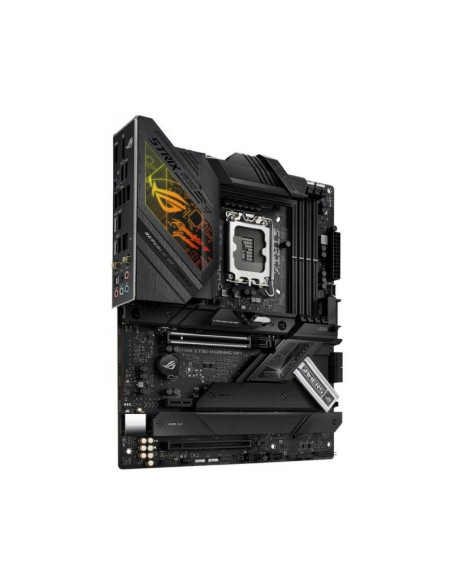

Asus ROG Strix Z790-H Gaming WiFi ATX Intel Socket 1700

Procesador

• Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Chipset

• Intel Z790 Chipset

Memoria

• 4 x DIMM, Max. 128GB, DDR5
• 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800
• Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

Slots

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)
• 1 x PCIe 3.0 x1 slot

Gráficos

• 1 x DisplayPort
• 1 x HDMI® port

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• RAID 0/1/5/10, SATA RAID 0/1/5/10

USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Bluetooth® v5.3

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

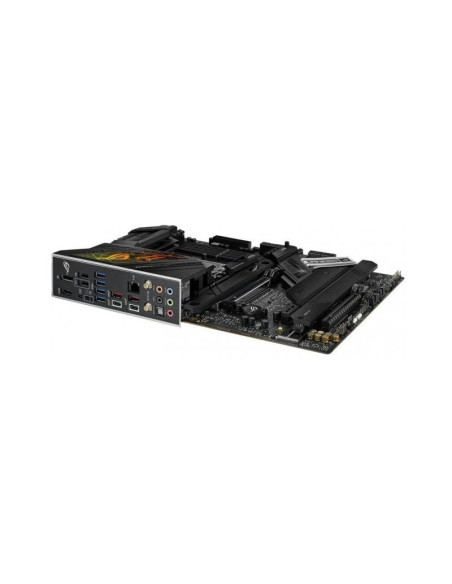

Conectores Traseros

• 1 x HDMI
• 1 x DisplayPort
• 2 x USB 2.0
• 4 x USB 3.2 (Gen 1) Tipo A
• 2 x USB 3.2 (Gen 2) Tipo A
• 1 x USB 3.2 (Gen 2x2) Tipo C
• 1 x USB 3.2 (Gen 2) Tipo C
• 1 x RJ45 (2.5GbE)
• 2 x Antena SMA
• 1 x S/PDIF
• 5 x Jack 3.5mm
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• ATX (30.5 x 24.4cm)

Más información en la web del fabricante: https://rog.asus.com/motherboards/rog-strix/rog-strix-z790-h-gaming-wifi-model/spec/
