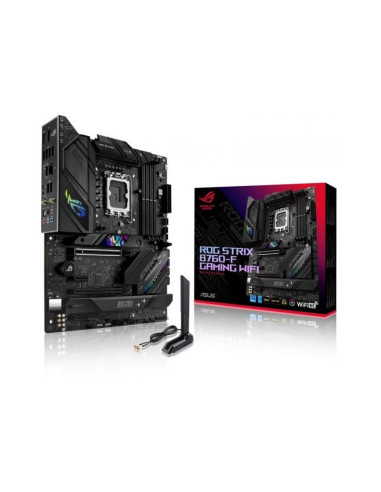

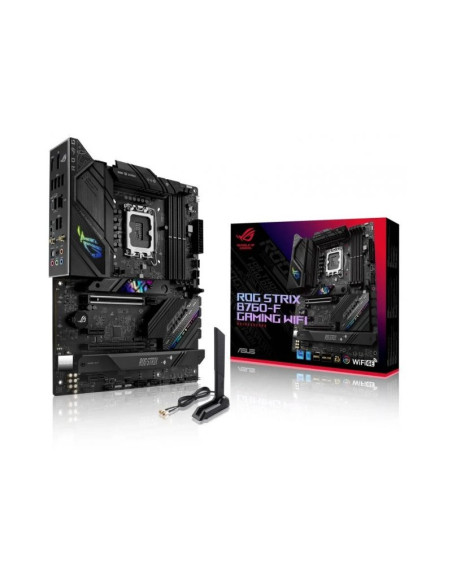

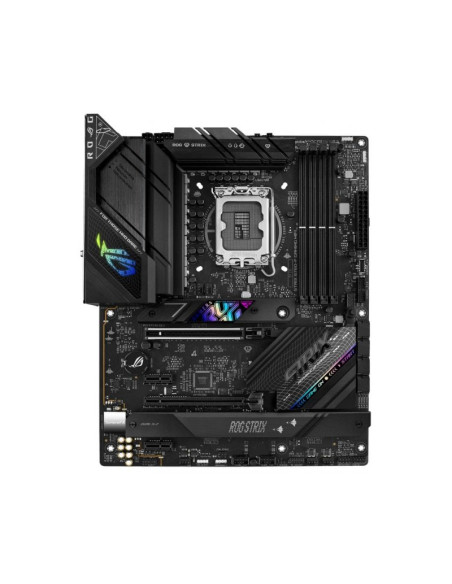

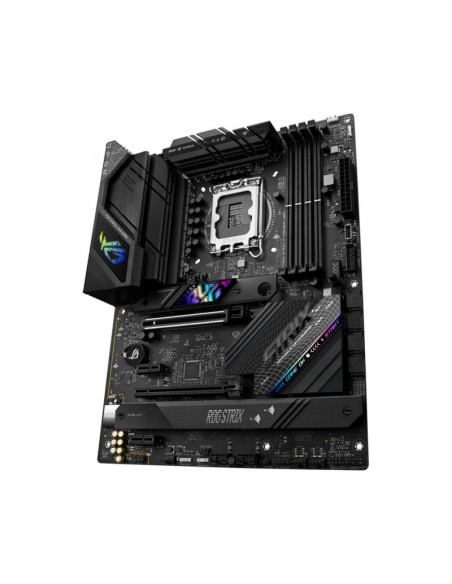

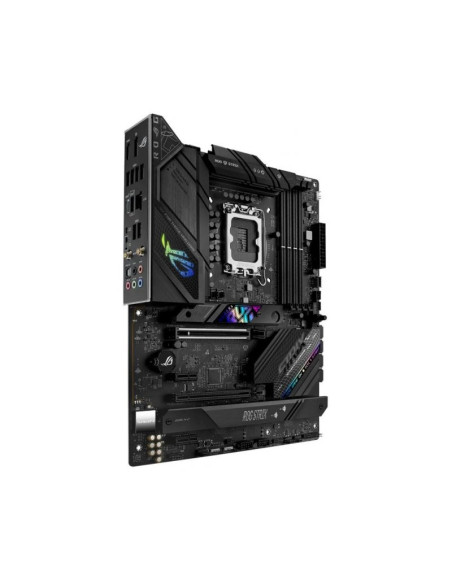

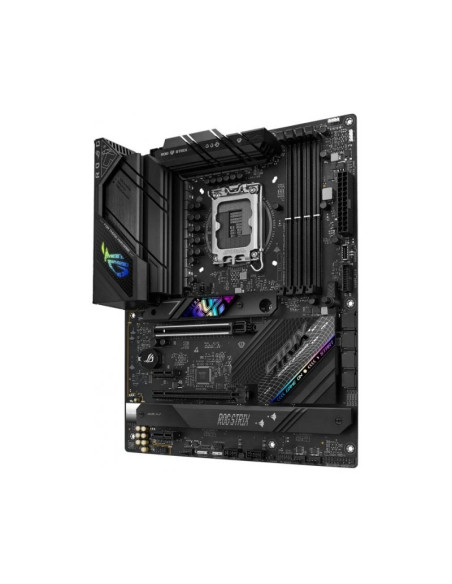

Asus ROG Strix B760-F Gaming WiFi ATX Intel Socket 1700

Procesador

• Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset

• Intel® B760 Chipset

Memoria

• 4 x DIMM, Max. 128GB, DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

Gráficos

• 1 x DisplayPort**
• 1 x HDMI® port***

Slots

• 1 x PCIe 5.0x16 slot (supports x16 mode)**
• 1 x PCIe 3.0 x16 slot (supports x4 mode)***
• 2 x PCIe 3.0 x1 slots

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 )
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
• 4 x SATA 6Gb/s ports

Conectores USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 6 x USB 3.2 Gen 1 ports (6 x Type-A)
• 1 x USB 3.2 Gen 2 connector
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

Conectividad y Redes

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3**

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 xThunderbolt™ (USB4®) header

Conectores Traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 6 x USB 3.2 Gen 1 ports (6 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks *
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button

Factor de Forma

• ATX ( 30.5 cm x 24.4 cm )
