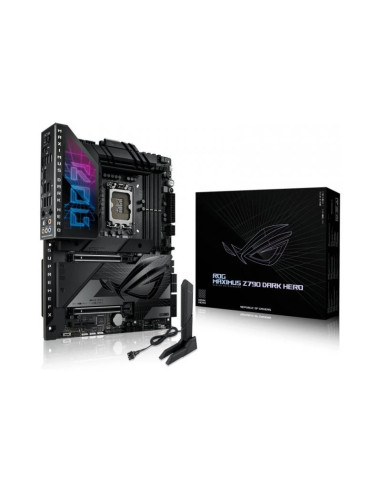

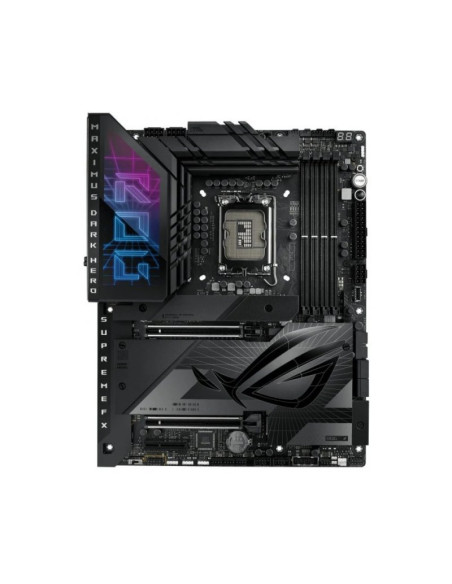

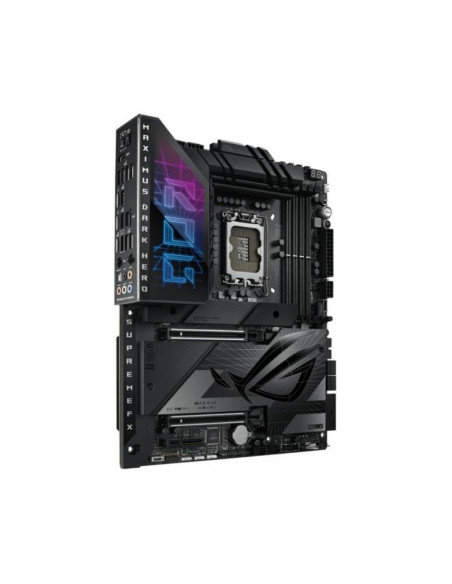

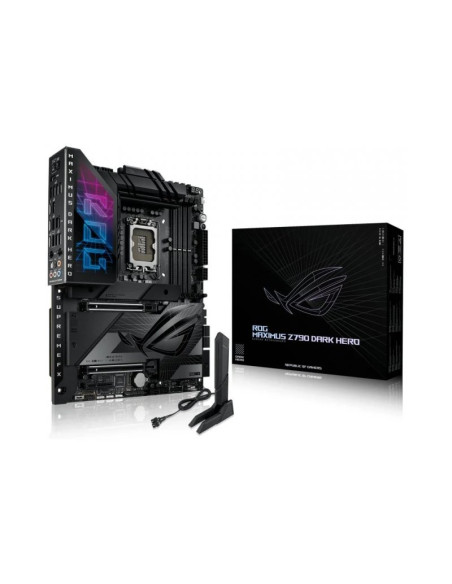

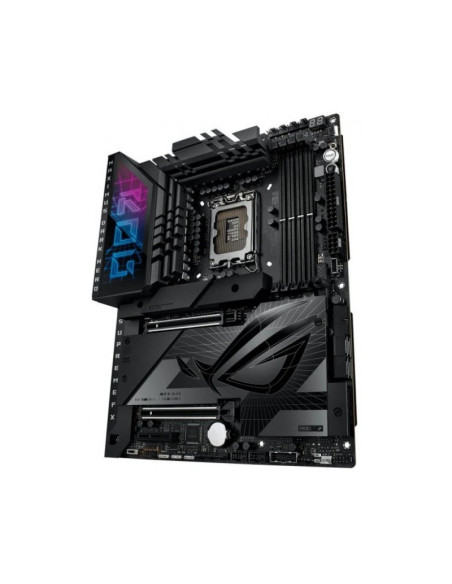

Asus ROG Maximus Z790 Dark Hero ATX Intel Socket 1700

Procesador

• Intel Socket LGA1700 for Intel Core™ Next-Gen & 13th Gen Processors, Intel Core™ 12th Gen, Pentium Gold and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel Z790

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)
• / 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory*
• Dual channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile II (AEMP II)

Gráficos

• 1 x HDMI
• 2 x Intel Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Slots

• 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
• 1 x PCIe 4.0 x4 slot

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Conectores USB

• 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback
• SupremeFX Shielding Technology
• ESS® ES9218 QUAD DAC
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors

Conectividad y Redes

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11 a/b/g/n/ac/ax/be)
• Supports 2.4/5/6GHz frequency band*
• Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header
• 1 x 24-pin main power connector
• 2 x 8-pin +12V power connector
• 1 x 8-pin PCIe power connector
• Storage related
• 5 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x FlexKey button
• 1 x Front panel audio header (F_AUDIO)
• 1 x Start button
• 1 x ReTry button
• 1 x 10-1 pin system panel header
• 1 x Thermal sensor header
• 1 x CPU over voltage jumper
• 1 x Alternative PCIe mode switch

Conectores Traseros

• 2 x Thunderbolt™ 4 USB Type-C® ports
• 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de Forma

• ATX ( 30.5 cm x 24.4 cm )

Más información en la web del fabricante: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z790-dark-hero/spec/
