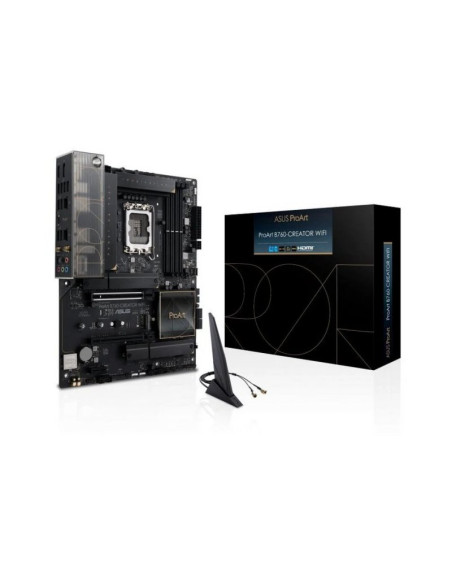

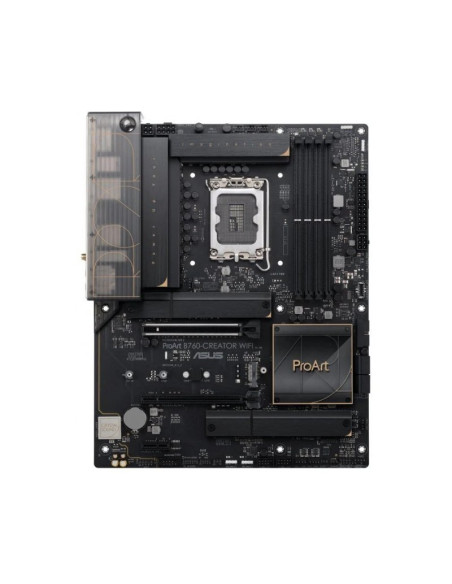

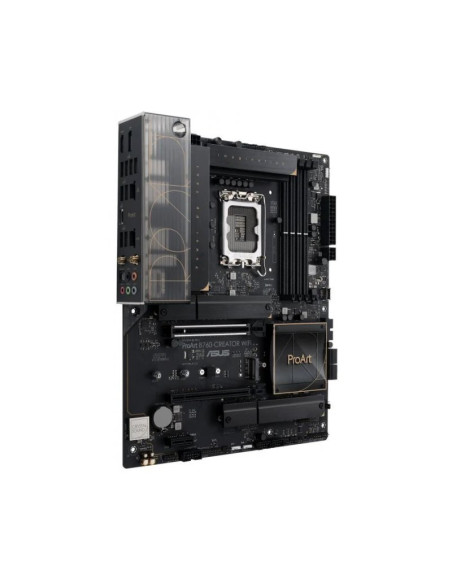

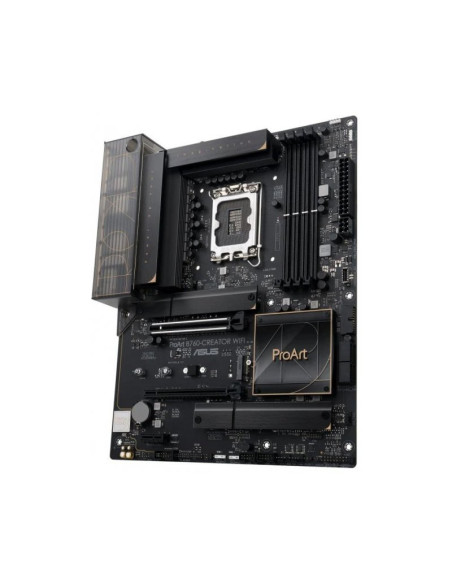

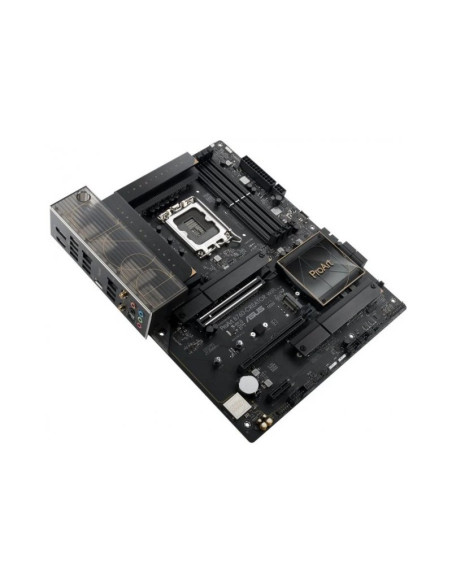

Asus ProArt B760-CREATOR WiFi ATX Intel Socket 1700

Procesador

• Intel Socket LGA1700 para procesadores Intel Core de 13.ª generación y procesadores Intel Core , Pentium Gold y Celeron de 12.ª generación Compatible con CPU Intel de 10 nm
• Compatible con tecnología Intel® Turbo Boost 2.0 e Intel® Turbo Boost Max Technology 3.0*

Chipset

• Intel B760

Memoria

• 4 x DIMM slots, Max. 192GB, DDR5 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

Slots

• 1 x PCIe 5.0/4.0/3.0 x16 slot
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 3.0 x1 slot**

Gráficos

• 1 x HDMI
• 1 x DisplayPort

Almacenamiento

• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2 (10G) Type-C® port
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
• 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• 1 x Intel® 1Gb Ethernet
• ASUS LANGuard

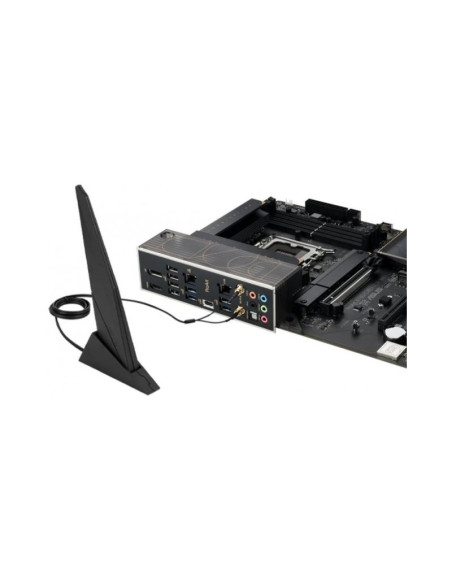

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2*

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 1 x 6-pin PD_12V Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 2x2 (20G) connector (supports USB Type-C® with 60W PD/QC4+)
• 1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5 pin System Panel header
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

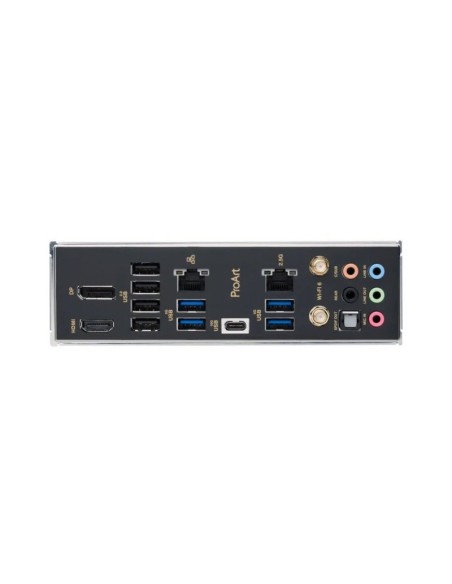

Conectores Traseros

• 1 x USB 3.2 Gen 2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 1 x Intel® 1Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Factor de forma

• ATX ( 30.5 x 24.4 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/proart/proart-b760-creator-wifi/techspec/
