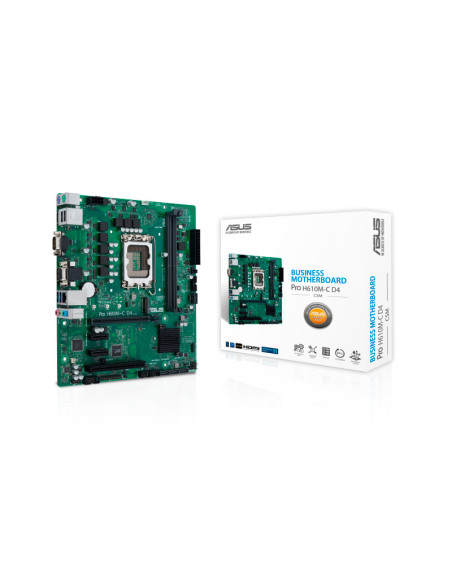

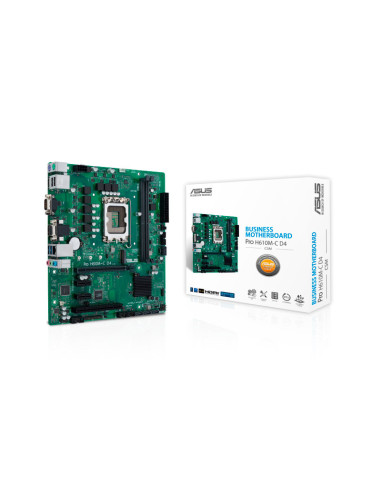

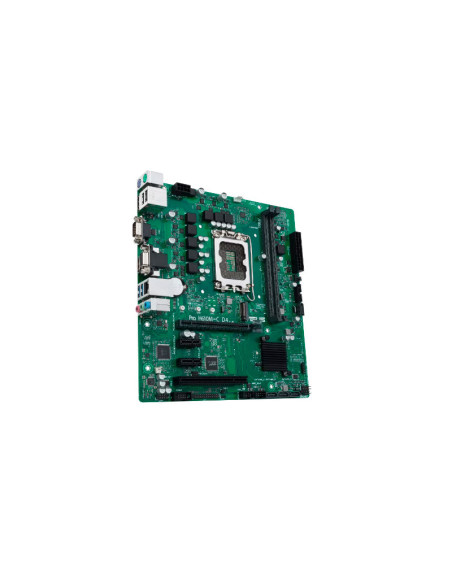

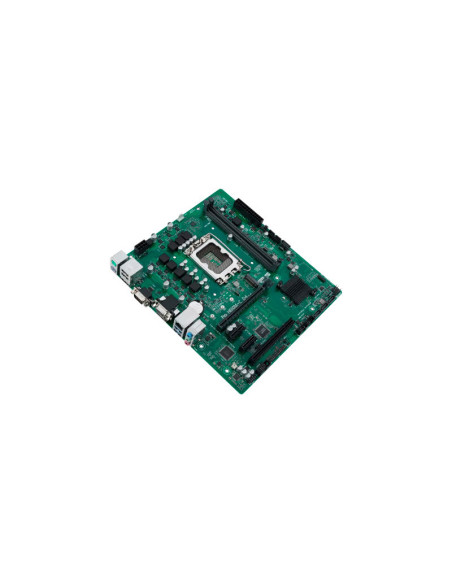

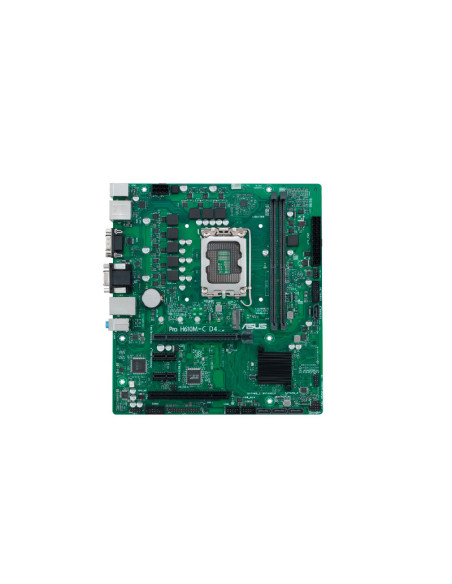

Asus Pro H610M-C D4 [CSM] Micro-ATX Intel Socket 1700

Procesador

• Intel Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel H610

Memoria

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 3.0 x1 slots
• 1 x PCI slot

Gráficos

• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

Conectividad y redes

• 1 x Intel® 1Gb Ethernet
• ASUS LANGuard

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x Clear CMOS header
• 1 x Chassis Intrude header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM debug header
• 1 x LPT header
• 1 x Mono-out header( with Apm IC)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

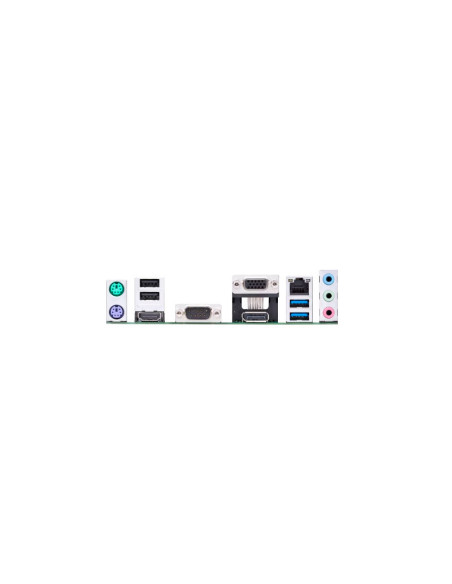

Conectores Traseros

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI® port
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x COM port
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Factor de forma

• mATX ( 24.4 cm x 22 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/business/pro-h610m-c-d4-csm/techspec/
