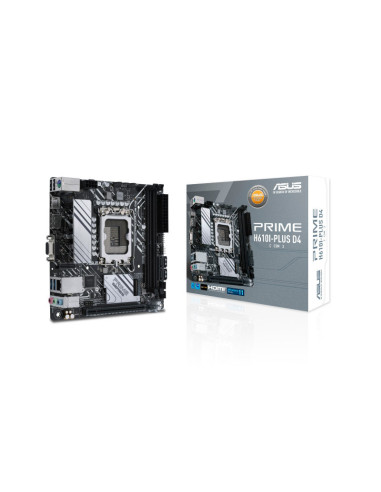

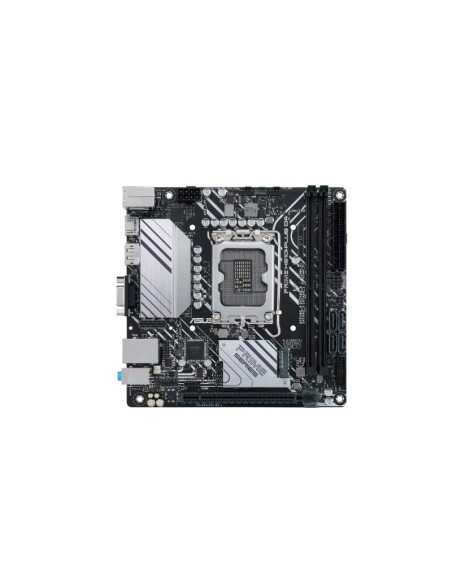

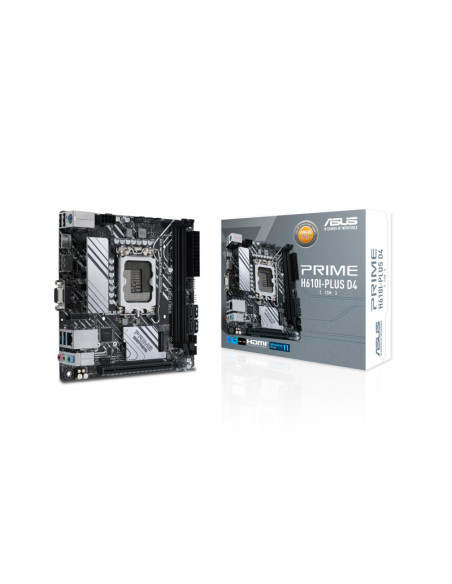

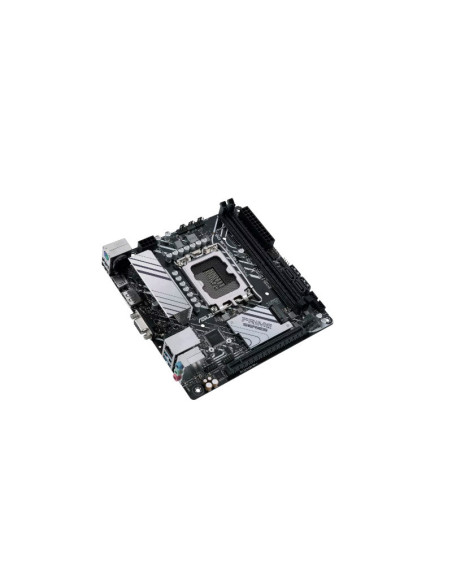

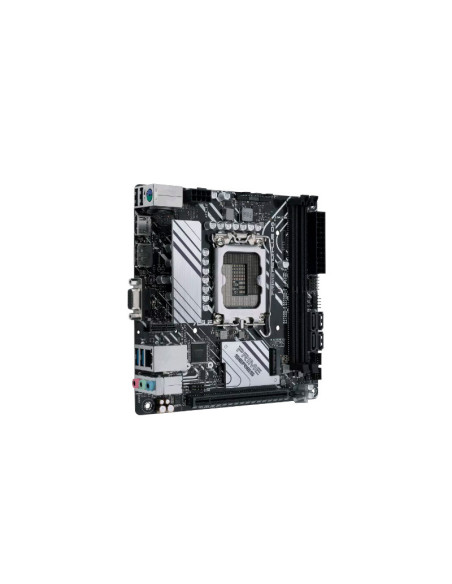

Asus Prime H610I-PLUS D4 [CSM] Mini-ITX Intel Socket 1700

Procesador

• Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel H610

Memoria

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 4.0 x16 slot

Gráficos

• 1 x DisplayPort
• 1 x D-Sub
• 1 x HDMI

Almacenamiento

• M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 1Gb Ethernet
• M.2 slot only (Key E, CNVi & PCIe)*

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x Mono-out header(with Amp IC)
• 1 x SMBUS header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

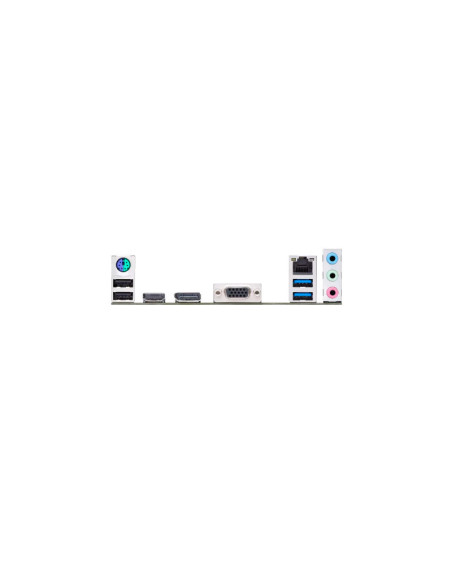

Conectores Traseros

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI® port
• 1 x V-M.2 slot (Key E)
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• Mini ITX ( 17.02 cm x 17.02 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/prime/prime-h610i-plus-d4-csm/techspec/
