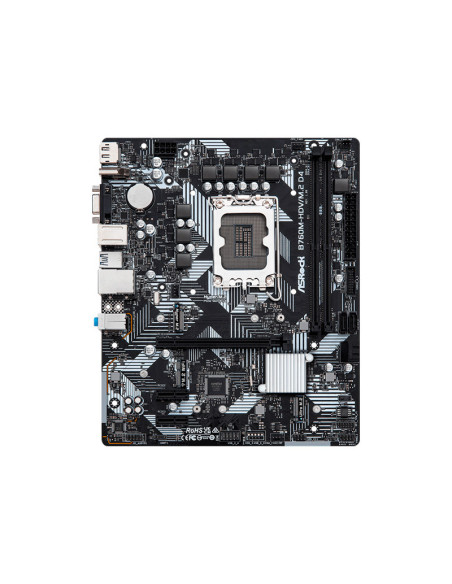

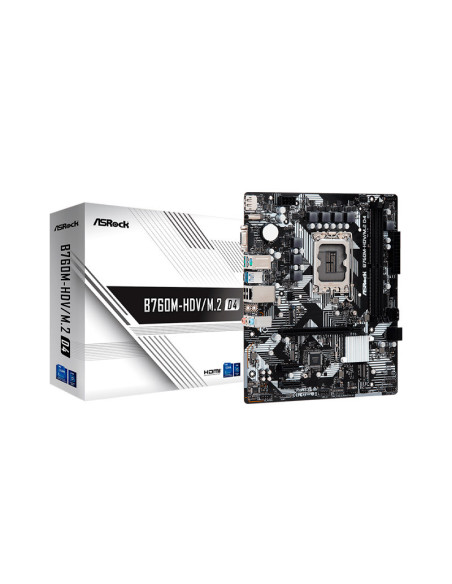

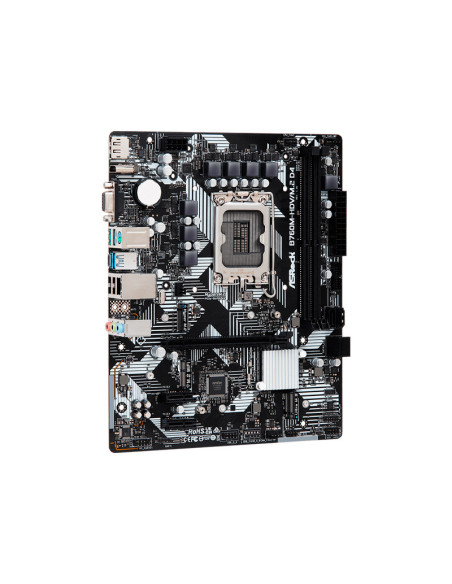

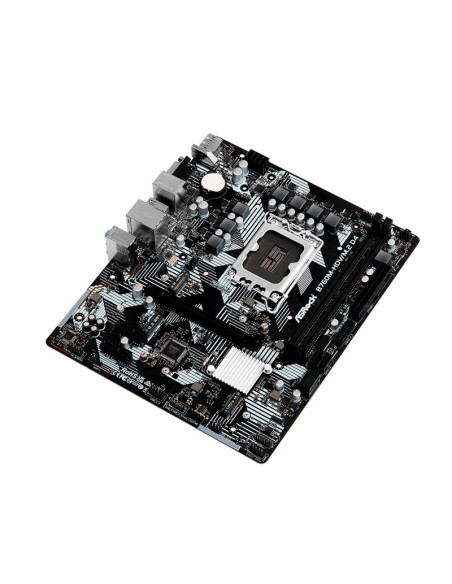

ASRock B760M-HDVM.2 D4 Micro-ATX Intel Socket 1700

Procesador

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

Chipset

• Intel® B760

Memoria

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB*
• Supports Intel® Extreme Memory Profile (XMP) 2.0

Slots

• CPU:
• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Gráficos

• Intel® Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

Almacenamiento

• CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
• 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
• 4 x SATA3 6.0 Gb/s Connectors
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 5 x USB 2.0 (2 Rear, 3 Front)

Audio

• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

Conectividad y redes

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

Conectores Internos

• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

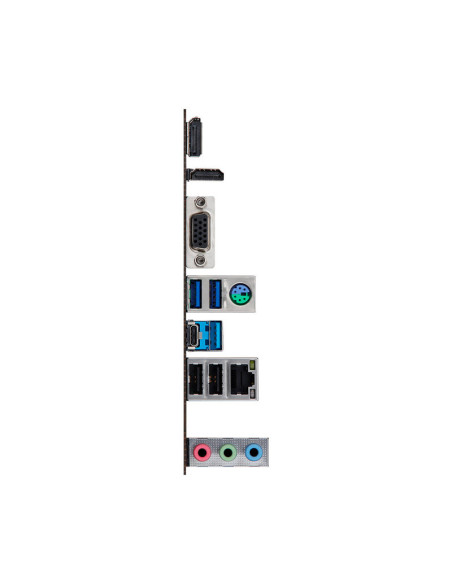

Conectores Traseros

• 2 x Antenna Mounting Points
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

Más información en la web del fabricante.

• Más información en la web del fabricante: https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification
