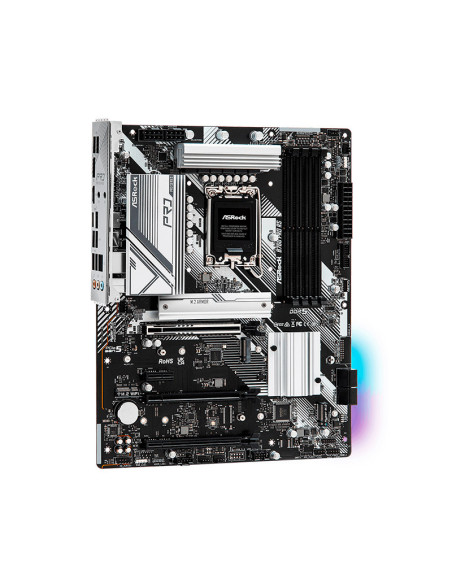

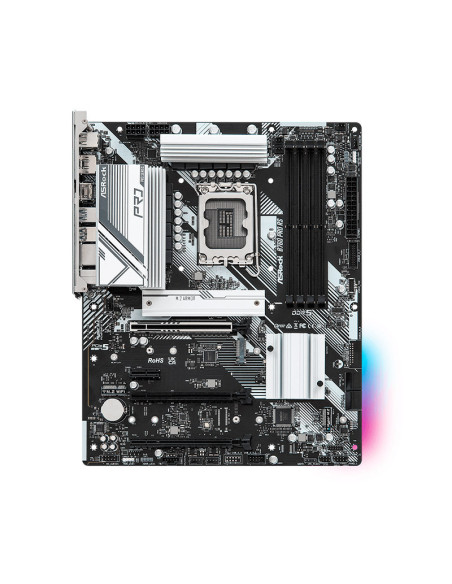

AsRock B760 Pro RS ATX Intel Socket 1700

Procesador

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)

Chipset

• Intel B760

Memoria

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
• Max. capacity of system memory: 192GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0

Slots

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
• 1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode
• 1 x PCIe 3.0 x1 Slot (PCIE2)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
• Supports AMD CrossFire™

Gráficos

• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Almacenamiento

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
• 4 x SATA3 6.0 Gb/s Connectors
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 4 x USB 2.0 (2 Rear, 2 Front)

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Conectividad y redes

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software

Conectores Internos

• 1 x eDP Signal Connector
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 2 x RGB LED Headers
• 2 x Addressable LED Headers
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

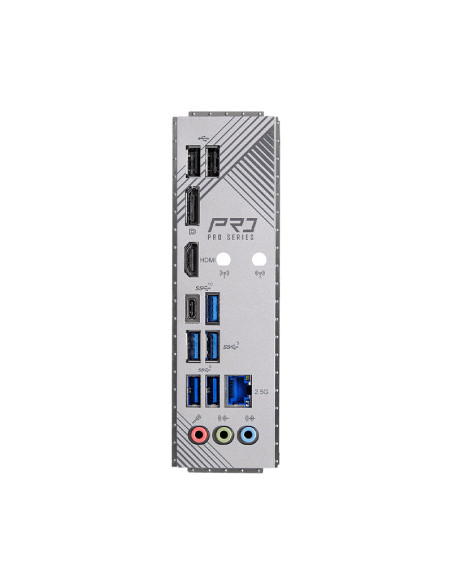

Conectores Traseros

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Factor de forma

• ATX (30.5 x 24.4 cm)

Más información en la web del fabricante: https://www.asrock.com/mb/Intel/B760%20Pro%20RS/#Specification
