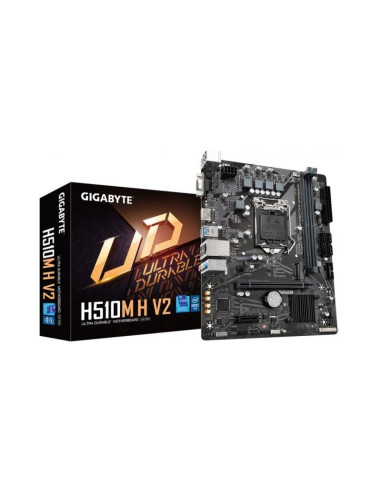

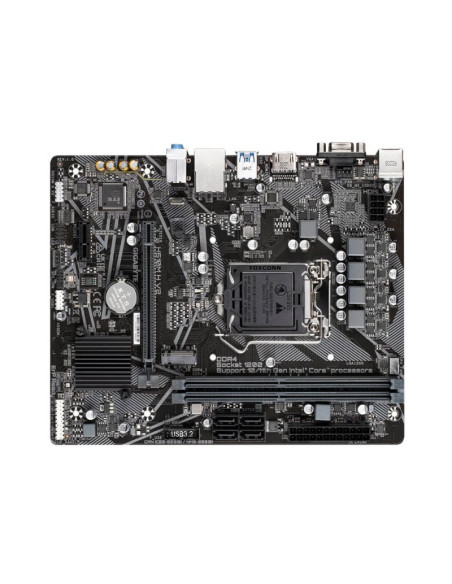

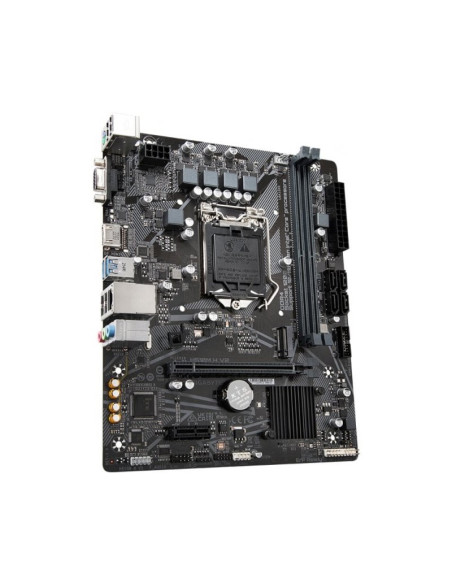

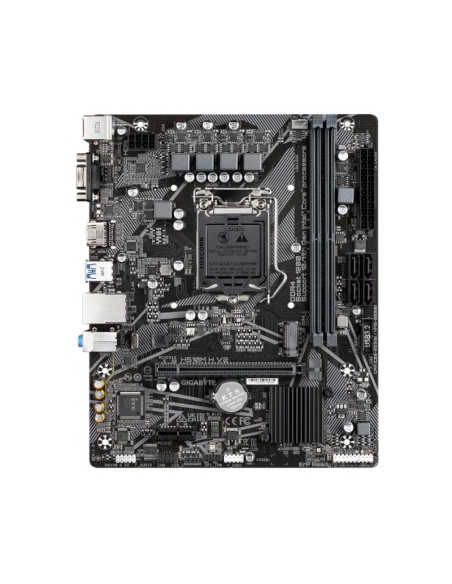

Gigabyte H510M H v2 Micro-ATX Intel Socket 1200

Procesador

• 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
• 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors

Chipset

• H470 Express Chipset

Memoria

• Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• Support for DDR4 2933/2666/2400/2133 MHz memory modules
• Support for DDR4 2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Gráficos

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Almacenamiento

• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

USB

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x system fan header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper

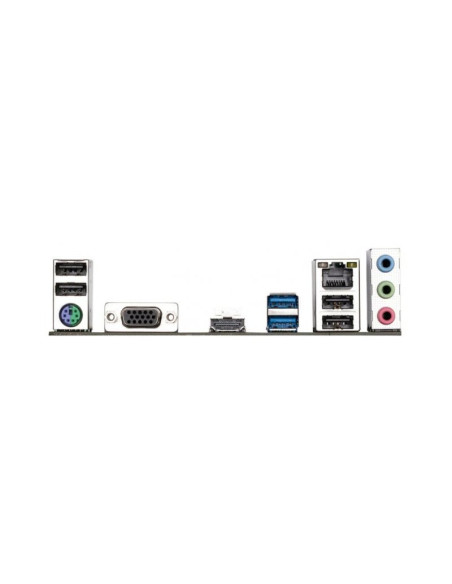

Conectores Traseros

• 1 x PS/2 (Teclado / Ratón)
• 1 x VGA (D-Sub)
• 1 x HDMI
• 2 x USB 3.2 (Gen 1) Tipo A
• 4 x USB 2.0
• 1 x RJ45 (GBLAN 1GbE)
• 3 x Jack 3.5mm

Factor de forma

• Micro-ATX (22.6 x 18.5cm)

Más información en la web del fabricante: https://www.gigabyte.com/Motherboard/H510M-H-V2-rev-10/sp#sp
