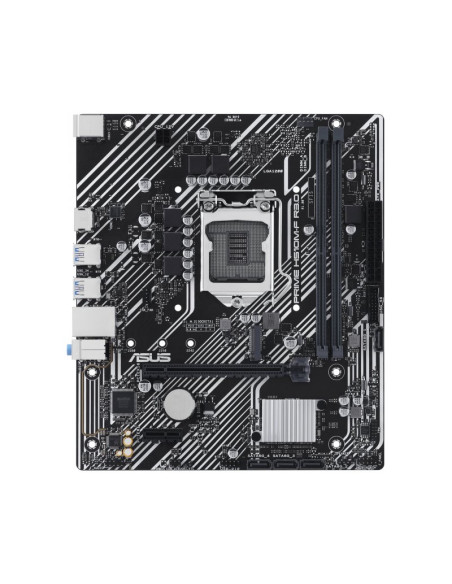

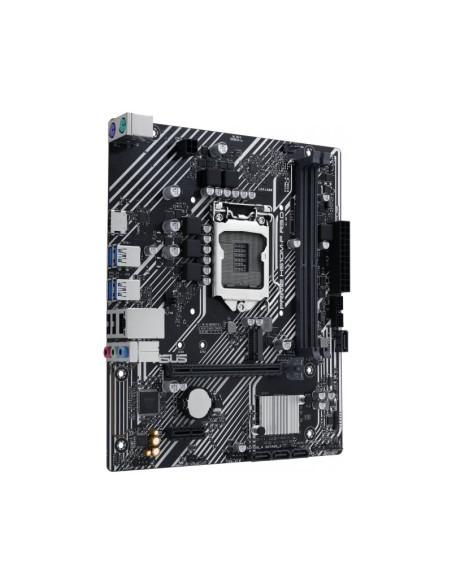

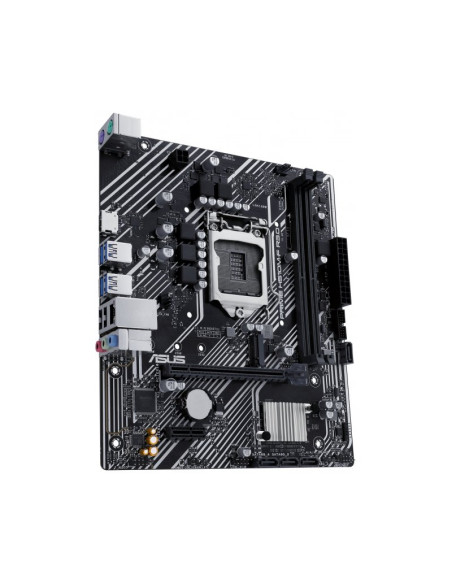

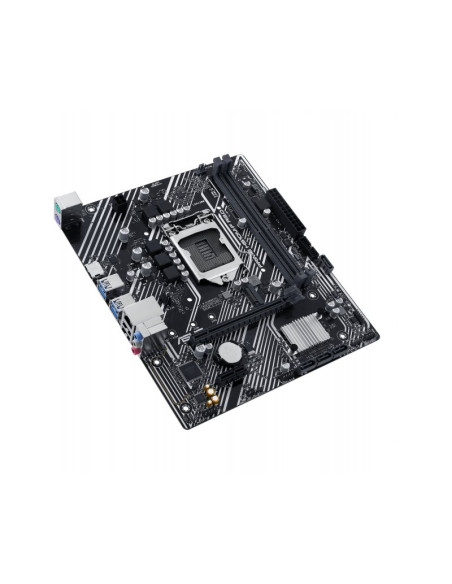

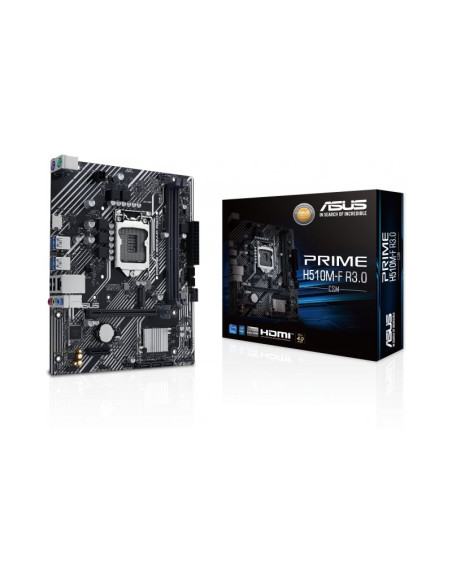

Asus Prime H510M-F R3.0-CSM Micro-ATX Socket 1200

Procesador

• Intel Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset

• Intel H470

Memoria

• 2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 4.0/3.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Gráficos

• 1 x HDMI

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

USB

• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 1Gb Ethernet

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 4-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 5Gbps header supports 2 additional 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x Speaker header
• 1 x SPI TPM header (14-1 pin)
• 1 x 10-1 pin System Panel header

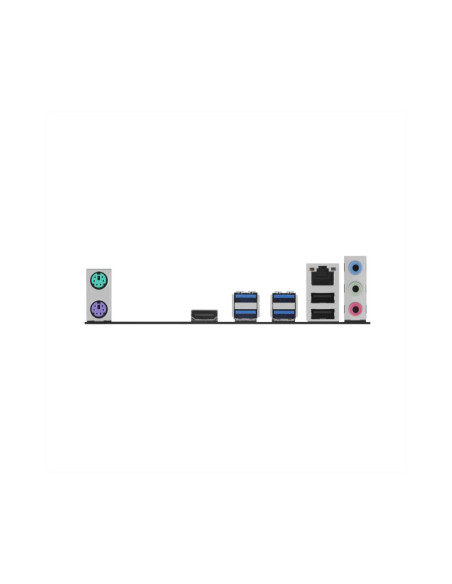

Conectores Traseros

• 4 x USB 5Gbps ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x HDMI™ port
• 1 x Realtek 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Factor de forma

• mATX ( 22.6 cm x 19.6 cm )

Más información en la web del fabricante:

• https://www.asus.com/es/motherboards-components/motherboards/csm/prime-h510m-f-r3-0-csm/techspec/
