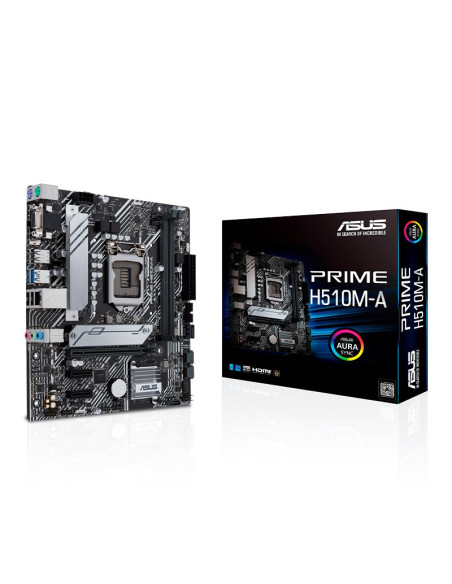

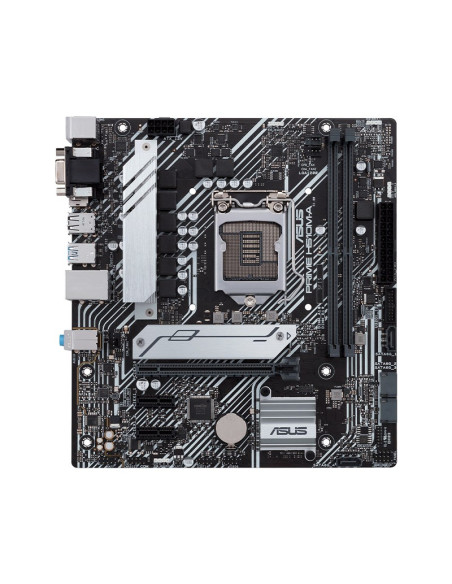

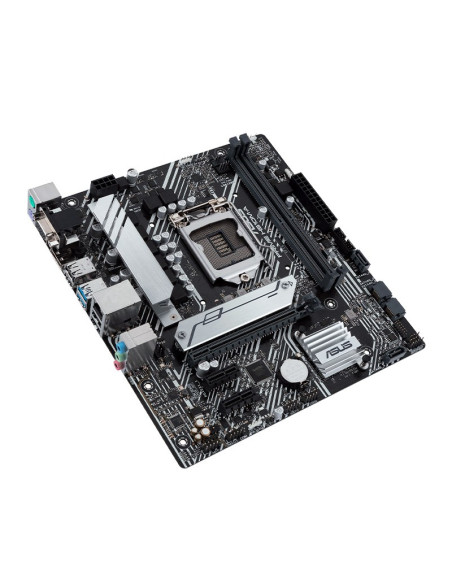

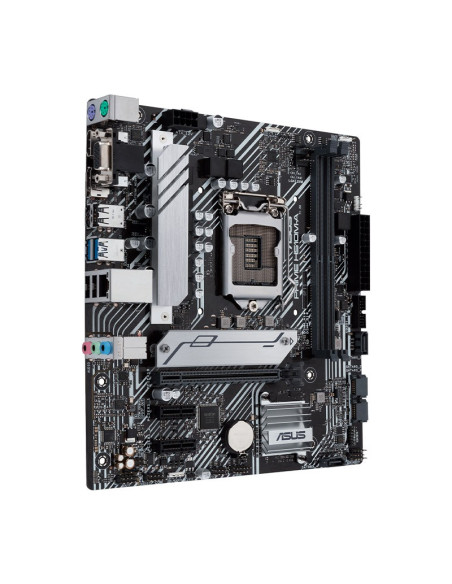

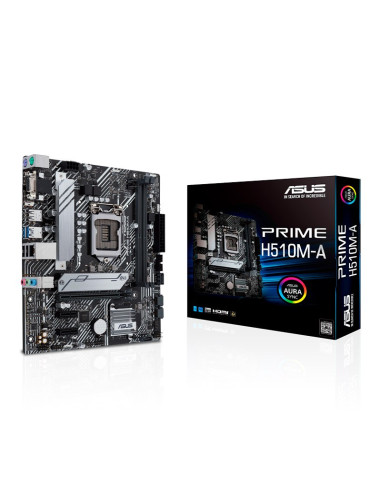

Asus Prime H510M-A Micro-ATX Intel Socket 1200

Procesador

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

• Intel® H510 Chipset

Memoria

• 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Slots

• 1 x PCIe 4.0/3.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Gráficos

• 1 x DisplayPort 1.4
• 1 x D-Sub
• 1 x HDMI 2.0

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Conectores USB

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC

Conectividad y redes

• 1 x Intel® I219-V 1Gb Ethernet

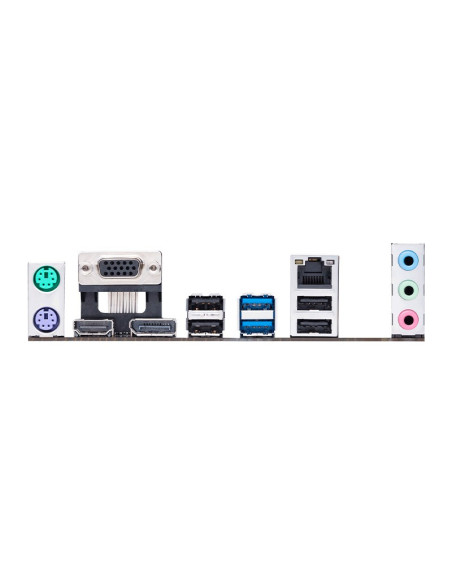

Conectores internos

• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI™ port
• 1 x Intel® I219-V 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Conectores traseros

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Factor de forma

• mATX (22,6 x 21.1 cm)
