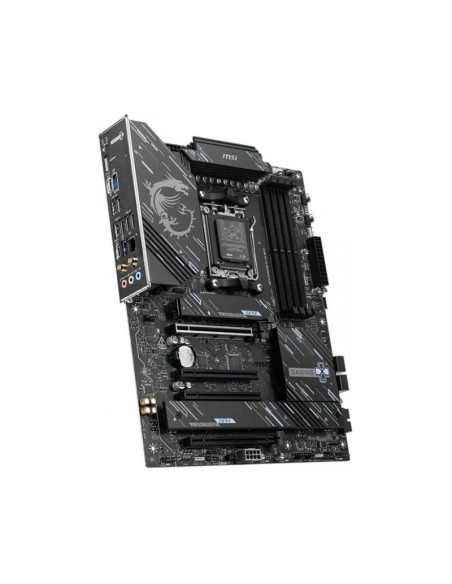

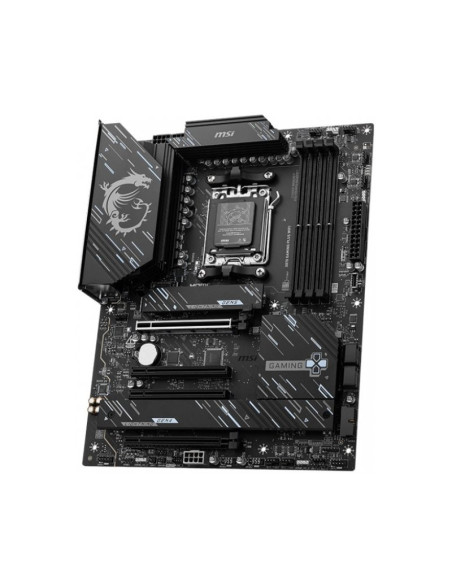

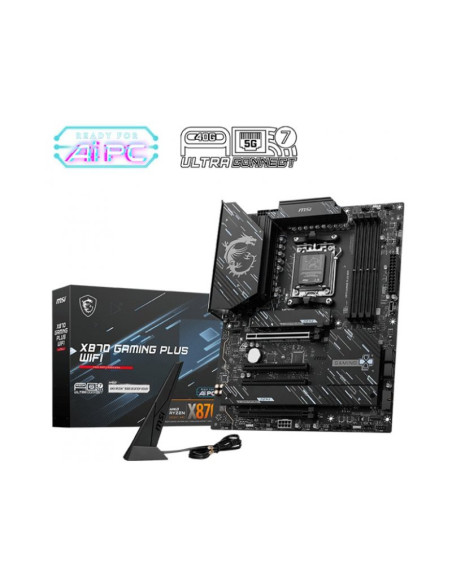

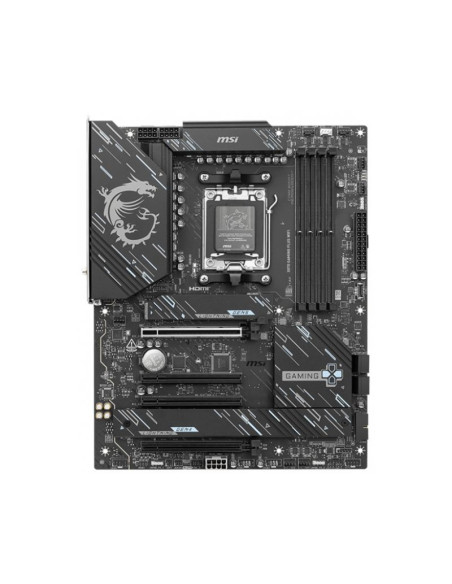

MSI X870 Gaming Plus WiFi ATX AMD Socket AM5

Procesador

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Chipset

• AMD X870

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Gráficos

• 1 x HDMI™
• 1 x Type-C DisplayPort

Almacenamiento

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• 4x SATA 6G
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 2 x USB 5Gbps Type A (Rear)
• 2 x USB 5Gbps Type A (Front)
• 2 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Front)
• 1 x USB 20Gbps Type C (Rear)
• 1 x USB 40Gbps Type C (Rear)

Audio

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Conectividad y redes

• Realtek® 8126VB 5G LAN
• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1 x Power Connector(ATX_PWR)
• 2 x Power Connector(CPU_PWR)
• 1 x Power Connector(PCIE_PWR 8pin)
• 1 x CPU Fan
• 1 x Combo Fan (Pump_Sys Fan)
• 6 x System Fan
• 1 x EZ Conn-header (JAF_1)
• 2 x Front Panel (JFP)
• 1 x Chassis Intrusion (JCI)
• 1 x Front Audio (JAUD)
• 1 x Tuning Controller connector(JDASH)
• 3 x Addressable V2 RGB LED connector (JARGB_V2)
• 1 x RGB LED connector(JRGB)
• 1 x TPM pin header(Support TPM 2.0)
• 4 x USB 2.0 ports
• 2 x USB 5Gbps Type A ports
• 1 x USB 10Gbps Type C ports

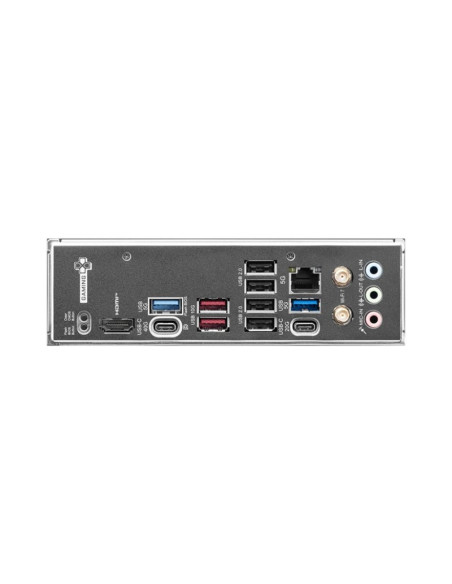

Conectores Traseros

• 1 x HDMI
• 2 x USB Tipo A (5 Gbps)
• 1 x USB Tipo C (40 Gbps)
• 2 x USB Tipo A (10 Gbps)
• 4 x USB 2.0 Tipo A
• 1 x Ethernet 5GbE
• 1 x USB Tipo C (20 Gbps)
• 2 x Antena (WiFi / Bluetooth)
• 3 x Jack 3.5mm

Factor de forma

• ATX (24.38 x 30.48 mm)
