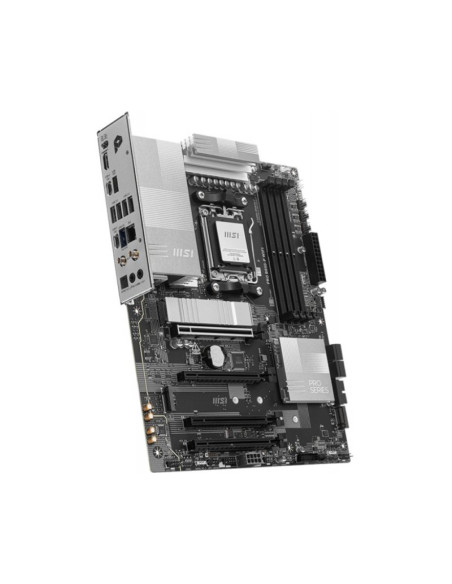

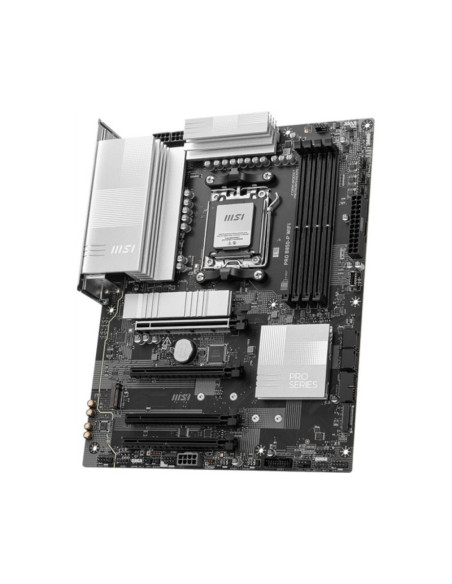

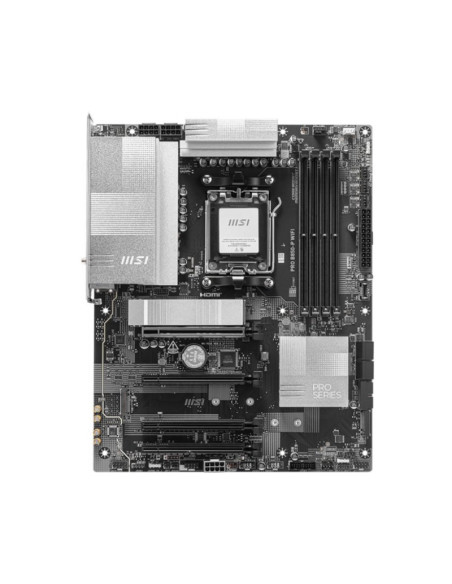

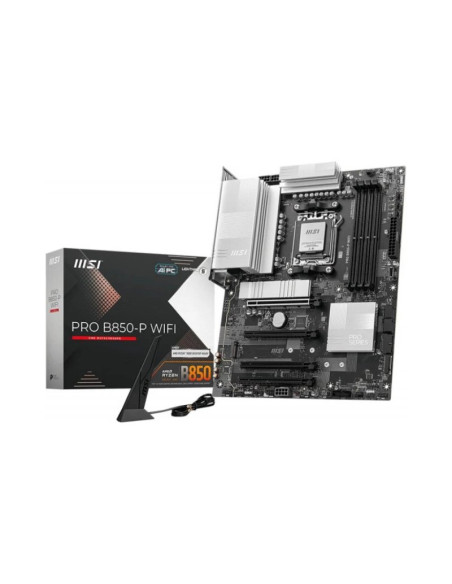

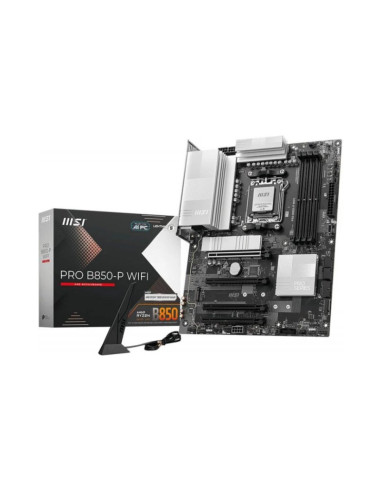

MSI Pro B850-P WiFi ATX AMD Socket AM5

Procesador

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
• Socket AM5

Chipset

• AMD B850

Memoria

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 4800+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Slots

• 4x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

Gráficos

• 1x HDMI™
• Support HDMITM 2.1, maximum resolution of 4K 60Hz

Almacenamiento

• 3x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
• 4x SATA 6G
• M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
• M2_2 slot
• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)
• 1x USB 5Gbps Type A (Rear)
• 4x USB 5Gbps Type A (Front)
• 1x USB 5Gbps Type C (Front)
• 1x USB 10Gbps Type A (Rear)
• 2x USB 10Gbps Type C (Rear)

Audio

• Realtek® ALC897
• 7.1-Channel High Definition Audio

Conectividad y redes

• Realtek® 8126VB 5G LAN
• Wi-Fi 7
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth® 5.4, MLO, 4KQAM

Conectores Internos

• 1x Power Connector(ATX_PWR)
• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)
• 1x CPU Fan
• 1x Combo Fan (Pump_Sys Fan)
• 4x System Fan
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x Com Port (JCOM)
• 1x Tuning Controller connector(JDASH)
• 3x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)
• 1x TPM pin header(Support TPM 2.0)
• 4x USB 2.0 ports
• 4x USB 5Gbps Type A ports
• 1x USB 5Gbps Type C ports

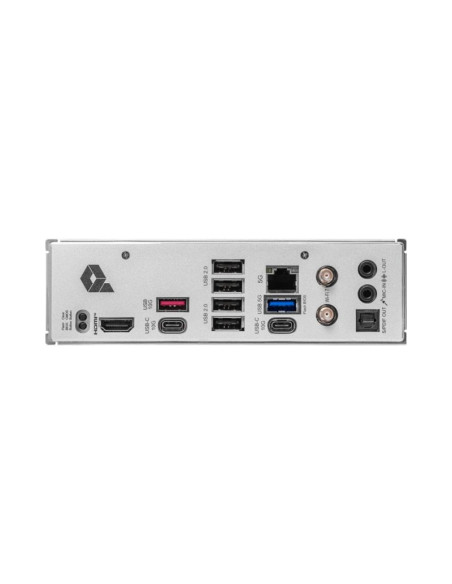

Conectores Traseros

• Clear CMOS Button
• USB 10Gbps Type-A
• USB 2.0
• 5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
• Flash BIOS Button
• HDMI™
• USB 10Gbps Type-C
• USB 5Gbps Type-A
• USB 10Gbps Type-C
• S/PDIF OUT

Factor de forma

• ATX
• 243.84 mm x 304.8 mm

Más información en la web del fabricante:

• https://www.msi.com/Motherboard/PRO-B850-P-WIFI/Specification
