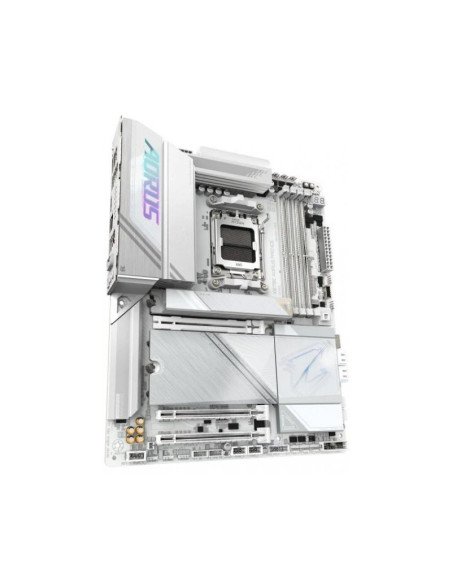

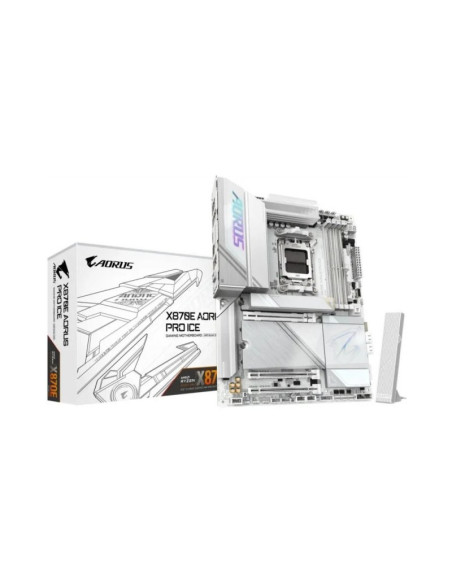

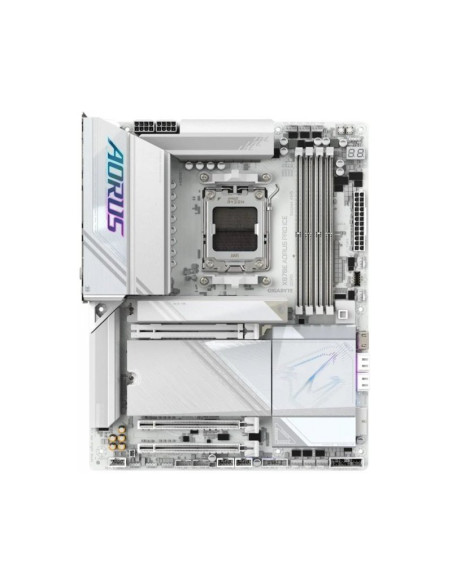

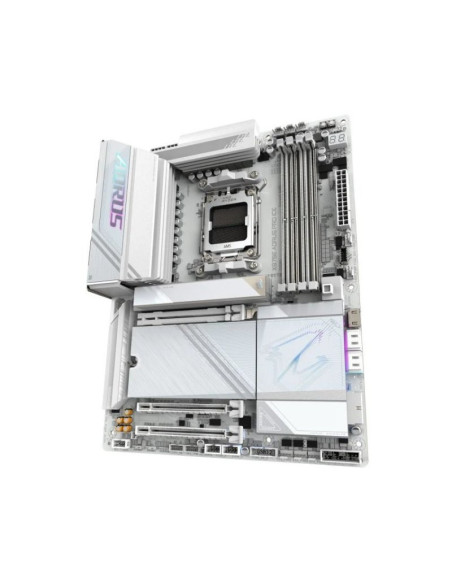

Gigabyte X870E AORUS Pro ICE ATX AMD Socket AM5

Procesador

• AMD Socket AM5, support for:
• AMD Ryzen™ 9000 Series Processors/
• AMD Ryzen™ 8000 Series Processors/
• AMD Ryzen™ 7000 Series Processors

Chipset

• AMD X870E

Memoria

• Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
• When theM2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
• Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Gráficos

• Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
• 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
• Integrated Graphics Processor with AMD Radeon™ Graphics support:
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting
• Socket 3, M key, type 22110/2280 SSDs:
• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.
• 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU+ASMedia USB4® controller:
• 2 x USB4® USB Type-C® ports on the back panel
• CPU:
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• Chipset:
• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Qualcomm® Wi-Fi 7 QCNCM865
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11be 320MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 4 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 2 x USB 3.2 Gen 1 headers
• 2 x USB 2.0/1.1 headers
• 1 x noise detection header
• 1 x HDMI port (Note)
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)
• 1 x power button
• 1 x reset button
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper

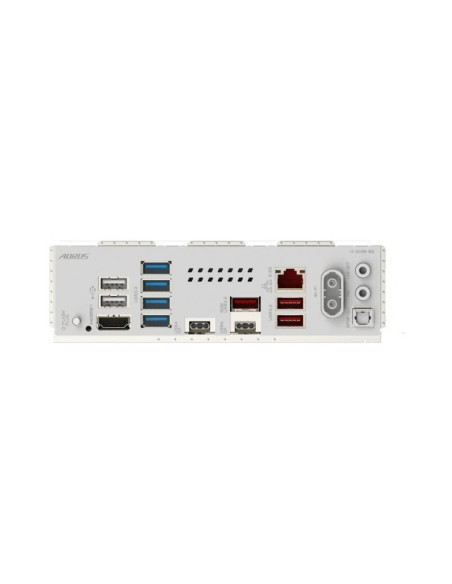

Conectores Traseros

• 1 x Q-Flash Plus button
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port (Note)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB4® USB Type-C® port (DisplayPort (Note))
• 3 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Factor de forma

• ATX Form Factor; 30.5cm x 24.4cm

Más información en la web del fabricante:

• https://www.gigabyte.com/Motherboard/X870E-AORUS-PRO-ICE/sp#sp
