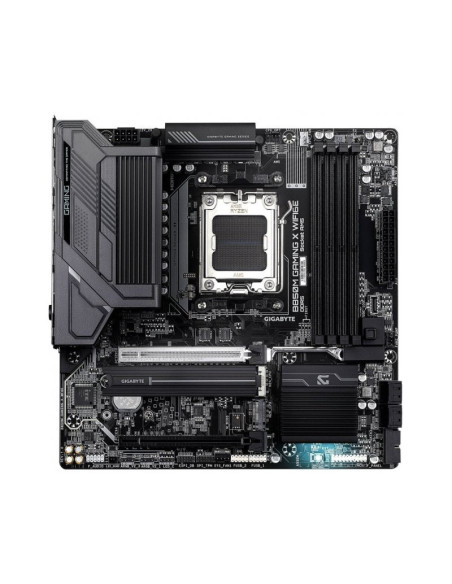

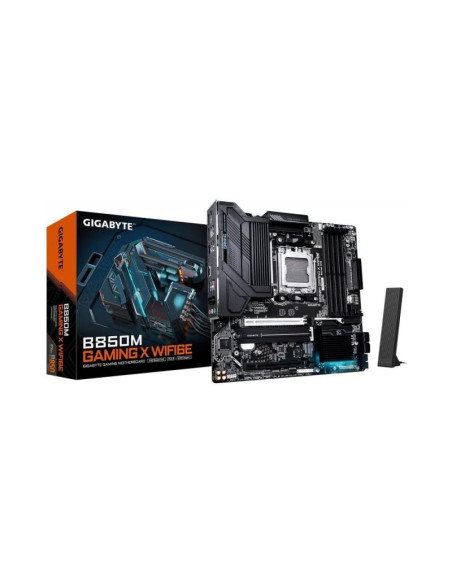

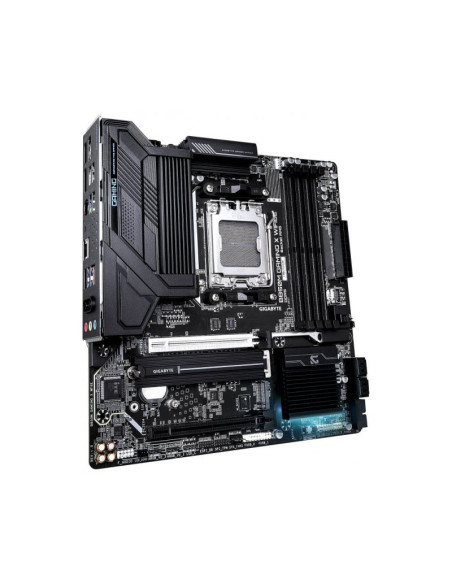

Gigabyte B850M Gaming X WIFI6E Micro-ATX AMD Socket AM5

Procesador

• AMD Socket AM5
• AMD Ryzen™ 9000 / AMD Ryzen™ 8000 / AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B850

Memoria

• Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Gráficos

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on Ryzen™ 9000)
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 2.0/1.1 ports on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
• Realtek® Wi-Fi 6E RTL8852CE
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

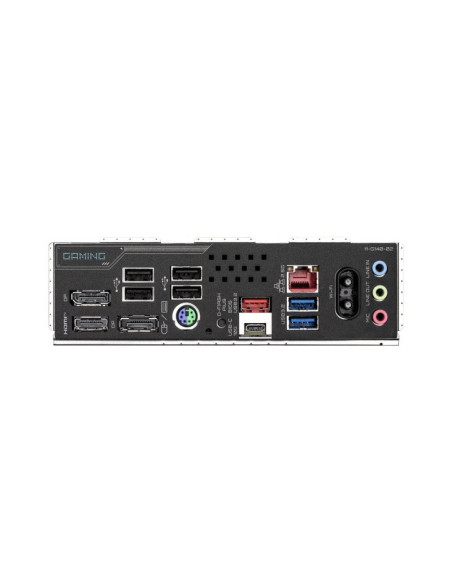

Conectores Traseros

• 1 x HDMI port (Note)
• 2 x DisplayPorts (Note)
• 1 x Q-Flash Plus button
• 1 x PS/2 keyboard/mouse port
• 1 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 3 x audio jacks

Factor de forma

• Micro ATX (24.4 x 24.4cm)
