Gigabyte B850M DS3H Micro-ATX AMD Socket AM5

0 Reviews
1.308,91 €
IVA incluido
¡En stock! Recíbelo en 24/48h

La Gigabyte B850M DS3H es una tarjeta madre excepcional diseñada para aquellos que buscan tanto rendimiento como valor. Equipado con el chipset AMD B850 y soporte para los procesadores Ryzen™ de la serie 9000, 8000 y 7000, este producto ofrece una plataforma sólida para satisfacer tus necesidades de computación, ya sea para gaming, trabajo o entretenimiento.

P/N: B850M DS3H
EAN: 4719331866518
Ref.: PB02GB160

Opciones de financiación

Financiación estándar


En términos de memoria, la Gigabyte B850M DS3H no se queda atrás. Con soporte para módulos de memoria DDR5 a velocidades asombrosas de 8200 MT/s con overclocking, y hasta 256 GB de capacidad total de sistema, esta tarjeta madre ofrece una experiencia fluida y rápida. Además, compatibilidad con AMD EXtended Profiles for Overclocking (AMD EXPO™) y Extreme Memory Profile (XMP) garantizan un control y rendimiento personalizados.

En cuanto al almacenamiento, ofrece dos conectores M.2 integrados en la CPU para asegurar un acceso veloz a tus datos, permitiendo la instalación de SSDs de tipo 25110/22110/2280. Adicionalmente, cuatro conectores SATA 6Gb/s proporcionan múltiples opciones para configuraciones de almacenamiento, incluyendo soporte para RAID 0, RAID 1, y RAID 10 para dispositivos de almacenamiento SATA y NVMe, siendo el RAID 5 exclusivo para procesadores Ryzen™ 9000.

La conectividad de esta tarjeta madre es igualmente impresionante, con múltiples opciones de USB que incluyen un puerto USB Type-C® con soporte para USB 3.2 Gen 2, ideal para dispositivos modernos. La integración del chip de red Realtek® 2.5GbE LAN asegura velocidades rápidas y estables para tus actividades en línea.

Procesador

  • AMD Socket AM5
  • AMD Ryzen™ 9000 / AMD Ryzen™ 8000 / AMD Ryzen™ 7000 Series Processors

Chipset

  • AMD B850

Memoria

  • Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Gráficos

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Almacenamiento

  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
  • 4 x SATA 6Gb/s connectors
  • RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on AMD Ryzen™ 9000)
  • RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

  • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 4 x USB 2.0/1.1 ports on the back panel
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

Conectividad y redes

  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Conectores Internos

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header
  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x RGB LED strip header
  • 4 x SATA 6Gb/s connectors
  • 2 x M.2 Socket 3 connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  • 1 x reset button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

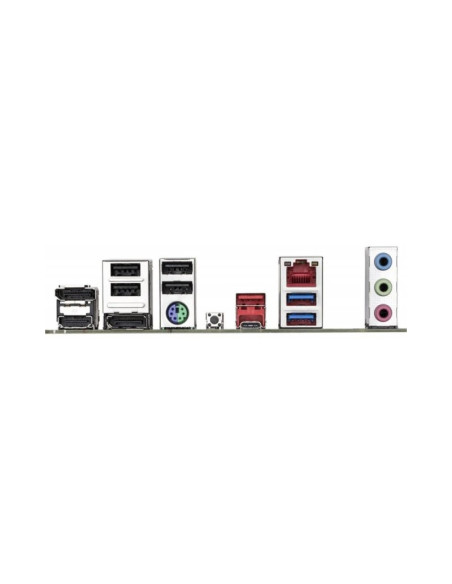

Conectores Traseros

  • 1 x HDMI port (Note)
  • 2 x DisplayPorts (Note)
  • 1 x Q-Flash Plus button
  • 1 x PS/2 keyboard/mouse port
  • 1 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C® port, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

Factor de forma

  • Micro ATX (24.4 x 24.4cm)
