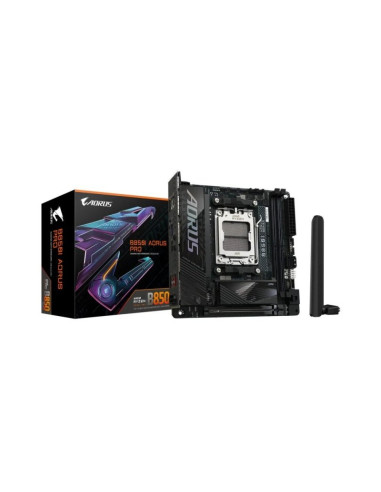

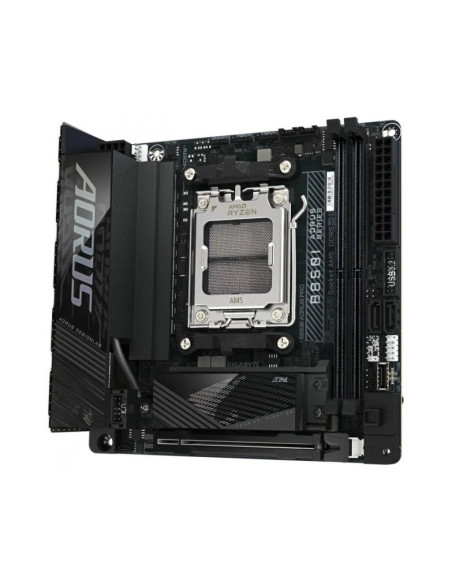

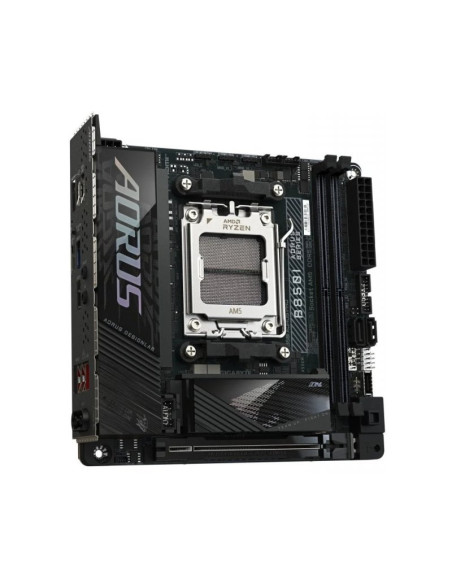

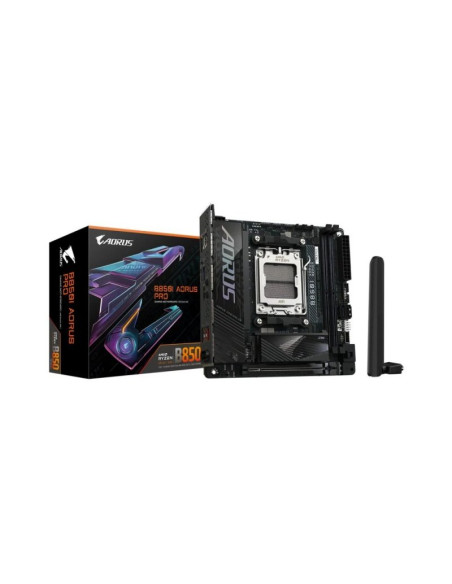

Gigabyte B850I AORUS Pro Mini-ITX AMD Socket AM5

Procesador

• AMD Ryzen™ 9000 / AMD Ryzen™ 8000 / AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B850

Memoria

• Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, integrated in the CPU

Gráficos

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
• 2 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Audio

• Realtek® ALC4080 CODEC
• High Definition Audio
• 2-channel

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Realtek® Wi-Fi 7 RTL8922AE
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 2 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x speaker header
• 1 x front panel audio header (routed from the adapter card on the rear panel)
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x reset jumper
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

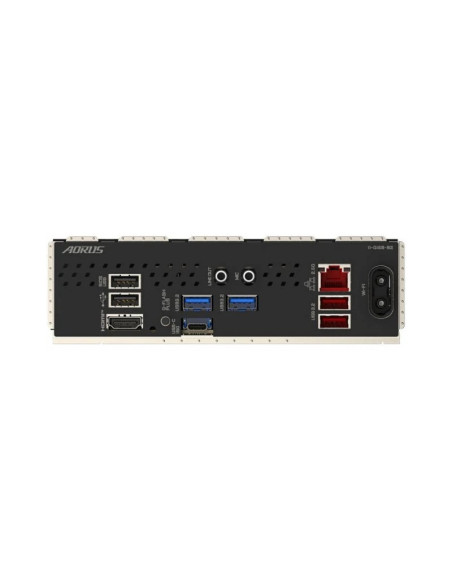

Conectores Traseros

• 1 x Q-Flash Plus button
• 1 x HDMI port
• 2 x antenna connectors (2T2R)
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x audio jacks

Factor de forma

• Mini-ITX (17 x 17cm)
