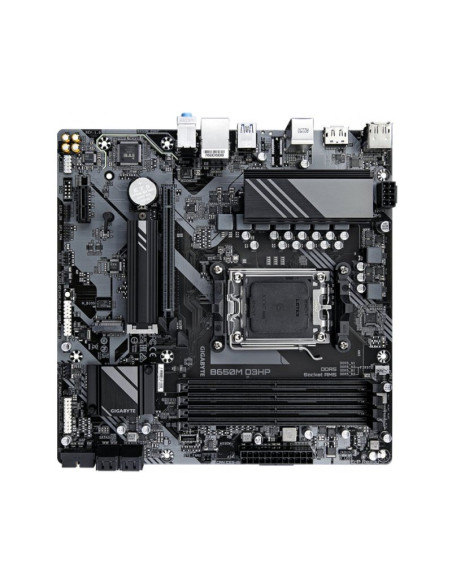

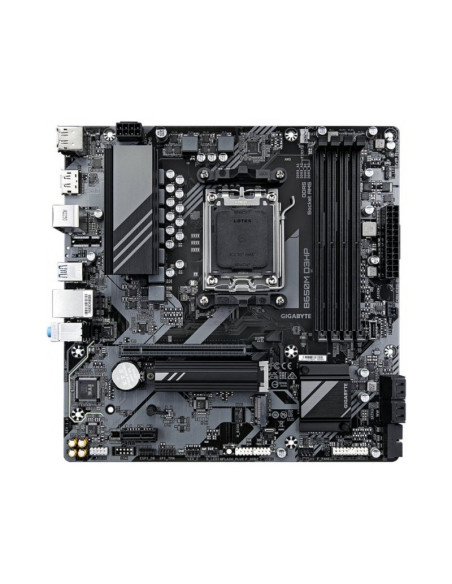

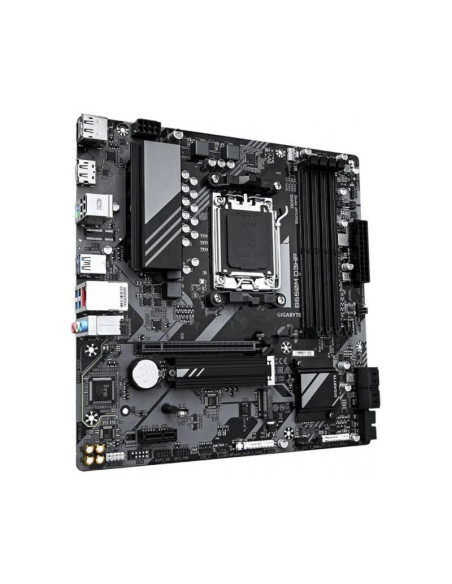

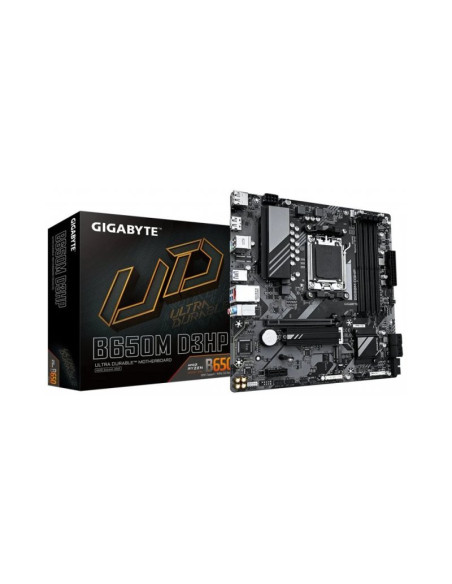

Gigabyte B650M D3HP Micro-ATX AMD Socket AM5

Procesador

• AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

Chipset

• AMD B650

Memoria

• Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Gráficos

• 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 port on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 1 x RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

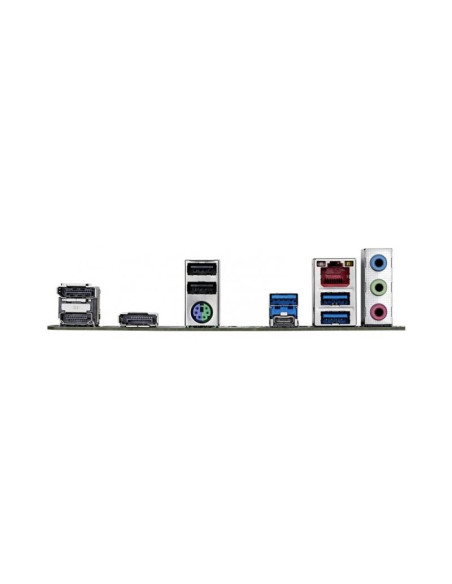

Conectores Traseros

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 3 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port
• 2 x DisplayPorts
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• Micro ATX Form Factor; 24.4cm x 24.4cm

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/B650M-D3HP-rev-10/sp#sp
