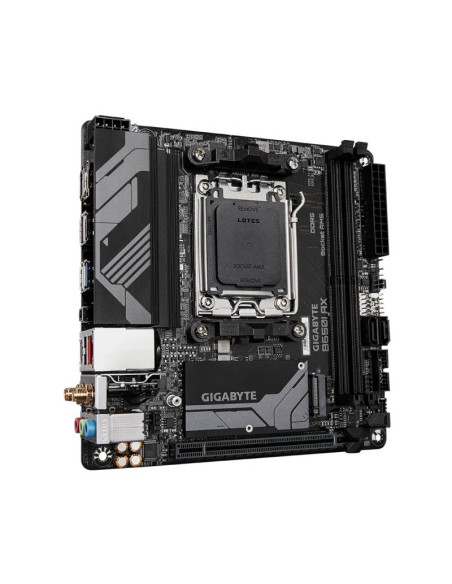

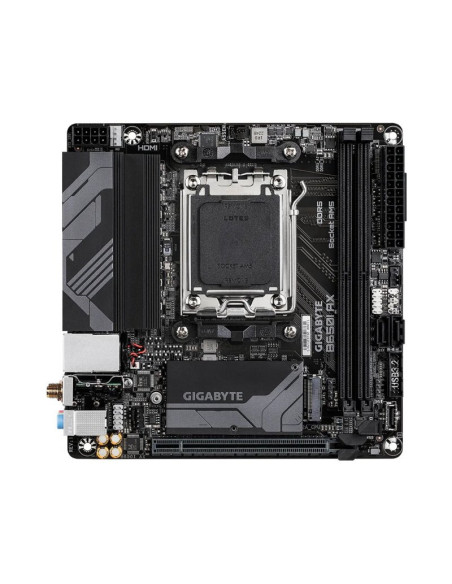

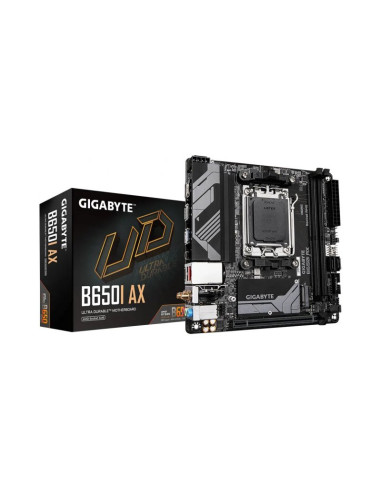

Gigabyte B650I AX Mini-ITX AMD Socket AM5

Procesador

• AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

Chipset

• AMD B650

Memoria

• Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, integrated in the CPU

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 2 x SATA 6Gb/s connectors
• RAID 0 and RAID 1 support for NVMe SSD storage devices
• RAID 0 and RAID 1 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Realtek® Wi-Fi 6E RTL8852CE
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 2 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

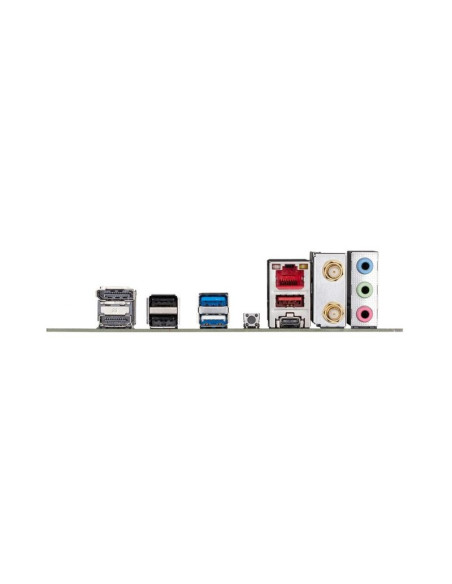

Conectores Traseros

• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x USB 3.2 Gen 1 port
• 3 x USB 2.0/1.1 ports
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

Factor de forma

• Mini-ITX (17.0 x 17.0cm)

Más información en la web del fabricante:

• https://www.gigabyte.com/Motherboard/B650I-AX-rev-10/sp#sp
