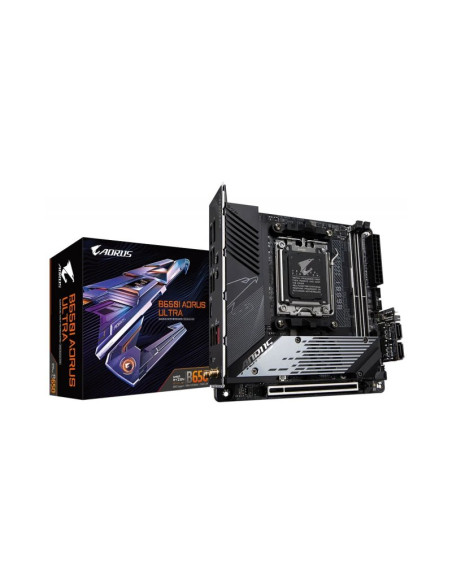

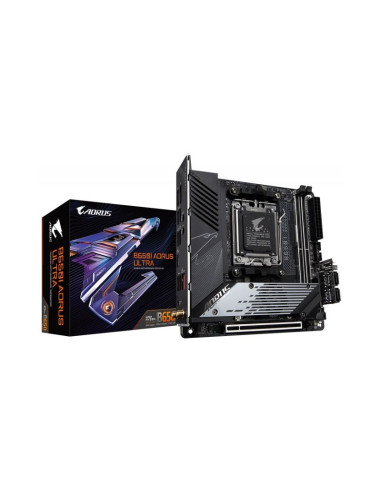

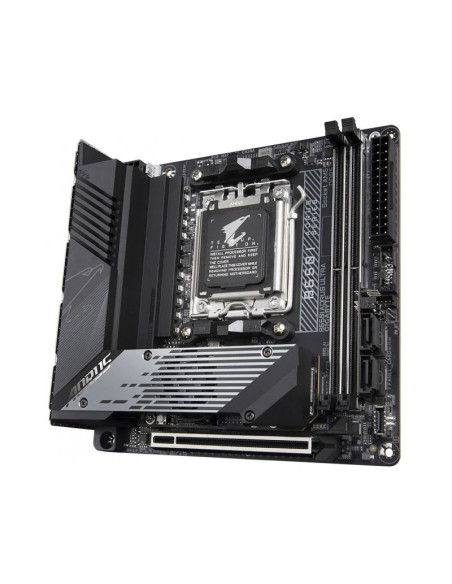

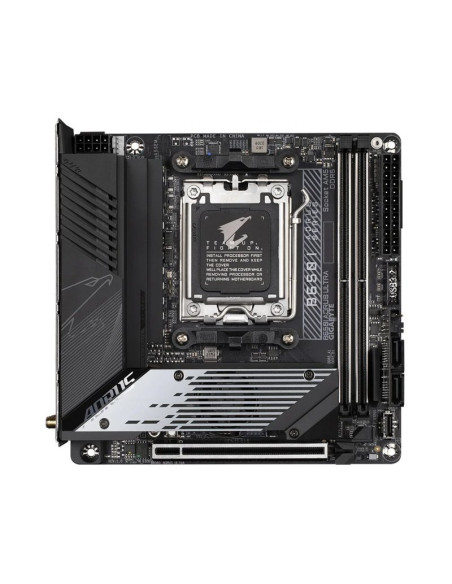

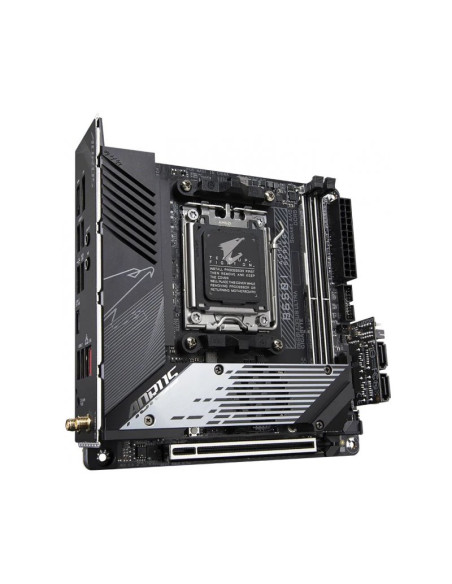

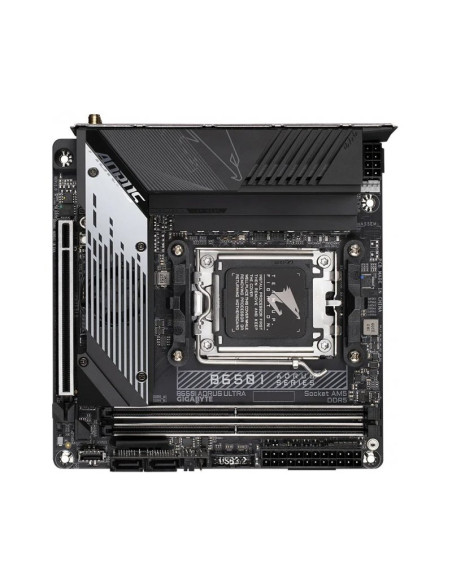

Gigabyte B650I AORUS Ultra Mini-ITX AMD Socket AM5

Procesador

• AMD Ryzen™ 7000/ Ryzen™ 8000

Chipset

• AMD B650

Memoria

• Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Slots

• 1 x PCI Express x16 slot, integrated in the CPU

Almacenamiento

• 1 x M.2 connector on the front of GC-B650I BTB PLUG (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 1 x M.2 connector on the back of GC-B650I BTB PLUG (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/2260 SSDs
• 1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD
• 4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG
• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 2 x USB 2.0/1.1 ports on the back panel

Audio

• Realtek® ALC4080 CODEC
• High Definition Audio
• 2-channel

Conectividad y redes

• Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.2
• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header (SYS_FAN1(Note 1))
• 1 x addressable LED strip header(Note 2)
• 1 x RGB LED strip header(Note 1)
• 3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))
• 4 x SATA 6Gb/s connectors(Note 1)
• 1 x front panel header(Note 1)
• 1 x front panel audio header (routed from the adapter card on the rear panel)
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header(Note 2)
• 1 x reset button(Note 2)
• 1 x reset jumper
• 1 x power switch jumper
• 1 x Clear CMOS jumper

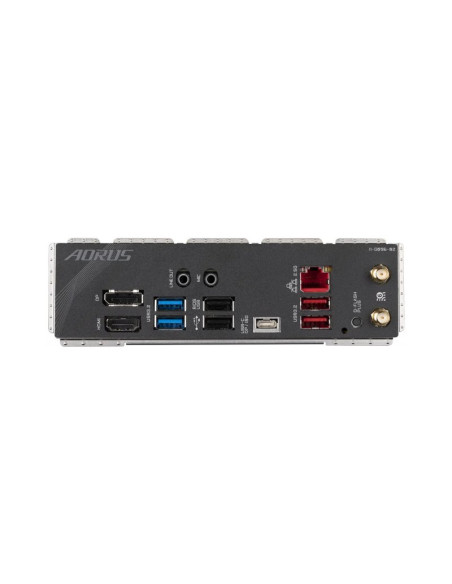

Conectores Traseros

• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 2 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 1 x Q-Flash Plus button
• 2 x audio jacks

Factor de forma

• Mini-ITX (17x17cm)

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/B650I-AORUS-ULTRA/sp#sp
