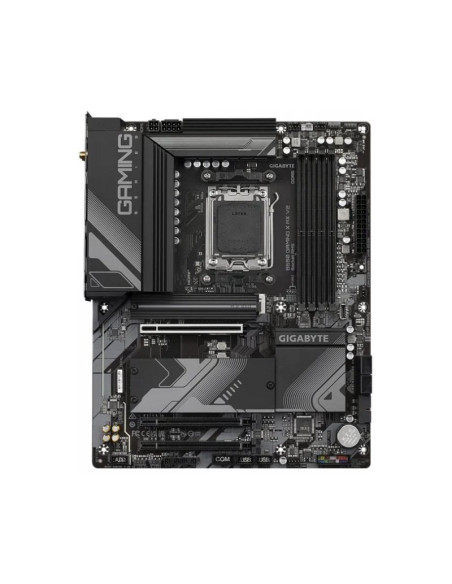

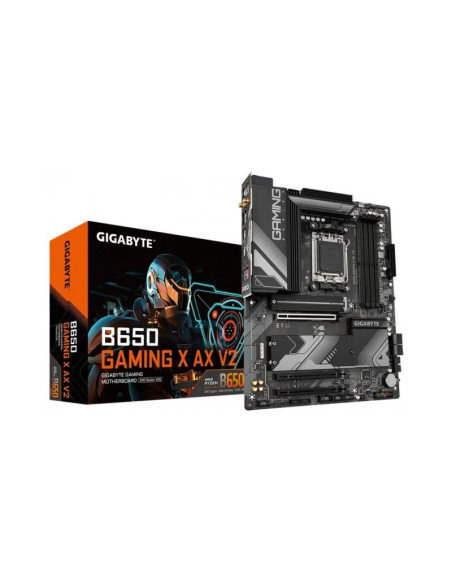

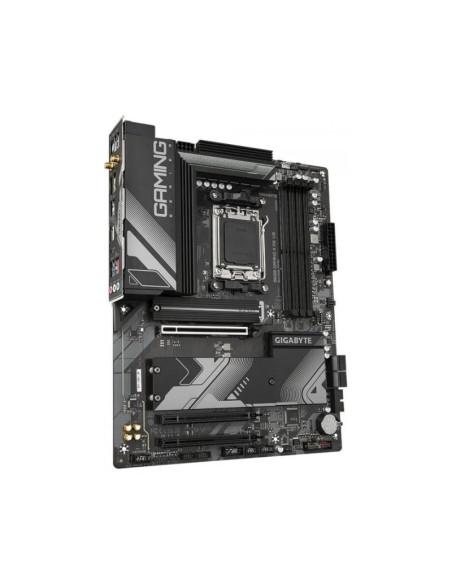

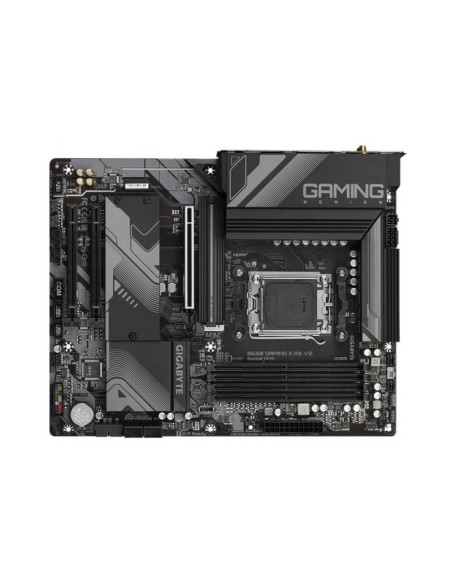

Gigabyte B650 Gaming X AX V2 ATX AMD Socket AM5

Procesador

• AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

Chipset

• AMD B650

Memoria

• Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Conectores USB

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB 3.2 Gen 1 port on the back panel
• 3 x USB 2.0/1.1 ports on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports available through the internal USB headers

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y Redes

• Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 2 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 3 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

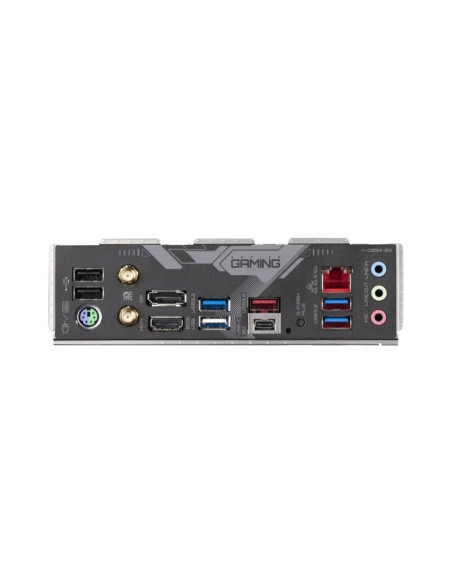

Conectores Traseros

• 2 x SMA antenna connectors (2T2R)
• 1 x Q-Flash Plus button
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 3 x USB 3.2 Gen 1 ports
• 3 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• ATX (30.5cm x 24.4cm)
