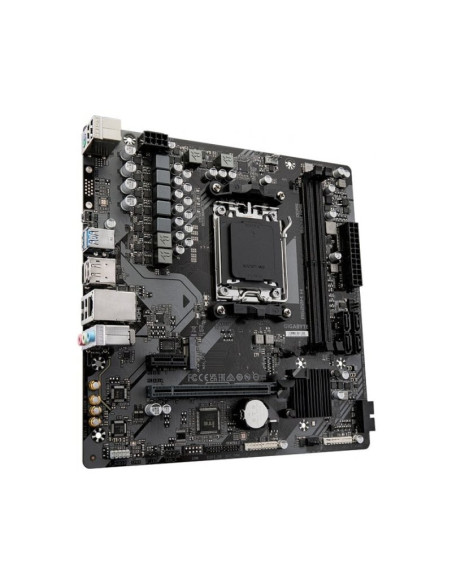

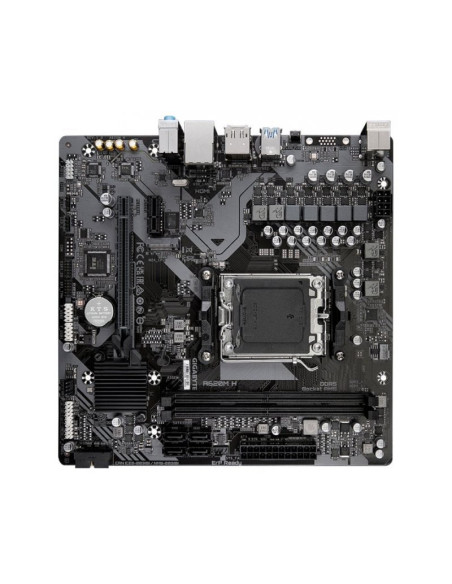

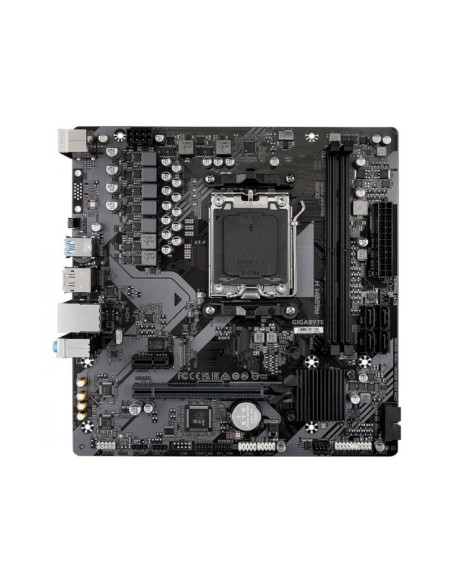

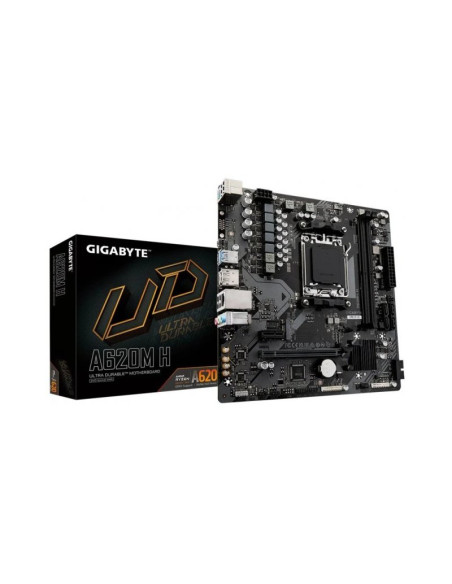

Gigabyte A620M H Micro-ATX AMD Socket AM5

Procesador

• AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

Chipset

• AMD A620

Memoria

• Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Slots

• 1 x PCI Express x16 slot, integrated in the CPU
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Gráficos

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Almacenamiento

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB 2.0/1.1 port on the back panel
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Conectividad y redes

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Conectores Internos

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x Clear CMOS jumper

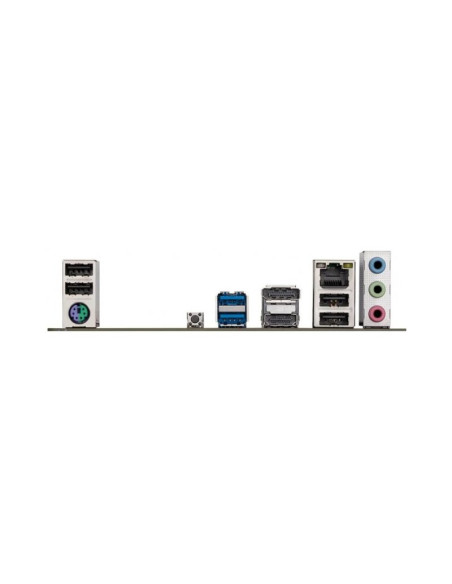

Conectores Traseros

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x DisplayPort
• 1 x HDMI port
• 1 x RJ-45 port
• 3 x audio jacks

Factor de forma

• Micro-ATX (23x22.5cm)

Más información en la web del fabricante: https://www.gigabyte.com/es/Motherboard/A620M-H-rev-10/sp#sp
