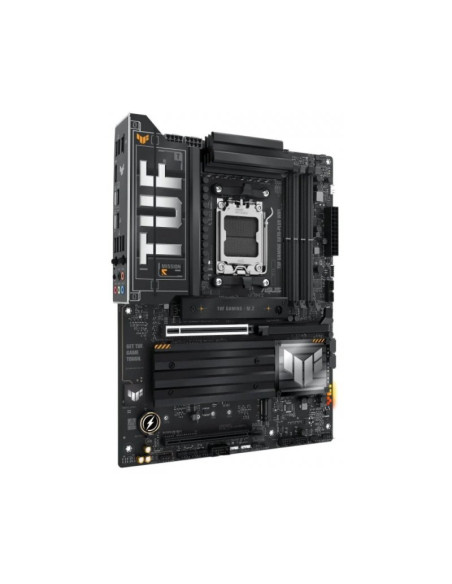

Asus TUF Gaming X870-Plus WiFi ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memoria

• 4 x DIMM slots, max. 192GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
• ECC and Non-ECC, Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0 x16 slot (supports x16 mode)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• 1 x PCIe 4.0 x16 slot (supports x4 mode)

Gráficos

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Almacenamiento

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot not support
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 2 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connectors
• 4 x M.2 slots (Key M)
• 2 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

Conectores Traseros

• 2 x USB4® (40Gbps) (2 x USB Type-C®) ports
• 3 x USB 10Gbps ports (3 x Type-A)
• 4 x USB 5Gbps ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX (30.5 x 24.4 cm)
