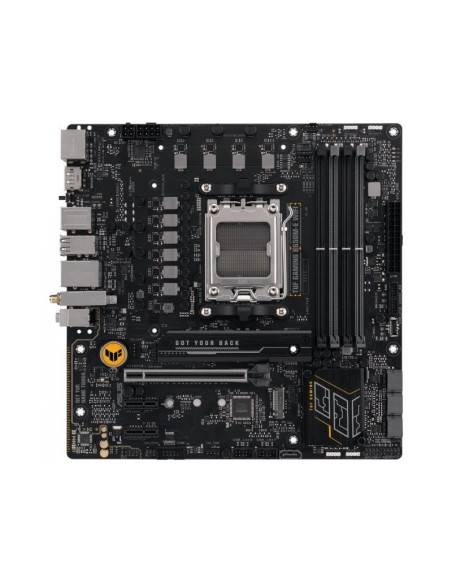

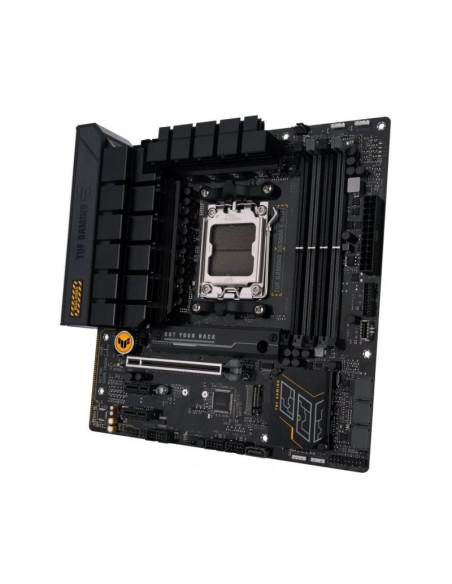

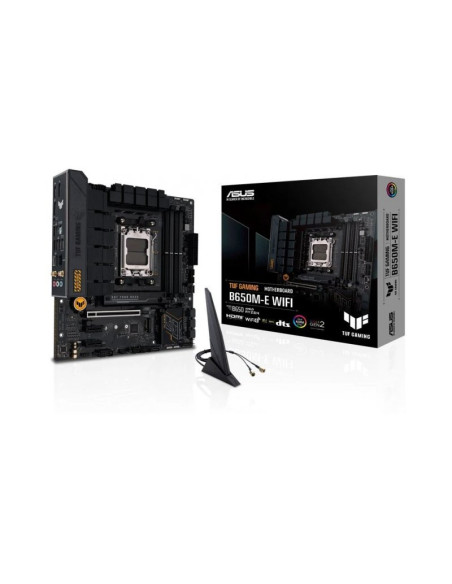

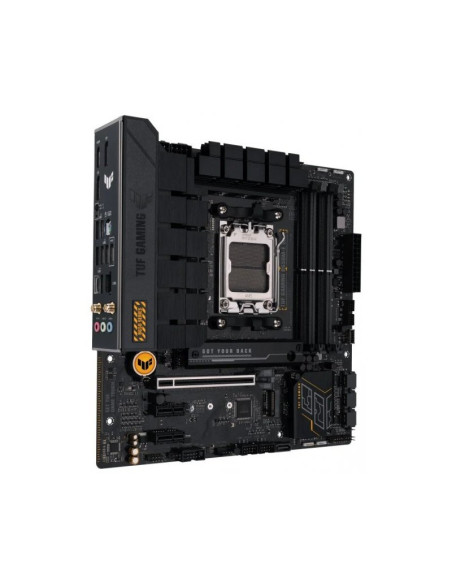

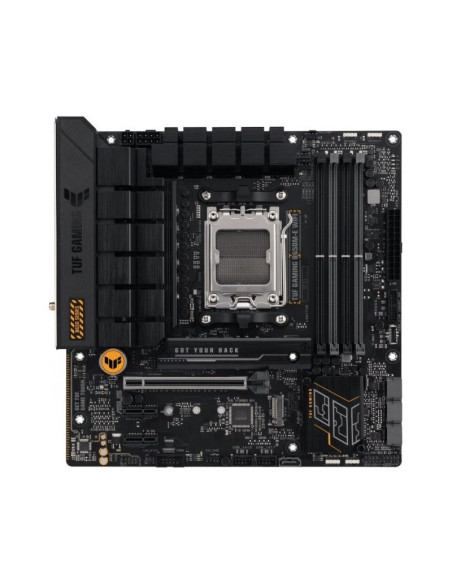

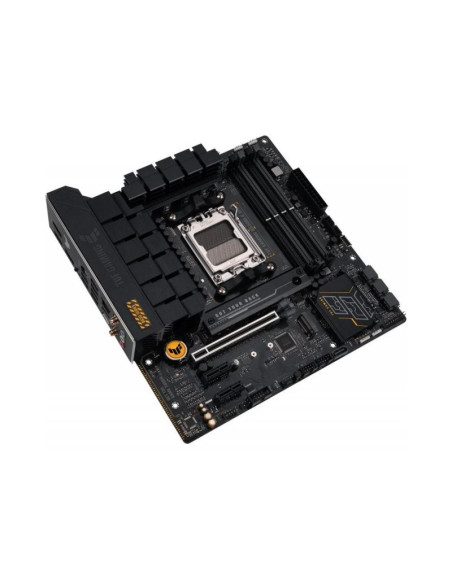

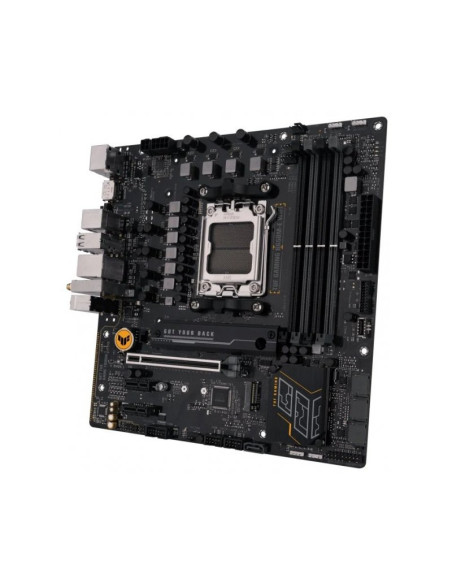

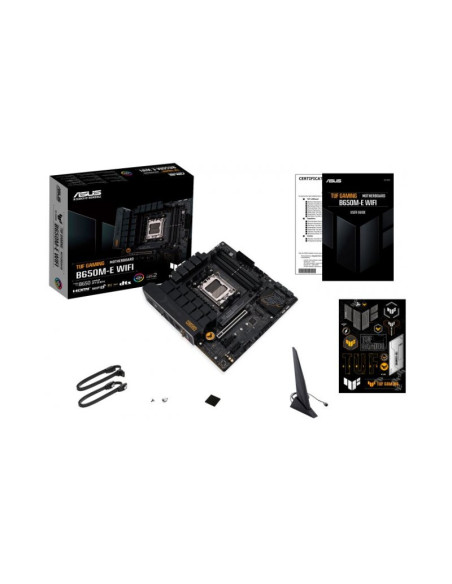

Asus TUF Gaming B650M-E WiFi Micro-ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

Chipset

• AMD B650

Memoria

• 4 x DIMM slots, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II

Slots

• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 4.0 x1 slots

Gráficos

• 2 x DisplayPort
• 1 x HDMI

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.2

Conectores Internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 2 x 4-pin Chassis Fan headers
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function

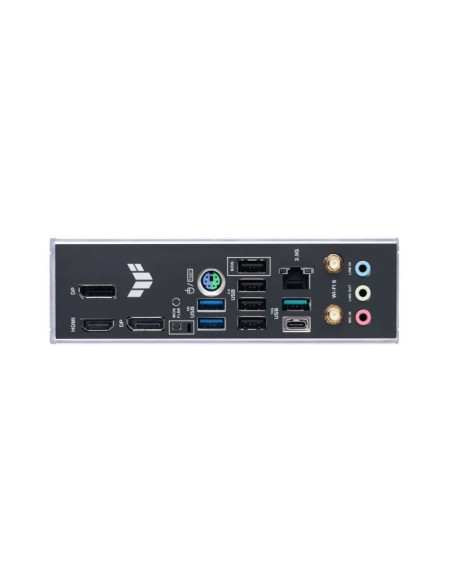

Conectores Traseros

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C®)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• micro-ATX (24.4 cm x 24.4 cm)

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650m-e-wifi/techspec/
