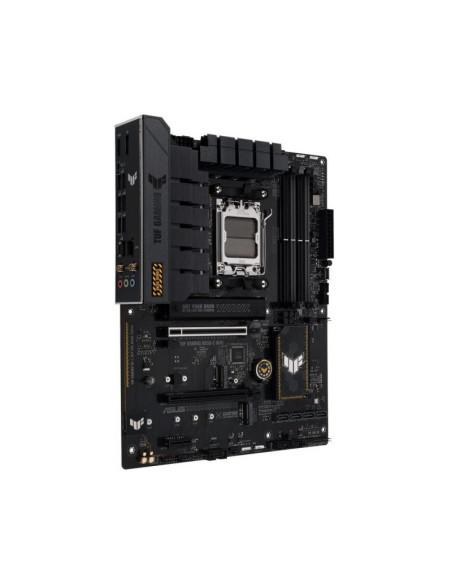

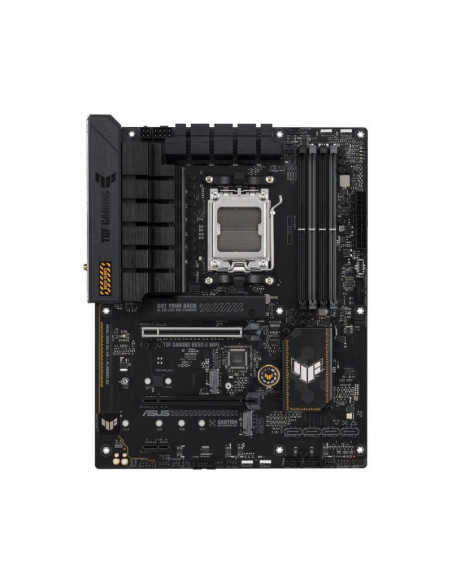

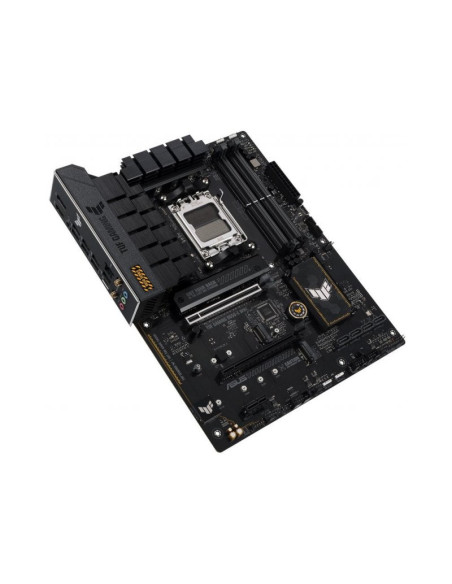

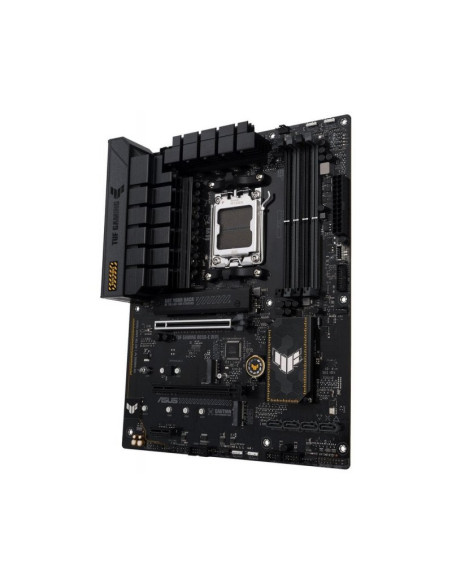

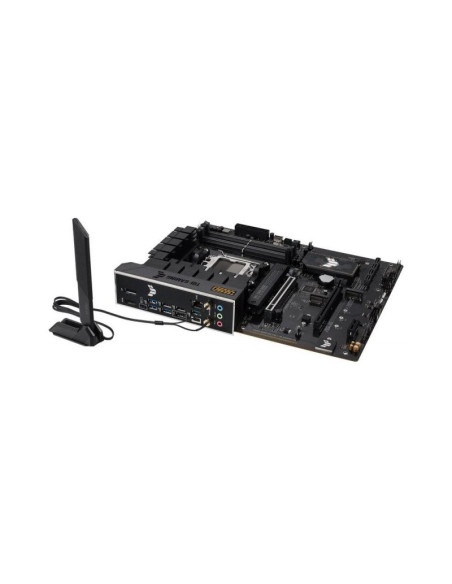

Asus TUF Gaming B650-E WiFi ATX AMD Socket AM5

Procesador

• AM5

Chipset

• AMD B650

Memoria

• 4 x DIMM, máx. 192 GB, DDR5
• 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)
• /6200(OC)/6000 (OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC y no ECC, memoria sin búfer*
• Arquitectura de memoria de doble canal
• Admite perfiles extendidos AMD para overclocking (EXPO™)
• OptiMem II

Slots

• 1 x PCIe 4.0/3.0 x16 slot(s)
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
• 1 x PCIe 4.0/3.0 x1 slots

Gráficos

• 1 x DisplayPort
• 1 x HDMI port

Almacenamiento

• 3 x M.2 slots
• 4 x SATA 6Gb/s ports

USB

• 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
• 3 x USB 5Gbps port(s) (3 x Type-A)
• 3 x USB 2.0 port(s) (3 x Type-A)
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover

Conectividad y redes

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3

Conectores Internos

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 4 x 4-pin Chassis Fan header(s)
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
• 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
• 3 x Addressable Gen 2 header(s)
• 1 x Aura RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 20-3 pin System Panel header with Chassis intrude function

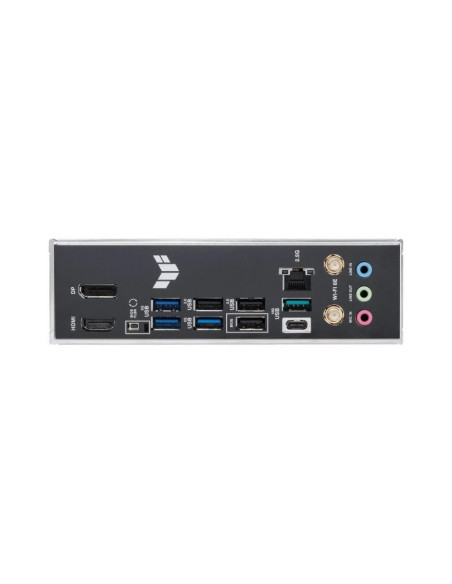

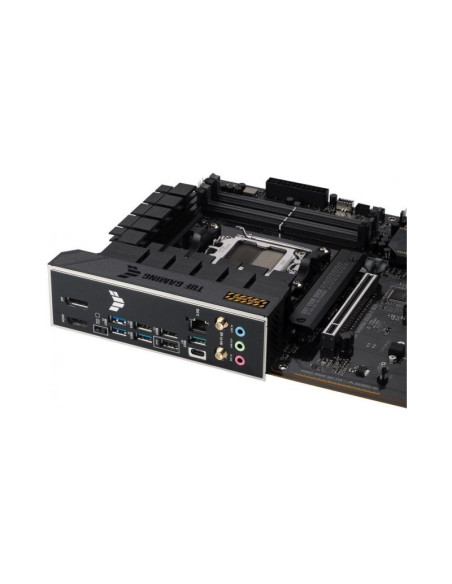

Conectores Traseros

• 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
• 3 x USB 5Gbps port(s) (3 x Type-A)
• 3 x USB 2.0 port(s) (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Factor de forma

• ATX ( 30.5 cm x 24.4 cm )

Más información en la web del fabricante: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650-e-wifi/techspec/
