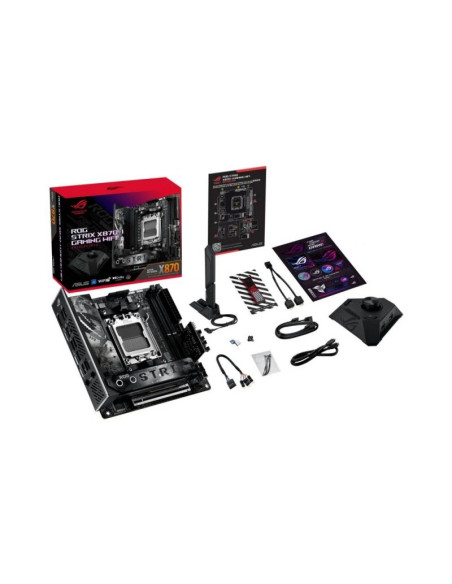

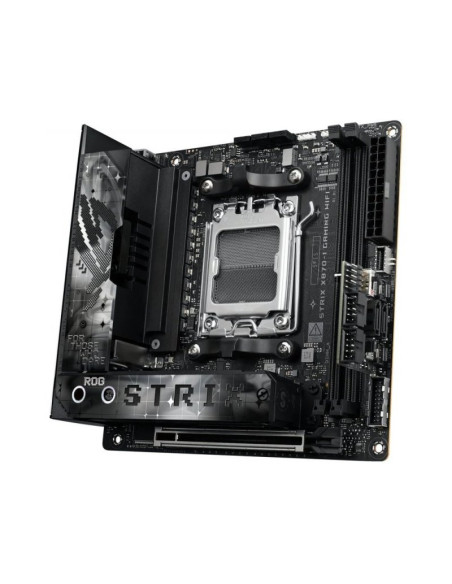

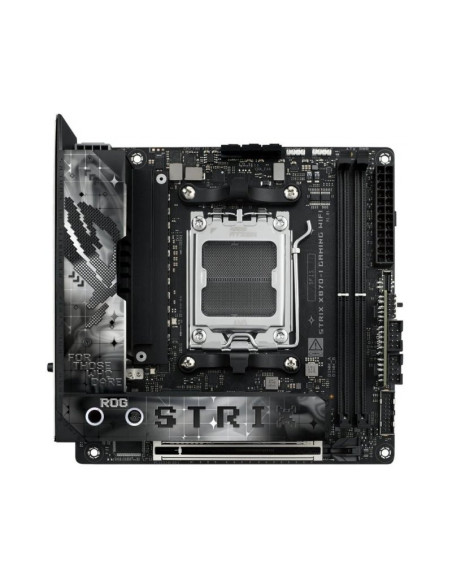

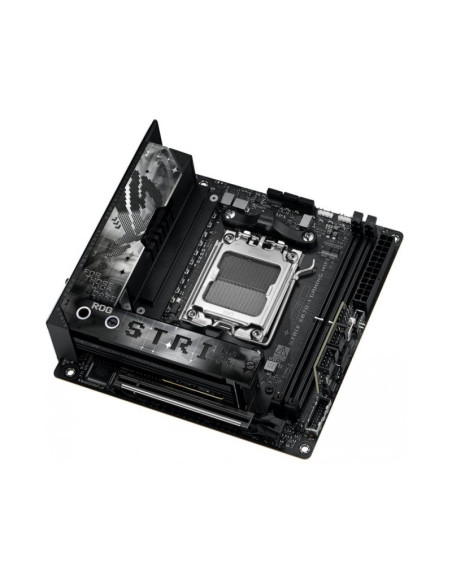

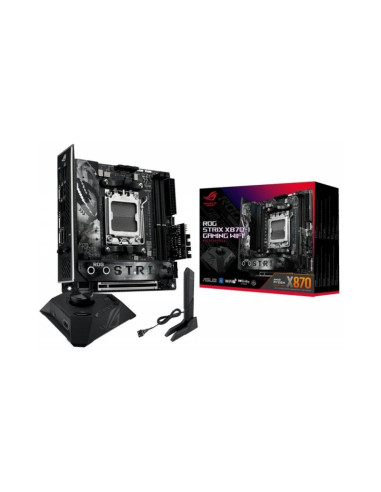

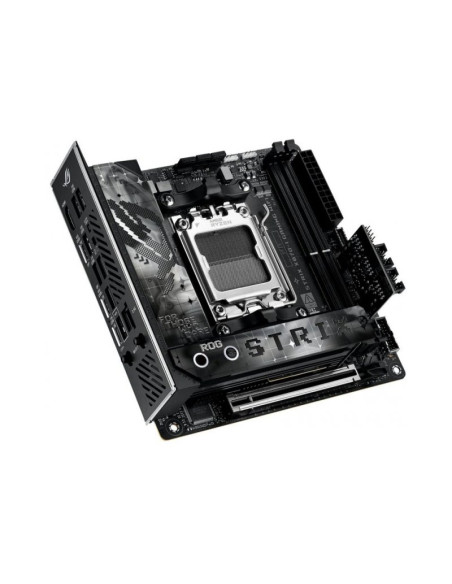

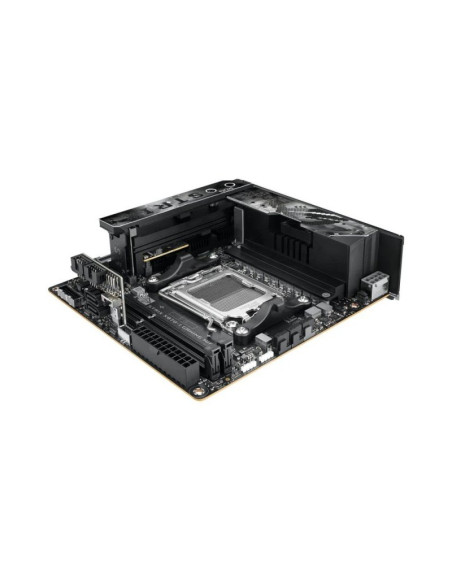

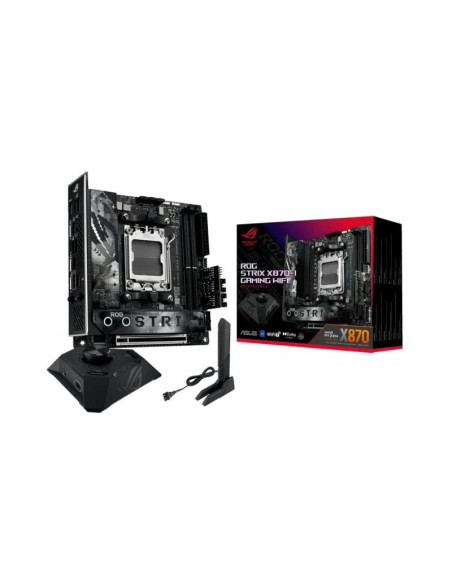

Asus ROG Strix X870-I Gaming WiFi Mini-ITX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870

Memoria

• 2 x DIMM slots, max. 96GB, DDR5
• Supports up to 8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
• Supports up to 8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
• Supports up to 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
• ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 1 x PCIe 5.0/4.0/3.0 x16 slot(s)

Gráficos

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Almacenamiento

• M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
• 2 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)
• 3 x USB 2.0 port(s) (3 x Type-A)
• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)
• 2 x USB 2.0 headers additional 3 USB 2.0 ports

Audio

• ROG Strix Hive II Audio Features
• ROG Hyper-Grounding Technology
• E3 DAC
• Silver-plated audio jacks
• Dedicated audio PCB layers

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
• Bluetooth® v5.4

Conectores Internos

• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 1 x 4-pin Chassis Fan header(s)
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• 2 x M.2 slots (Key M)
• 1 x USB 10Gbps connector (supports USB Type-C® )
• 1 x USB 5Gbps header support(s) 2 additional USB 5Gbps ports
• 2 x Addressable Gen 2 headers
• 1 x 2-pin Power Button header
• 1 x Thermal Sensor header
• 2 x USB Type-C® connectors to install ROG FPS card
• 2 x SATA 6Gb/s ports
• 1 x CPU Over Voltage jumper
• 1 x Front Panel header
• 1 x Alteration PCIe Mode switch
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

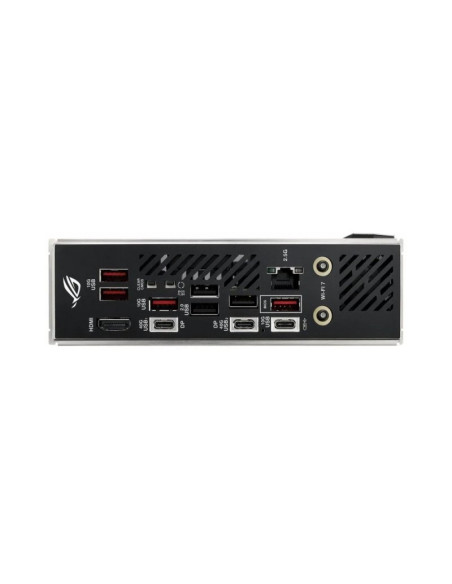

Conectores Traseros

• 2 x USB4® (40Gbps)(2 x USB Type-C®)
• 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II)
• 3 x USB 2.0 port(s) (2 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• Mini-ITX (17x17cm)
