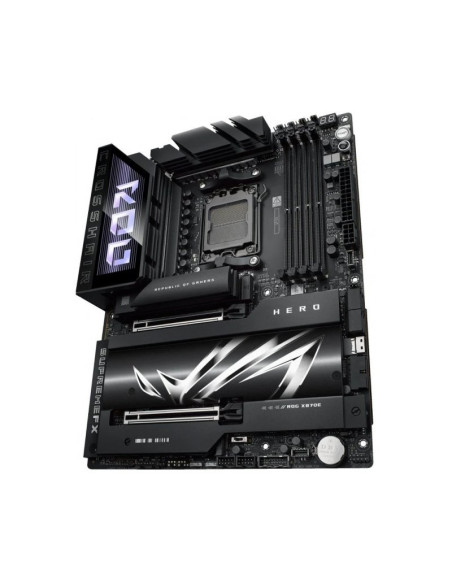

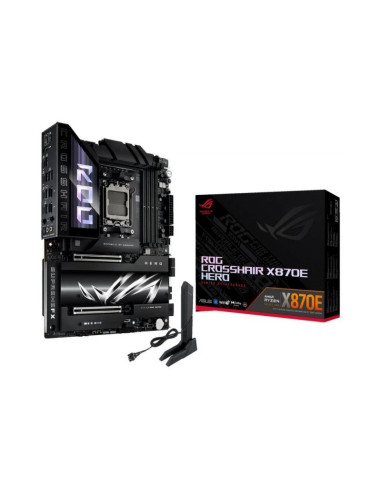

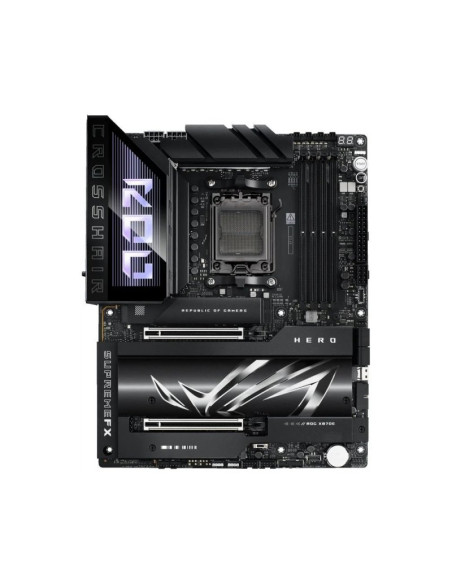

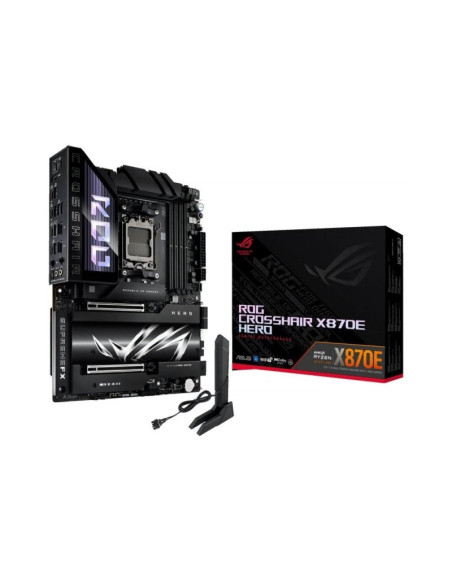

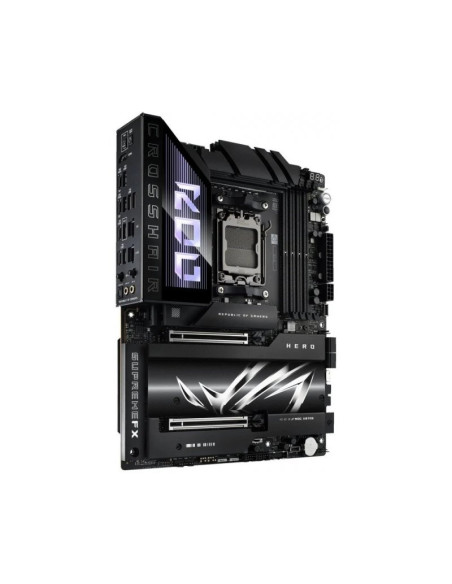

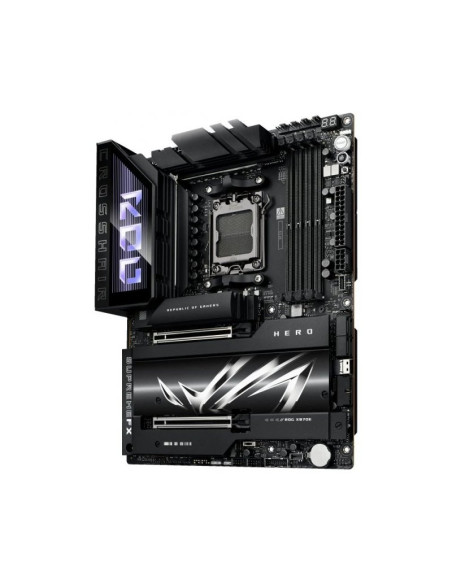

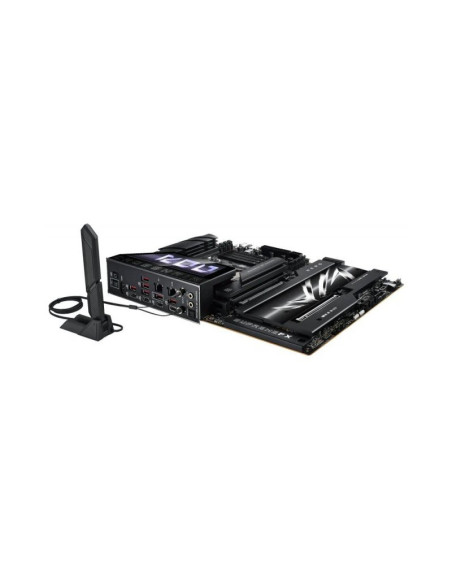

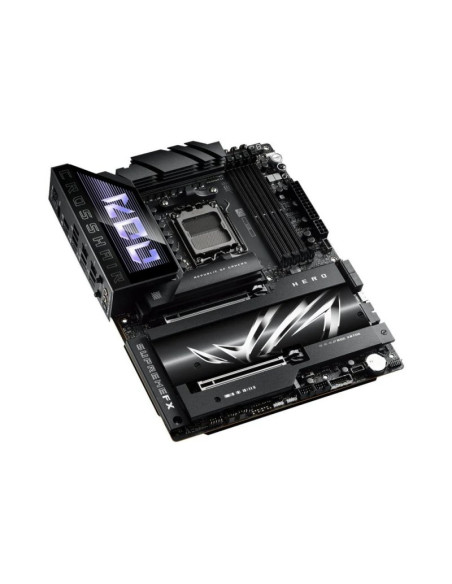

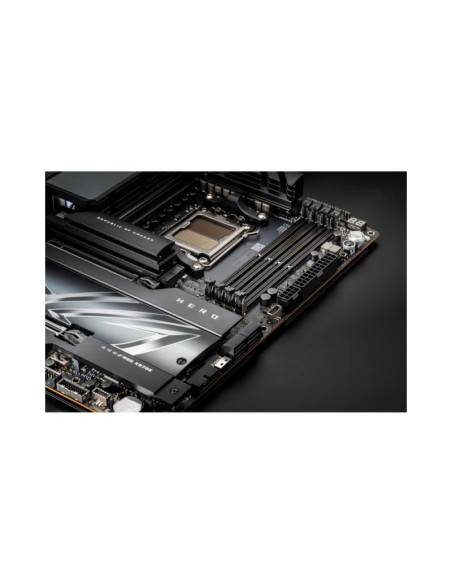

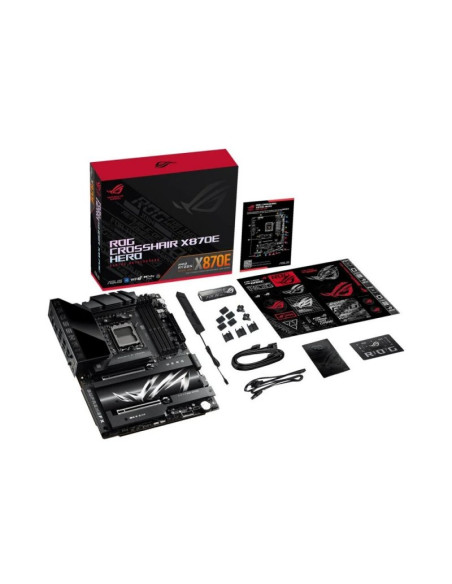

Asus ROG Crosshair X870E Hero ATX AMD Socket AM5

Procesador

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

• AMD X870E

Memoria

• 4 x DIMM slots, max.192GB, DDR5
• Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors
• Supports up to 8600+MT/s(OC) with Ryzen™ 8000 Series Processors
• Supports up to 8000+MT/s(OC) with Ryzen™ 7000 Series Processors
• ECC and Non-ECC, Un-buffered Memory
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• NitroPath DRAM Technology
• ASUS Enhanced Memory Profile (AEMP)

Slots

• 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes)
• 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x8, PCIEx16_2 will be disabled)
• 2 x PCIe 4.0 x16 slots (only supports PCIEx16_1 & total bandwidth for x4, PCIEx16_2 will be disabled)

Gráficos

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Almacenamiento

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
• M.2_3 slot (Key M), type 2242/2260/2280 (Not supports)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• SlimSAS slot supports PCIe 4.0 x4 mode.
• 4 x SATA 6Gb/s ports

USB

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
• 1 x USB 20Gbps (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 20Gbps connector (supports USB Type-C®)
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082

Conectividad y redes

• 1 x Intel® 2.5Gb Ethernet
• 1 x Realtek 5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
• Bluetooth® v5.4

Conectores Internos

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• 1 x 8-pin PCIe Power connector
• Storage Related
• 5 x M.2 slots (Key M)
• 1 x SlimSAS connector
• 4 x SATA 6Gb/s ports
• USB
• 2 x USB 20Gbps connectors (support USB Type-C® )
• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Alteration PCIe mode switch
• 1 x FlexKey button
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header
• 1 x LN2 Mode jumper

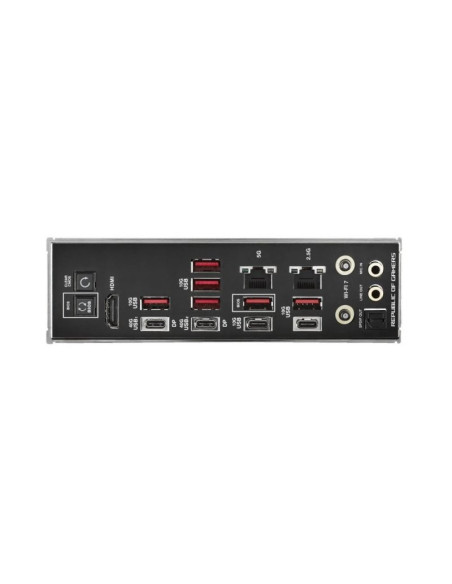

Conectores Traseros

• 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
• 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x Realtek 5Gb Ethernet port
• 2 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

Factor de forma

• ATX (30.5 x 24.4cm)
